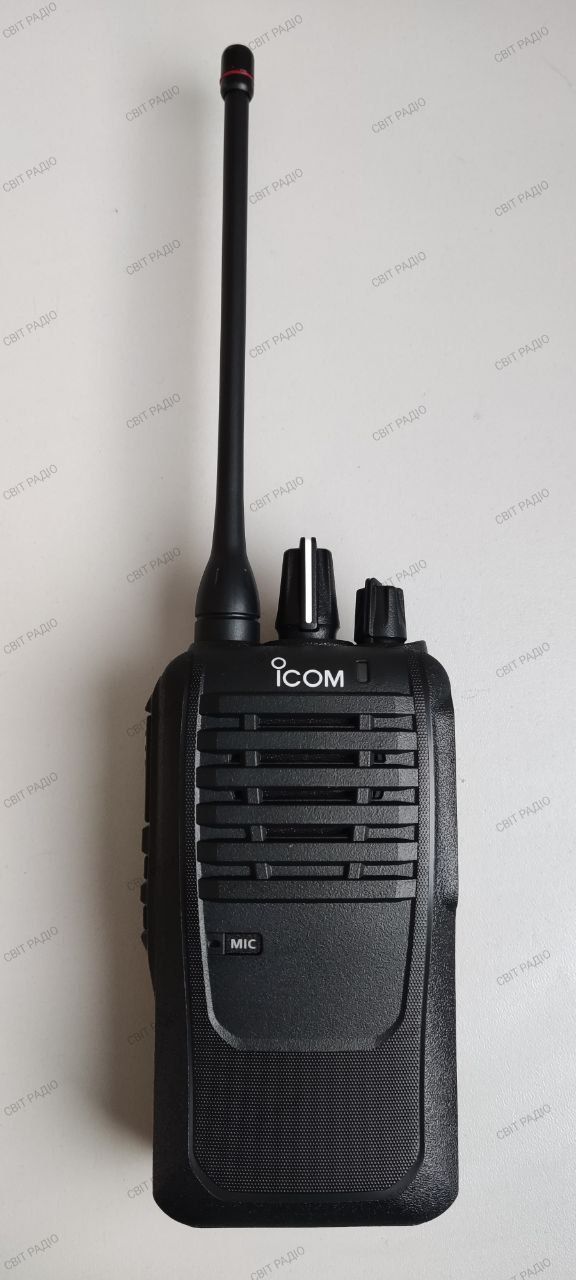

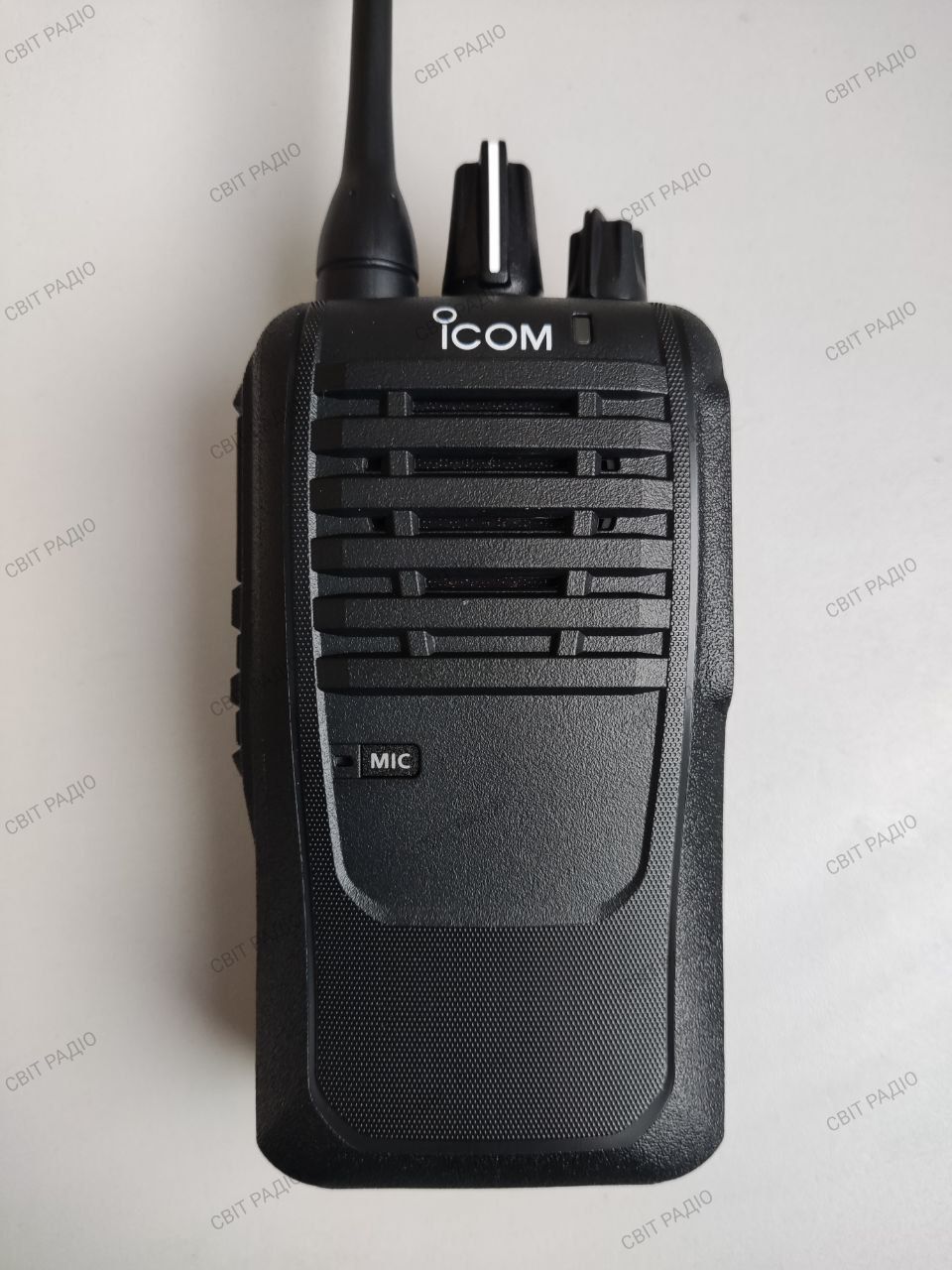

Icom IC-F4003 UHF радіостанція портативна
- Доставка "Укрпошта"
- СамовивізБезкоштовно
- Доставка "Самовивіз"
- Доставка "Нова Пошта". Безкоштовно при вартості замовлення від 100000 грн.
- Оплата по реквізитам
- На платіжну карту
- Безготівкойвий розрахунок (Юр. особи)
- Електронні платежі
Simple operation for instant communication
The IC-F4003 series is so easy to use there’s no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action – even while wearing gloves.
Easy to hear in noisy areas
The radio provides 1500 mW* loud and clear audio with Icom custom high power handling capacity speaker. Clear communication is available even in noisy environments.
* Typical with internal speaker
Optional 1500 mW Speaker-Microphone, HM-222HLWP*
The combination of the optional HM-222HLWP and the IC-F4003 series* also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.
* For the transceiver with a "U" mark on the serial number label.
Longer operating time
A new high efficiency FET of the IC-F4003 series reduces consumption current and provides up to 22 hours* of operating time with the BP-298, 2250 mAh (typical) supplied battery pack.
*Tx:Rx:Standby=5:5:90. Power save function ON.
Weather resistant, dust protection, military rugged
While the radio is a compact unit with a height of only 111 mm, the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MILSTD- 810 environmental tests. In short, the IC-F4003 series is built rugged!
Internal VOX capability for hands-free operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004LA can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Selective calling, quiet stand-by and more
2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.
Other Features
- DTMF autodial
- CTCSS/DTCS encoder/decoder
- BIIS PTT ID transmission
- MDC PTT ID and emergency
- Low battery alert
- 2-step power save
- PC programmable
- Time out timer
- Talk around function
- Lone worker function
- Enhanced emergency
- 3-color LED
- Surveillance function
General
| IC-F4003 | ||||
|---|---|---|---|---|
| Frequency range (Varies according to version) |
|
450–520 MHz |
||
| Number of memory channels |
16 channels |
|||
| Type of emission |
11K0F3E/16K0F3E |
|||
| Channel spacing |
12.5 kHz/25 kHz |
|||
| Power supply requirement | 7.2 V DC | |||
| Current drain (approximate) |
Tx | High |
|
1.6 A |
| Rx | Stand-by |
|
70 mA |
|
| Max. audio |
500 mA (Internal SP) |
|||
| Antenna impedance | 50 Ω | |||
| Operating temperature range | –30°C to +60°C, –22°F to +140°F (Radio only) | |||
| Dimensions (W×H×D) (Projections are not included) |
58×111×35.5 mm, |
|||
| Weight (approximate) |
265 g, 9.3 oz (With BP-298) |
|||
Transmitter
| IC-F4003 | ||
|---|---|---|
| RF output power (at 7.2V DC) |
5 W, 2 W, 1 W (Hi, L2, L1) |
|
| Max. frequency deviation | ± 5.0 kHz/±2.5 kHz (Wide/Narrow) | |
| Frequency stability |
±2.5 ppm |
|
| Spurious emissions |
70 dB minimum |
|
| Residual modulations | 53/48 dB typical (Wide/Narrow) |
|
| Audio harmonic distortion (AF 1 kHz 40% deviation) |
1.0%/1.5% typical |
|
Receiver
| IC-F4003 | |||
|---|---|---|---|
| Sensitivity (at 12dB SINAD) |
0.25dBμV typical |
||
| Adjacent channel selectivity (W/M/N) |
|
73 dB/65 dB typical |
|
| Spurious response rejection |
70dB minimum |
||
| Intermodulation rejection |
|
74 dB typical |
|
| AF output power (at 5% distortion 8Ω load ) |
Internal SP |
1500 mW typical |
|
| External SP |
400 mW typical (single end) |
||
* For the transceiver with "U" make on the serial number label.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | |||
|---|---|---|---|
| Simple explanation (radio specifications are not changed after each test) |
|||
| Low Pressure |
500.5 |
I, II |
Keep the transceiver 20℃/101.3 kPa and 25℃/57.2 kPa for a total of 7 hours |
| High Temperature |
501.5 |
I, II |
Keep the transceiver between 30 to 63℃ for a total of 168 hours |
| Low Temperature |
502.5 |
I, II |
Keep the transceiver at -25℃ for 4 hours |
| Temperature Shock |
503.5 |
I-C |
Keep the transceiver at -51℃/2 h and +71℃/2 h × 3 cycles (total 12 hours) |
| Solar Radiation |
505.5 |
I |
Keep the transceiver at 49℃ and 1120 W/m2 for 24 h × 3 cycles (for a total of 72 hours) |
| Rain Blowing/Drip |
506.5 |
I, III |
I : Blast 1.7 mm/min rain with 18 m/s wind for 30 min to 6 surfaces (for a total of 180 min) III: Drip water 2800 l/m2/h for 15 min. |
| Humidity |
507.5 |
II |
Keep the transceiver at 95% humidity with 30℃ and 60℃ for 240 hours. |
| Salt Fog |
509.5 |
- |
Spray 5% salt water with 1-3 ml/h at 80 cm 2 under 35℃/95% condition for 24 hours then dry it under 24℃/50% condition × 2 cycles |
| Dust Blowing |
510.5 |
I |
Blowing talc powder Temp/time: 23℃/6 h and 60℃/6 h, humidity: less than 30%, wind speed: 8.9 m/s, powder density: 10 ±7 g/m3 |
| Vibration |
514.6 |
I | Vibrate the transceiver at each 3 axis (X, Y, Z), frequencies 5 – 500 Hz, 1.05 G for 1 hour |
| Shock |
516.6 |
I, IV |
When packing, drop 1.22 m height for 6 surfaces, 8 corners, 12 edges (total 26 drops) |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard
| Dust & Water |
IP54 (Dust-protection and water resistant) |
|---|
All stated specifications are subject to change without notice or obligation.

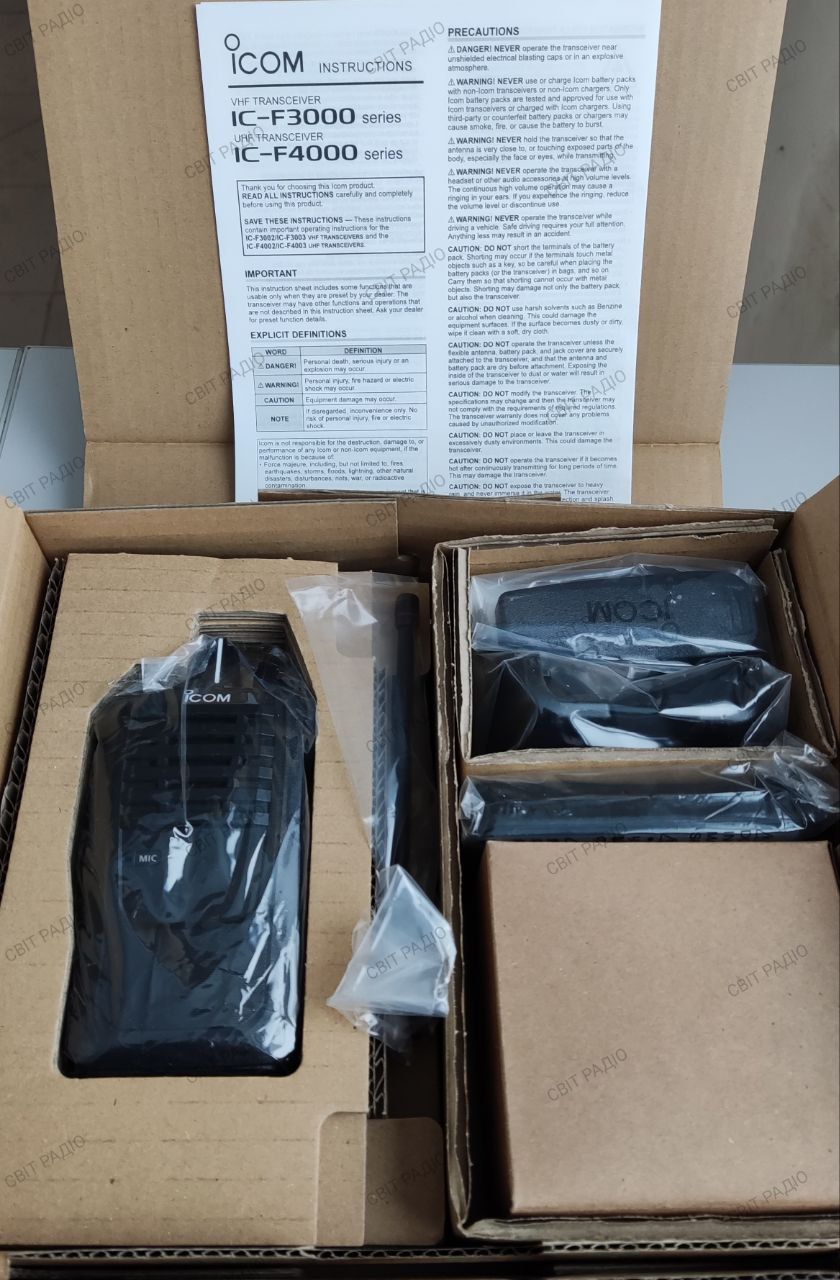

Supplied Accessories
- BP-298, Battery pack
- BC-240, Desktop charger
- BC-242, AC adapter
- MB-124, Belt clip
- Antenna
-
Вихідна потужність:4 Вт / 1 Вт
-
Кількість каналів:16
-
Діапазон частот:400-470 МГц
-
Режим роботи:Аналог
-
Ємність акумулятора:2250 мАг
-
Пило- вологозахист:IP54
-
Відповідність міжнародним стандартам:MIL-STD-810G
