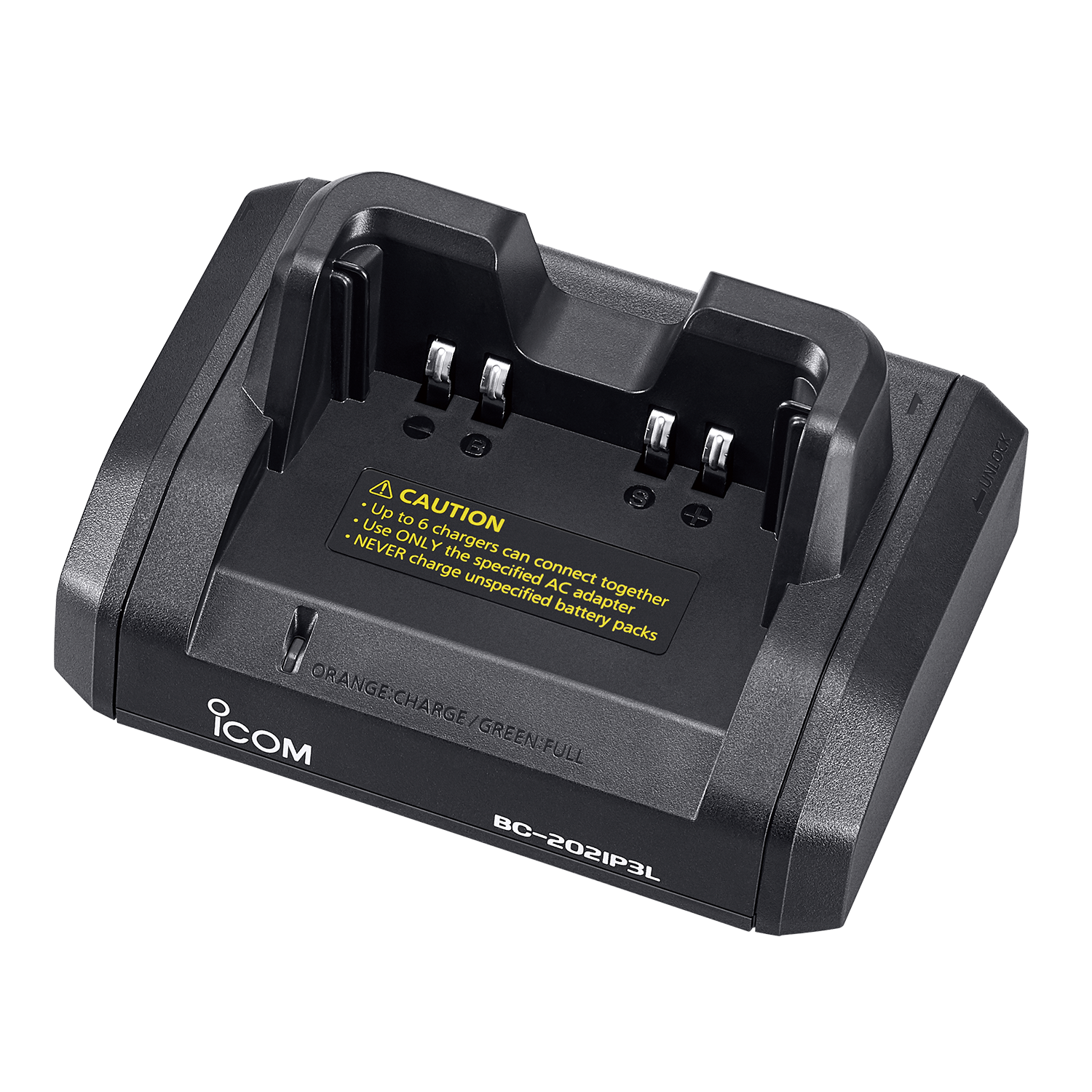

The BC-202IP3L is a new multi-connectable rapid charger for Icom’s range of IP/LTE radios and selected Amateur radio products.
The BC-202IP3L charging pod can not only be used to charge one radio, it can also be connected to form a multi charger with a combination of 2, 3, 4, 5 or 6 pods. By simply sliding off the sides of each pod, you can slot them together in a daisy chain via pin connectors on each charger providing a strong, sturdy product.
The BC-202IP3L allows users to quickly charge the BP-271, BP-272 lithium-ion batteries and the forthcoming BP-307 large high capacity 7.2V / 3350mAh (typ.) li-Ion battery pack.
The BC-202IP3L can be used with the IP100H, IP501H, IP503H, ID-31E (all versions), ID-51E (all versions), ID-50E, and the new Icom IC-705 QRP SDR transceiver.
*You can use either the CP-25H Cigarette Lighter Cable, BC-06 AC Adapter, BC-123S AC Adapter or BC-242 AC Adapter to power a single unit. When charging two or more, the BC-228 AC adapter must be used.
Specifications
| Charge Current | 675 ｍＡ±10 ％ (at rapid charging) |
|---|---|
| Power Supply Voltage | 12.0 ー 15.0 V DC |
| Operating temperature range | +10℃～+40℃ |
|
Dimensions (W x H x D) |
Single unit: 106.5 x 52.5 x 78.0 mm; 4.2 x 2.1 x 3.1 in 6-unit connected: 542.0 x 52.5 x 78.0 mm; 21.3 x 2.1 x 3.1 in (Projections are not included.) |
| Weight (Approx.) | 120 g; (AC adapter is not included.) |
| Charge Timer | 6.3 Hours (at rapid charging) |
| Current Drain | Less than 0.8 A (Single unit, at 12.0 V DC) |
-
Производство :Япония
-
Виробник:ICOM
-
Тип:Зарядний пристрій
