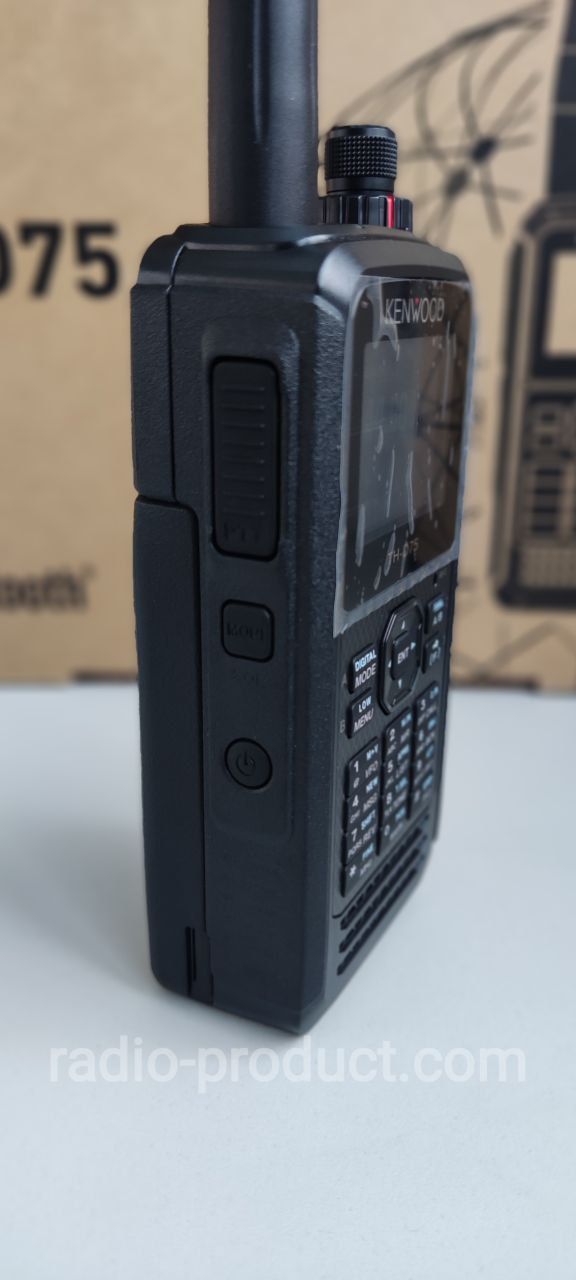

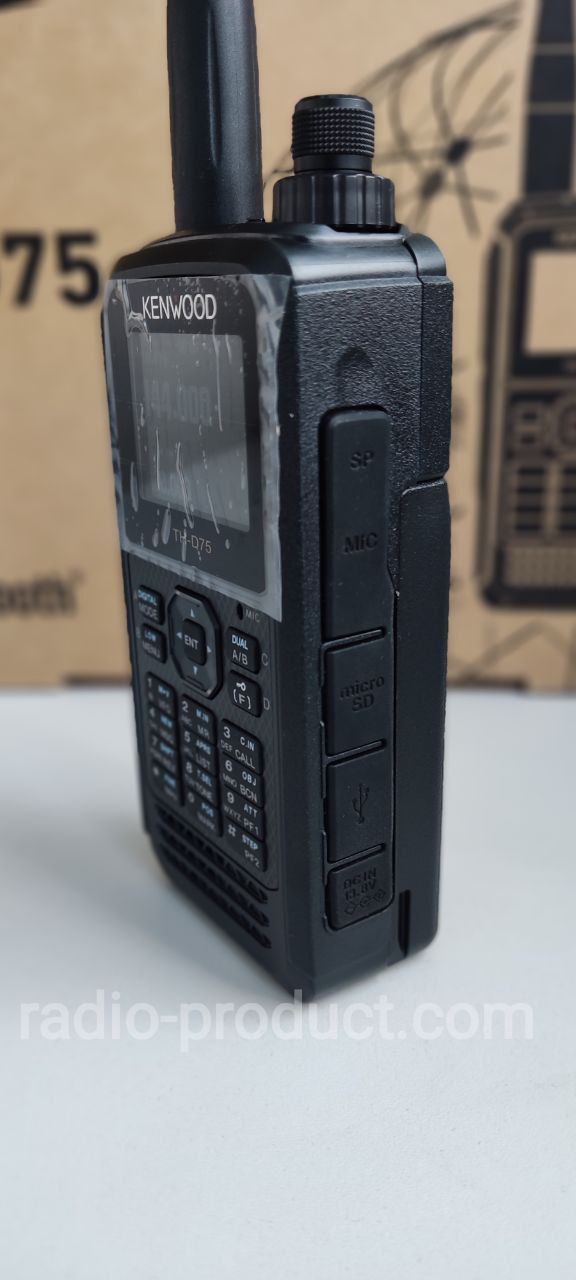

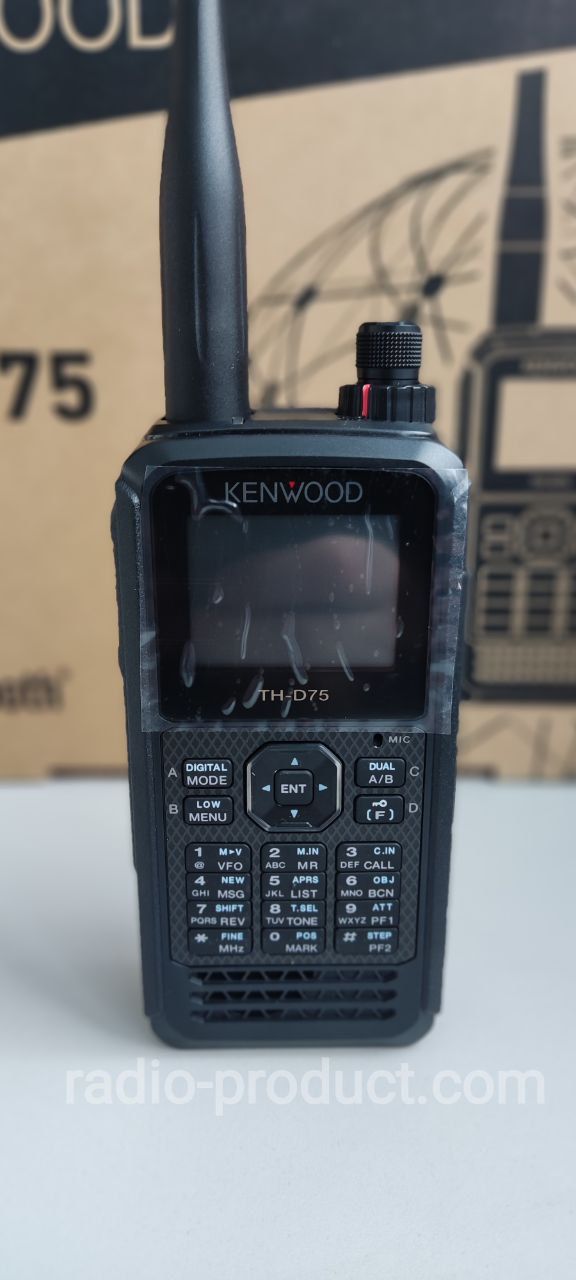

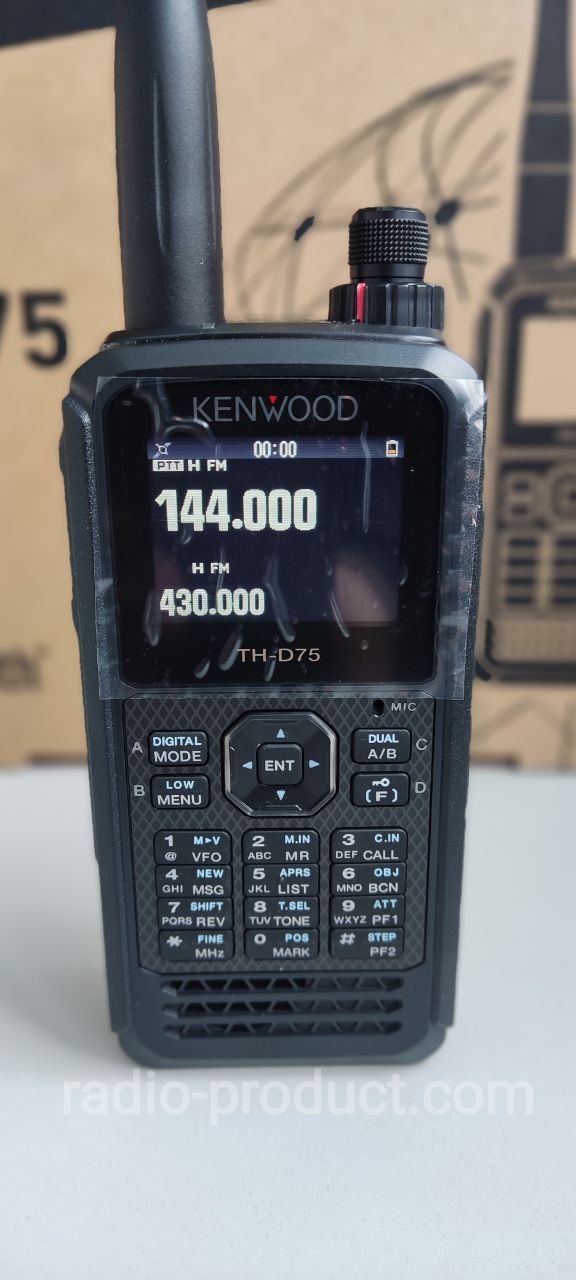

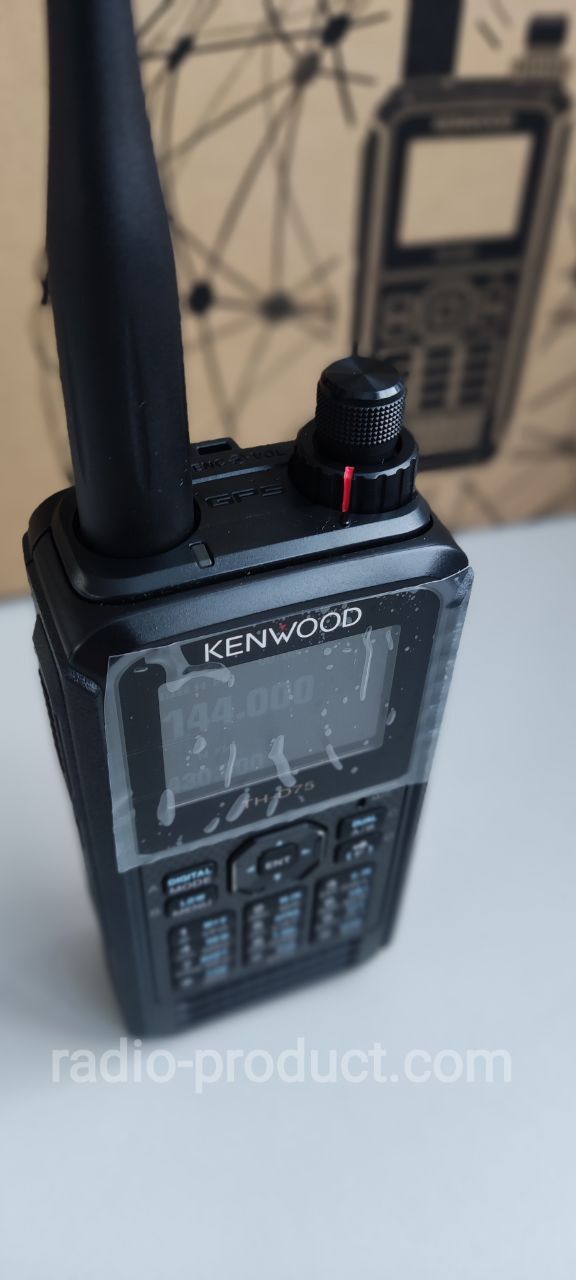

Kenwood TH-D75E радиостанція портативна
Leave review
In stock
Shipping methods
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
Payment methods
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Additional Images
Key Features
| Compatible with the APRS communication protocol, which allows real-time two-way data transmission by using packet communications. The NEW added stand-alone digipeater function enables the TH-D75E to operate as a temporary digipeater station in the fields, allowing APRS coverage to be expanded even in mountainous locations. |
| Compatible with D-STAR amateur radio communications network, developed by the Japan Amateur Radio League (JARL). New is the simultaneous reception of 2 D-STAR signals (one on BAND A, one on Band B). |
| NEW - Reflector Terminal mode for more convenient communications via D-STAR reflectors. |
| Wideband and multimode reception. |
| IF filters for reduced reception interference. |
| IF output mode. |
| Enhanced voice guidance. |
| KENWOOD sound quality. |
| NEW - USB Type-C port. |

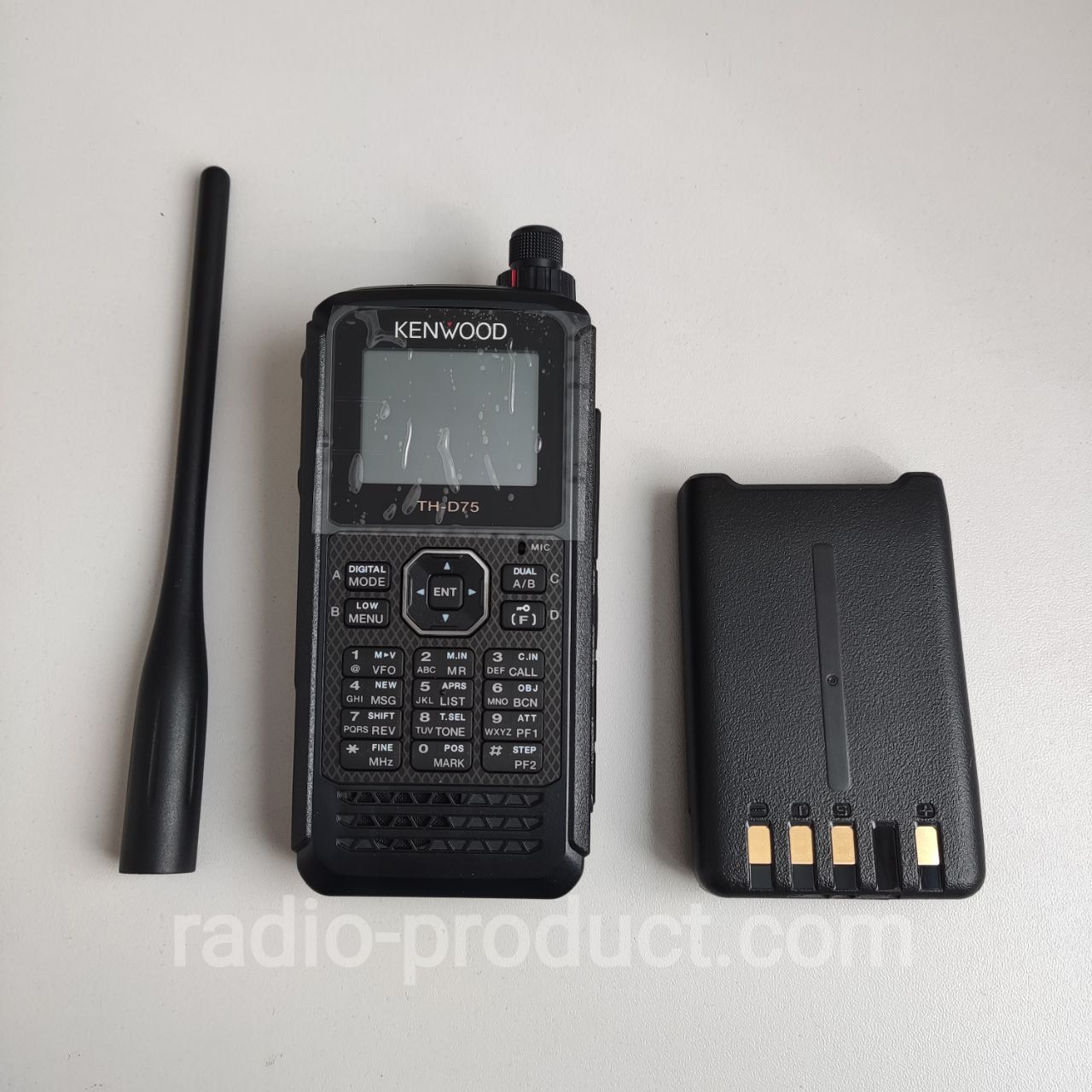

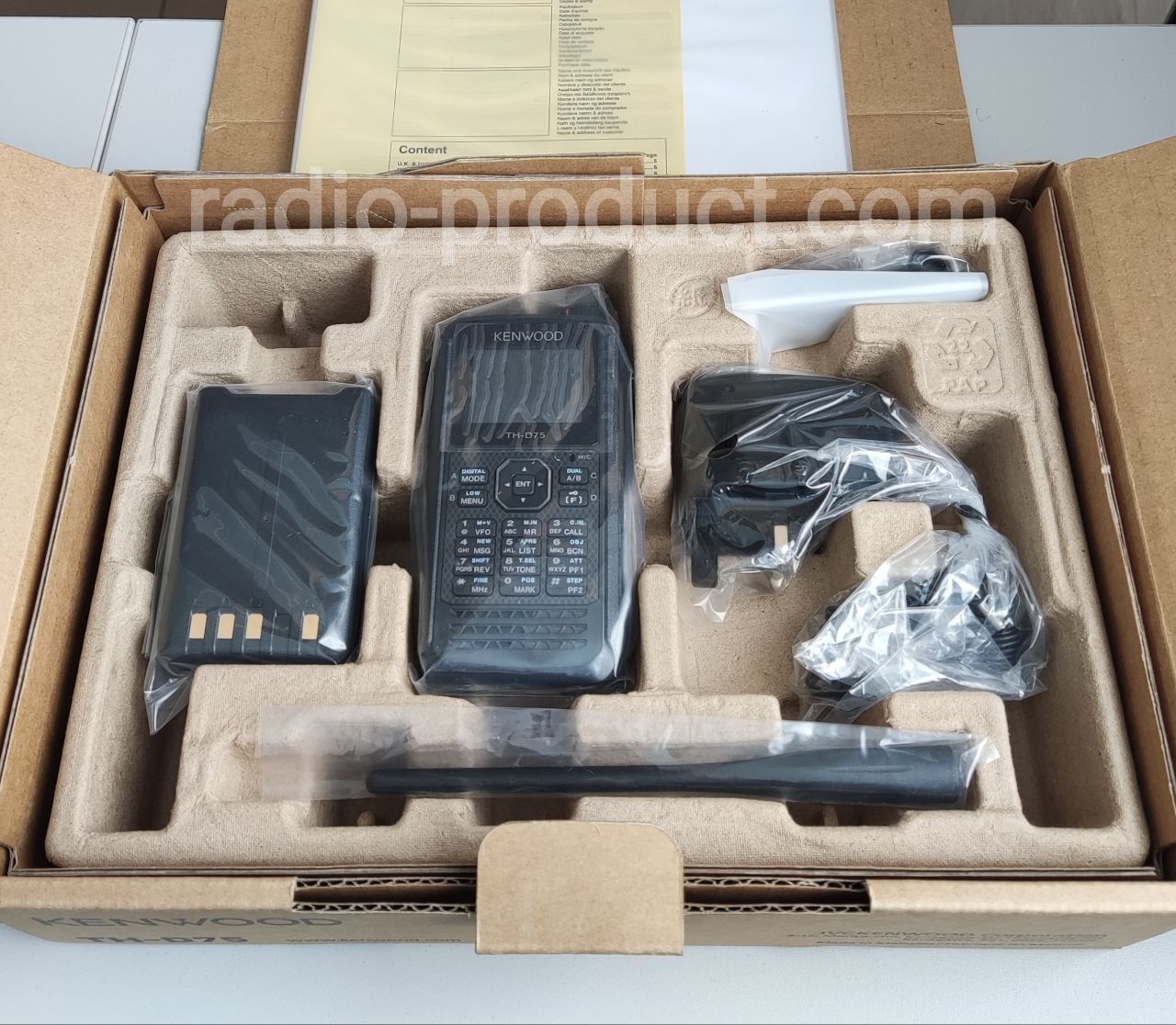

Supplied With
| Antenna | Yes, , Ferrite Bar Antenna suitable for receiving mid- and low-HF bands |

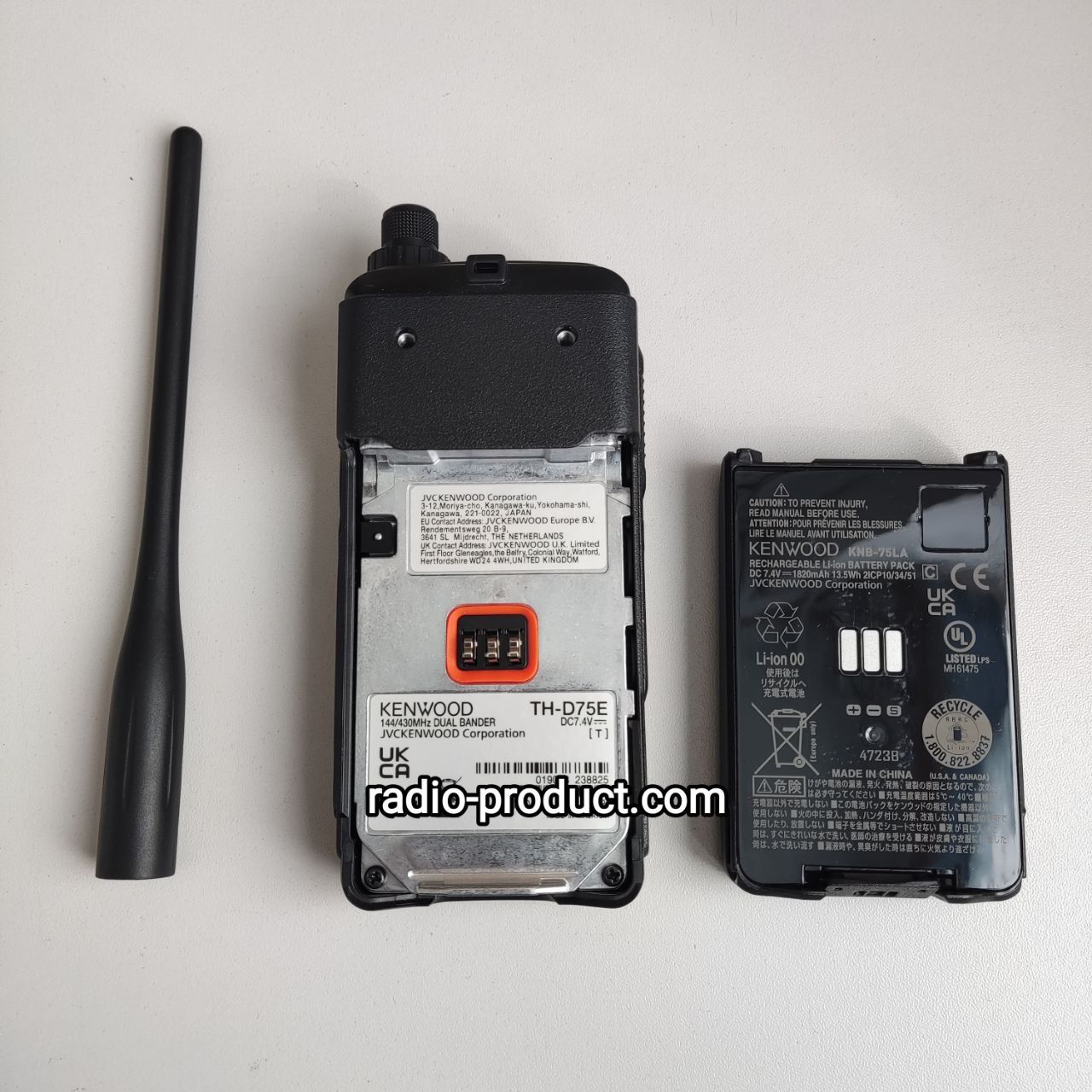

| Battery | Yes, , KNB-75LA - Li-ion battery (1820 mAh) |
| Belt Clip | Yes |
| Charger | Yes, , supplied with UK (3-pin) for T-type and EU (2-pin) for E-type. |
| Instruction Manual | Yes, , Printed "Basic operations" manual in English, German, French, Italian, Spanish & Dutch |
| Screw Set | Yes, , for belt clip |
Amateur Radio General Features
| 1750 Hz Tone Burst Function. | Yes |
| 8.33KHz spacing on Air Band | Yes |
| Alphanumeric LCD Display | Yes |
| Antenna Socket | SMA |
| APRS Function (via built-in TNC) | Yes |
| Auto Power Off | Yes |
| Automatic Repeater Offset (VHF) | Yes |
| Built-in Packet TNC 1200/9600 bps | Yes, , KISS TNC |
| Built-in GPS | Yes |
| Built-in microSD/SDHC | Yes |
| Built-in USB Type-C | Yes, , USB Serial, USB Audio Output, Mass Storage |
| Built-in Bluetooth | Yes, , HSP, SPP |
| Clock | Yes, , Time/Date Function |
| CTCSS Encoder/Decoder | Yes, , Choice of 50 tones |
| CW Band Width | Yes |
| CW Pitch Frequency | Yes |
| CW Reverse | Yes |
| D-STAR | Yes |
| DCS Encoder/Decoder | Yes, , Choice of 104 digital tones |
| Detect Signal Output | Yes |
| Direct Frequency Entry | Yes |
| DTMF Memory | Yes, , 10 channels, 16 digits |
| Dual Receive | Yes, , VHFxUHF, VHFxVHF or UHFxUHF |
| ECHOLINK Memory Dialer Channels | Yes |
| Firmware Upgradeable via USB Port | Yes |
| FM Radio | Yes |
| Front Panel KeyPad | Yes |
| High-Quality Front Speaker | Yes |
| IF 12 kHz Output | Yes, , to USB Audio |
| Key Beep On/Off | Yes |
| Key Lock | Yes |
| LCD Background Color | Yes, , B/W |
| Memory Channel Lock-out | Yes |
| Memory Channels with Alpha-tagging | 1000 Memory Channels |
| Memory Shift Function | Yes |
| Menu System for individual set-up | Yes |
| Meter Type | Yes, , 3 types |
| Monitor Function | Yes |
| Multiple Scan Functions | Yes |
| Multi-scroll Key | Yes |
| Packet Operation - AX25 and KISS Mode | Yes, , KISS mode only |
| PC Programmable Memories | Yes |
| PC Radio Control Program (Option) | Yes |
| Power-On Message | Yes |
| Programmable Function Keys | Yes, , 2 keys (PF1, PF2) |
| QSO Log | Yes |
| RX Audio Equalizer | Yes, , 5 bands |
| Selectable Repeater Offsets | Yes |
| Separate Squelch for A and B Bands | Yes |
| SSB/CW/AM Reception | Yes |
| SSB Hi-cut Filter | Yes |
| AM Hi-cut Filter | Yes |
| Simultaneous 2 frequency RX | Yes |
| Time-Out Timer | Yes |
| TX Audio Equalizer | Yes, , 4 bands |
| TX/RX Audio Recording | Yes, , microSD/SDHC |
| VOX | Yes |
| Voice Message Memory | Yes |
| Voice Guidance | Yes, (Selectable 4 speeds) |
| Wide/Narrow Deviation Selection | Yes |
| Wide Band Reception | Yes |
Amateur Portable Specification
| RF Output Power (approx.) - High | 5 W |
| RF Output Power (approx.) - Mid | 2 W |
| RF Output Power (approx.) - Low | 0.5 W |
| RF Output Power (approx.) - E. Low | 0.05 W |
| Frequency Range - TX - VHF | 144 - 146 MHz |
| Frequency Range - TX - UHF | 430 - 440 MHz |
| Frequency Range - TX | 144 - 146 MHz, 430 - 440 MHz |
| Frequency Range - Band A | 136 - 174 MHz, 216 - 260 MHz, 410 - 470 MHz |
| Frequency Range - Band B | 0.1 - 76 MHz / 108 - 524 MHz |
| Frequency Range - Band B - FM - W | 76 - 108 MHz |
| Number of Channels | Total 1000 Channels |
| Mode | TX: F3E, F2D, F1D, F7W RX: F3E, F2D, F1D, F7W, J3E, A3E, A1A |
| Mode - Band A | F3E, F1D, F2D, F7W |
| Mode - Band B | F3E, F2D, F1D, F7W, A1A, A3E, J3E, F7W |
| Frequency Stability | +/- 2.0 ppm |
| 13.8 V DC-In Facility | Yes, (use PG-2W or PG-3J) |
| Antenna Impedance - 50 Ohm | Yes |
| Microphone Impedance | 2 kOhm |
| Operating Temperature Range | -10 °C to +50 °C with standard battery |
| Operating Voltage | DC-IN: DC 11.0 - 15.9 V (STD: DC 13.8 V) BATT: DC 6.0 - 9.6 V (STD: DC 7.4 V) |
| Receiver Circuitry | F3E, F2D, F1D, F7W: Double Super Heterodyne J3E, A3E, A1A: Triple Super Heterodyne |
| Receiver Intermediate Frequency - Band-A - 1st IF | 57.15 MHz |
| Receiver Intermediate Frequency - Band-A - 2nd IF | 450 kHz |
| Receiver Intermediate Frequency - Band-B - 1st IF | 58.05 MHz |
| Receiver Intermediate Frequency - Band-B - 2nd IF | 450 kHz |
| Receiver Intermediate Frequency - Band-B - 3rd IF | J3E, A3E, A1A: 10.8 kHz |
| Receiver Sensitivity - A & B Bands | Amateur Band FM 12 dB SINAD FM / NFM 144 MHz Band-A: 0.18 / 0.22 uV FM / NFM 144 MHz Band-B: 0.19 / 0.24 uV FM / NFM 430 MHz Band-A: 0.18 / 0.22 uV FM / NFM 430 MHz Band-A: 0.20 / 0.25 uV DV PN9 / GMSK 4.8 kbps, BER 1% 144 MHz Band-A: 0.20 uV / 0.22 uV DV PN9 / GMSK 4.8 kbps, BER 1% 430 MHz Band-B: 0.22 uV / 0.24 uV SSB 10 dB S/N Band-A: 0.16 uV AM 10 dB S/N Band-B: 0.50 uV |
| Receiver Squelch | Band-A: 0.18 uV Band-B: 0.25uV |
| Receiver Spurious Rejection | 144 MHz - Band-A: 50 dB or more 430 MHZ - Band-A: 50 dB or more 144 MHz - Band-B: 45 dB or more 430 MHz - Band-B: 40 dB or more |
| Receiver IF Rejection | Band-A: 60 dB or more Band-B: 55 dB or more |
| Receiver Channel Selectivity | -6 dB: 12 kHz or more -50 dB: 30 kHz or less |
| Receiver Audio Output | 7.4 V, 10% Dist. 400 mW or more / 8 Ohm |
| Transmitter Maximum Frequency Deviation | FM: +/- 5.0 kHz |
| Transmitter Modulation | FM: Reactance Modulation DV: GMSK Reactance Modulation |
| Transmitter Modulation Deviation | FM: +/- 5.0 kHz NFM: +/- 2.5 kHz |
| Transmitter Spurious Emissions | HI / MID: -60 dBc or less L: -50 dBc or less EL: -40 dBc or less |
| Dimensions | W x H x D with KNB-75L: 56.0 x 121.95 x 32.5 mm - Projections not included - |
| Weight (with battery) | with KNB-75L: 340 g (net) |
APRS Features
| Alert on Special Call | Yes |
| APRS Data Output | Yes, , to a PC via the USB Port or Bluetooth |
| Auto Message Reply | Yes |
| Decay Algorithm | Yes |
| Digipeat Function | Yes |
| Message Memory | Yes, , 100 Messages |
| New-N Paradigm | Yes |
| Packet Data Output | Yes, Yes, to a PC via the USB Port or Bluetooth |
| Proportional Pathing | Yes |
| QSY Function | Yes |
| Received Packet Data Pop-ups | Yes |
| Relay Path Display | Yes |
| SmartBeaconing ™ | Yes |
| State/Section /Region Pathing | Yes |
| Station List Memory | Yes, , lists up to 100 Stations, with filtering and sorting options |
| TX Object, Item Packet | Yes |
| User Phrases | Yes |
| Visible Message Notifications | Yes |
D-STAR Features
| DV Mode | Yes |
| DV Fast Mode | Yes, , USB Interface or Bluetooth |
| DR Mode | Yes |
| Communication Mode | Yes |
| Communication Mode - Direct | Yes |
| Communication Mode - Single Repeater | Yes |
| Communication Mode - Zone | Yes |
| Communication Mode - Gateway | Yes |
| Communication Mode - Refrector | Yes |
| Repeater List, Import/Export | Yes |
| Repeater Information | Yes |
| Callsign List, Import/Export | Yes |
| Near Repeater Stattion Select/Scan | Yes |
| Access Repeater Select | Yes |
| Gateway Route Select | Yes |
| Select TO Station | Yes |
| TX Message | Yes |
| GPS TX Mode | Yes |
| GPS Sentense TX Select | Yes |
| GPS Auto TX for Target Station | Yes |
| Detect FM on DV Mode | Yes |
| RX Popup Message | Yes |
| Direct Reply | Yes |
| Standby Beep | Yes |
| Code SQ | Yes |
| Auto Reply | Yes |
| Auto Reply Voice Select | Yes |
| EMR | Yes |
| RX History | Yes |
| TX History | Yes |
| Late Entry Receive | Yes |
| Packet Loss Display | Yes |
| D-STAR RX AFC | Yes |
| Digital Monitor (MONI Key) | Yes |
| Car Chank Display | Yes |
-
Вихідна потужність:5Вт
-
Кількість каналів:1000
-
Стабільність частоти:0,5 ррм
-
Диапазон частот:0,1-524 MHz
-
Режим роботи:SSB/AM/FM/CW/D-Star
