Quansheng TG-UV2 Plus, 10 Вт, портативная рация, радиостанция
Article:
823418729
Top sales
Shipping methods
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
Payment methods
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
TG-UV2PLUS
Amateur radio
Good quality makes communication everywhere Large-capacity battery, high-power output, U/V dual-band, FM broadcast frequency band, is a walkie-talkie good for mountain climbing and self-driving and travelling
U/V dual band
Traditional mainboard
Large capacity lithium battery
Strong penetration
Overview
Details
Dual Band
With dual band, dual watch while receiving and transmitting
Jacklight
With jacklight function, easy use in the dark
Menu
Micro computer manageable, easy to use, simple operation
Power
Output Power 5W , with better penetration

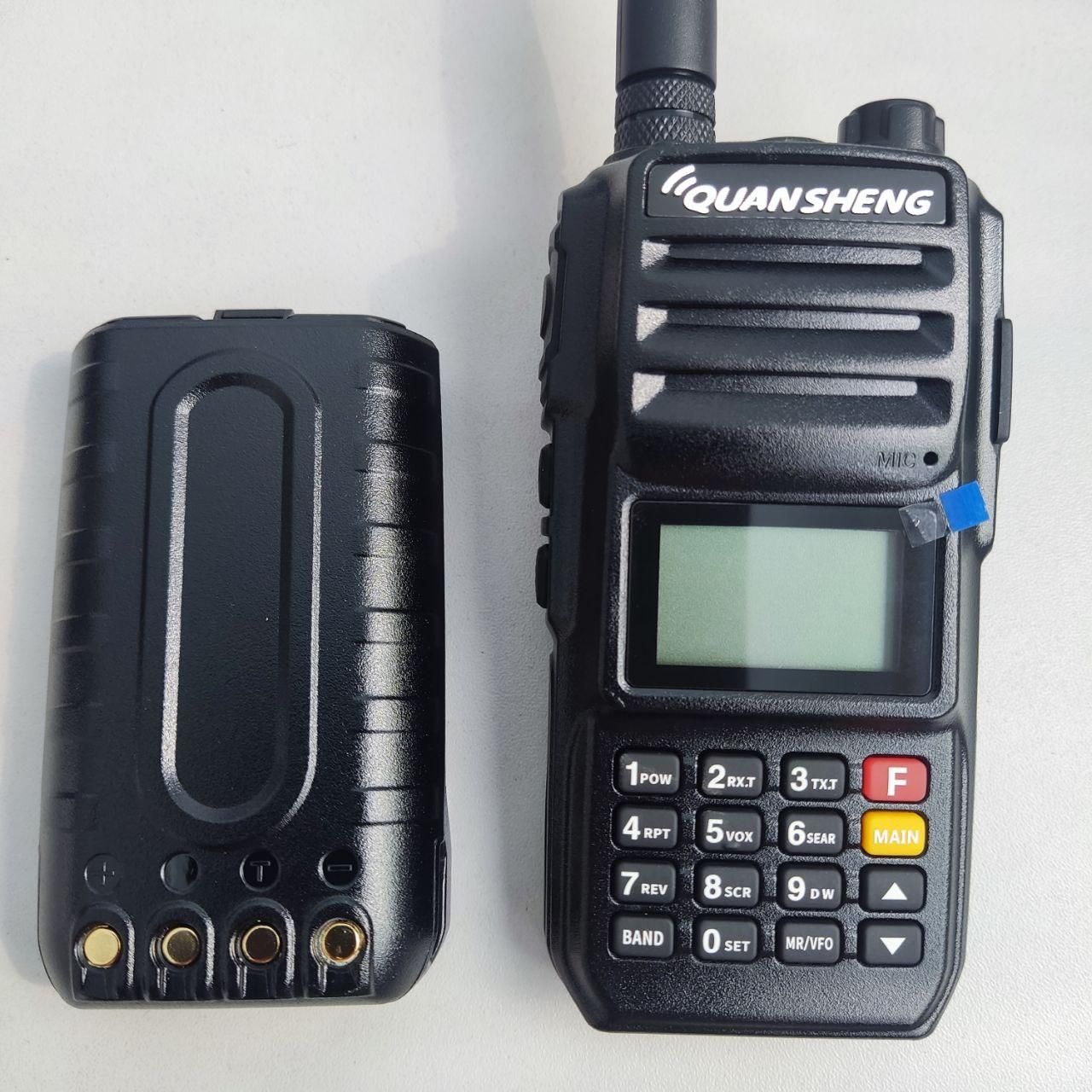

Battery
Super long standby time with polymer Li-ion battery
Multi display of frequency
Multi display (Full frequency/Channel/Frequency)
Language
Voice prompt (Chinese or English)
LCD Display
Colorful LCD display backlight, easy use in the dark
CTCSS/DCS
Receiving/Transmitting (Digital/Analog) CTCSS/DCS setting individually
Scan：
Channel scan
Time-out-timer (TOT)
Limit the time user uses in one channel, prohibit destruction for radio of over-time transmitting
Low power alarm
While the radio beeps or reminds 'Please charge', pls turn off the radio and recharge. Prohibit lower-power use of radio
Squelch level adjustable
Squelch level 0-9, normally set at 5-6. Squelch lever higher, communication quality better
Dual-watch operation
Main and sub frequency can dual waltch receiving while this function is on
FM Radio
With FM Radio function
Traditional Circuit
Traditional circuit with better stability, and better quality while transfering through repeater
Channel
Maximum 200 channels
| General specification | |
| Frequency Range |
VHF:136-174MHz UHF:350-390MHz |
| Channel number |
200 |
| Operating Voltage |
7.2V |
| Antenna impedance |
50Ω |
| Working temperature |
-25ºC+65ºC |
| Frequency stabllity |
土2.5PPM |
| Battery |
4000mAh |
| Dimension |
125mm × 62mm × 45mm |
| Weight |
261.5g |
| Transmitting | |
| Emission current |
10W |
| Modulation |
16KФF3E/11KФF3E |
| Maximum frequency deviation |
≤5.0KHz |
| Stray emission |
≤7.5µW |
| Emission current |
≤2.8A |
| FM modulation distortion |
≤5% |
| Receiving | |
| Receiving sensitivity |
≤0.25/0.28μV |
| Adjacent channel selectivity |
70/50dB |
| Block |
≥85dB |
| Modulation suppression |
60dB |
| Rated audio-frequency output power |
≤0.5W |
| Audio Distortion |
≤0.5% |
-
Производство :Китай
-
Інтерфейс:Бездротовий
-
Виробник:Quansheng
-
Тип:Радіостанція портативна
-
Число каналів:199
-
Потужність:10 Вт
-
Дисплей:Так
-
Мінімальний діапазон використовуваних частот:88 МГц
-
Максимальний діапазон частот, що використовуються:520 МГц
-
Стандарт:FM. PMR 446. UHF. VHF
-
Регулювання гучності:Регулювання. , вимкнення.
-
