REAMP Logger

REAMP Logger
When you want to achieve the longest battery life possible, you need an accurate and reliable power measurement tool.
So REAMP is the best choice for your Ultra-Low Power projects.
REAMP acts as a very stable and accurate power source for Device Under the Test (DUT).
This allows seeing even subtle changes in the power consumption profile of the DUT.
Number of measuring channels 3
Measuring range
Current – 10μA to 1А (1 channel)
Voltage – 0V to 5V (2 channels)
Sample rate
10 hZ…10 kHz (10 kHz one channel only)
Measuring results displaying
Average values in digital format
Easy navigation using horizontal and vertical zooming
Instant values graph
Saving data to a log
Power supply
Additional built-in Li-ion battery to be used when current consumption is over 500 mA
PC USB port
Interface 3 languages support (EN, UA, RU)
Application software “REAMP Logger”
Operation system Windows 7, Windows 8, Windows 10
USB connection to a PC (USB 2.0, USB 3.0)

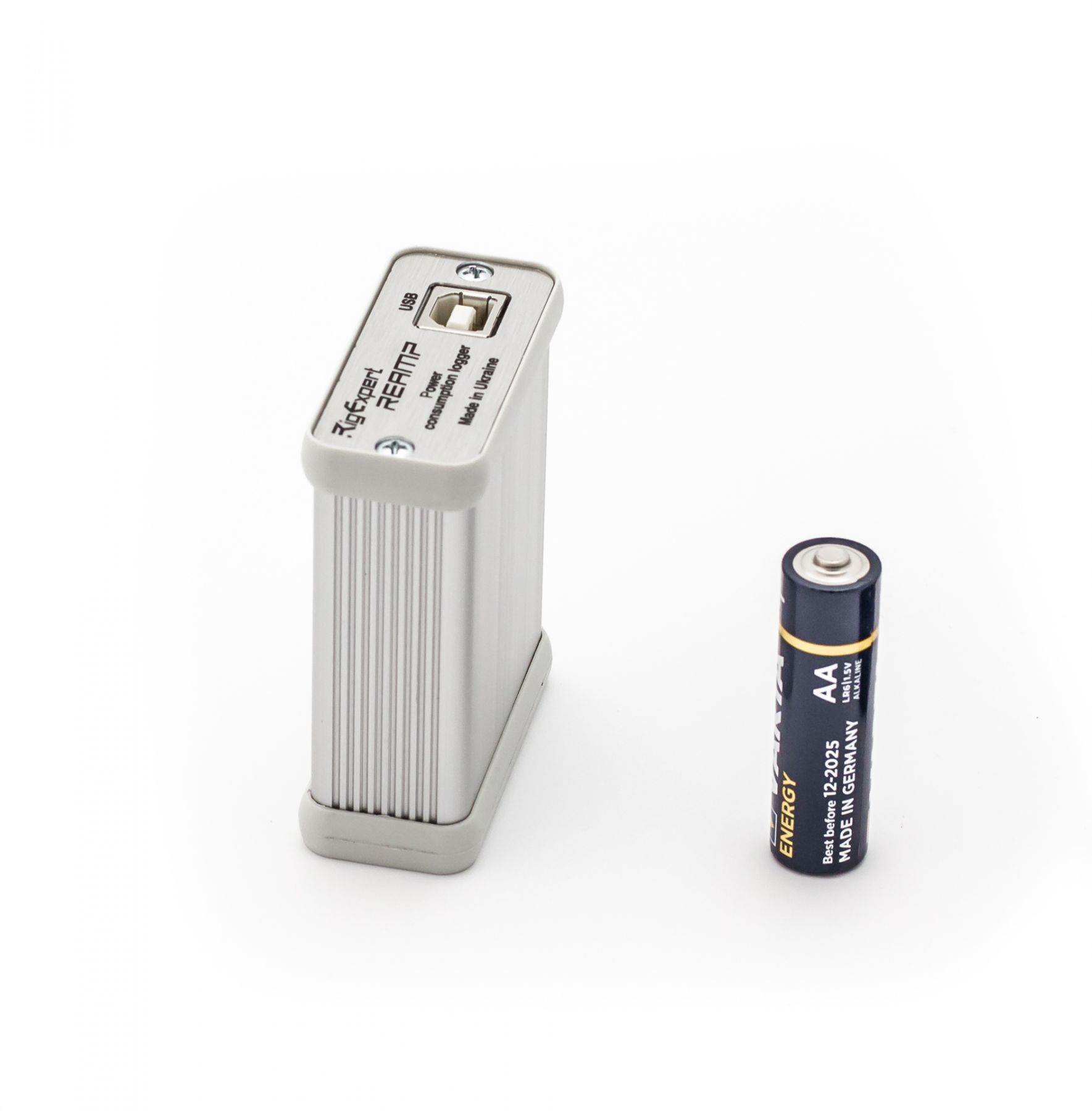

Dimensions 67 mm x 57 mm x 27 mm
Operating temperature 0…40 °C (32…104 °F)
Weight 100 g
Warranty 1 year
GTIN-13 4820185420334
Specifications are subject to change without notice
Мade in Ukraine
