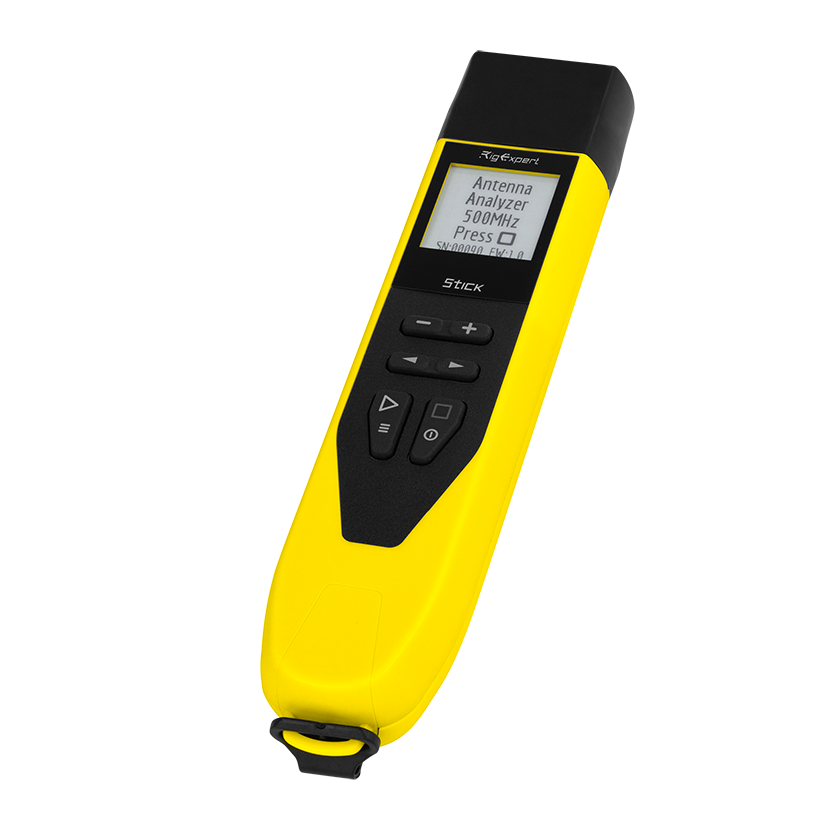

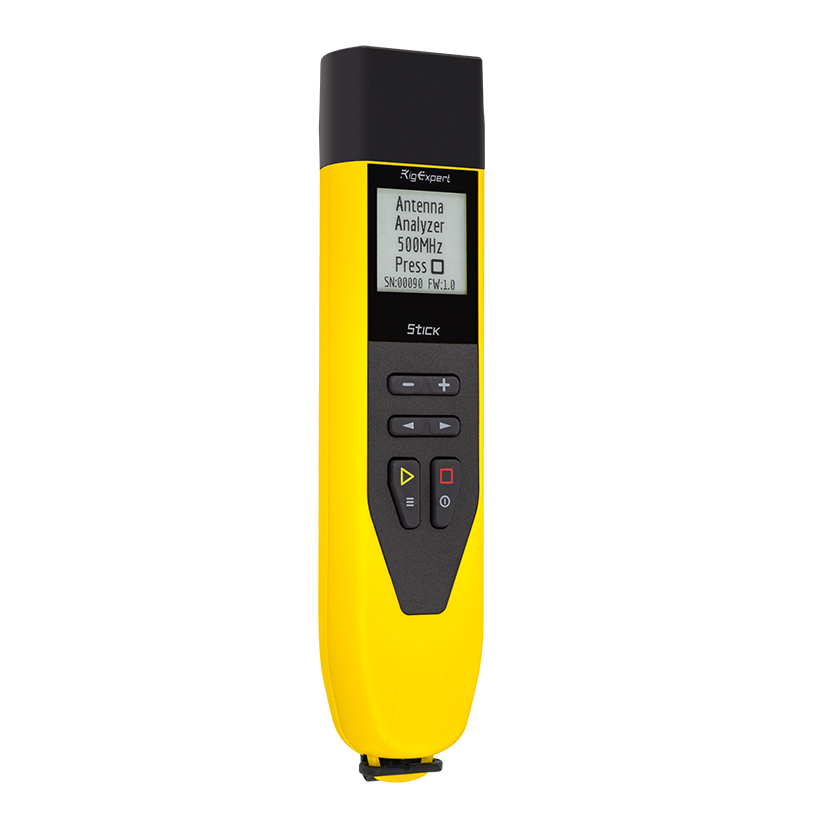

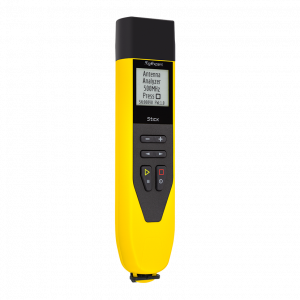

RigExpert® Stick 500 Pocket-size Antenna and Cable analyzer

( 11 )
Out of stock
Pre-order
In stock
0 грн
16 800 грн
+

Out of stock

Shipping methods
  • Pickup from New Mail
  • New Mail Courier
  • Pickup from the store
  • Other transport services
Payment methods
  • Cash upon receipt
  • Bank transfer
  • Privat 24
  • WebMoney
Description

Stick 500
Specifications

Stick 500
Frequency range
  • 0.1 to 500 MHz
Frequency entry
  • 1 kHz
Measurement for systems
  • 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
SWR measurement range
  • 1 to 10 in chart modes
  • 1 to 100 in numerical modes
R and X range
  • 0… 10000, -10000… 10000
Display modes
  • HAM (a quick check of single band antenna)
  • Multé (a quick check of multiband antennas)
  • OSL calibration mode
  • SWR chart, 100 points
  • SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency
RF output

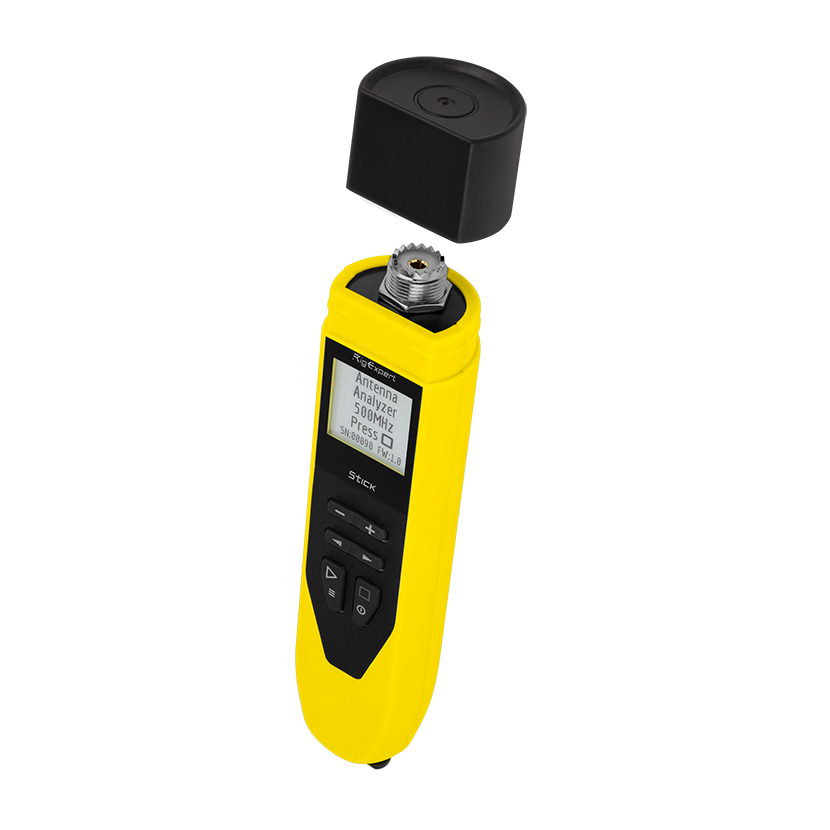

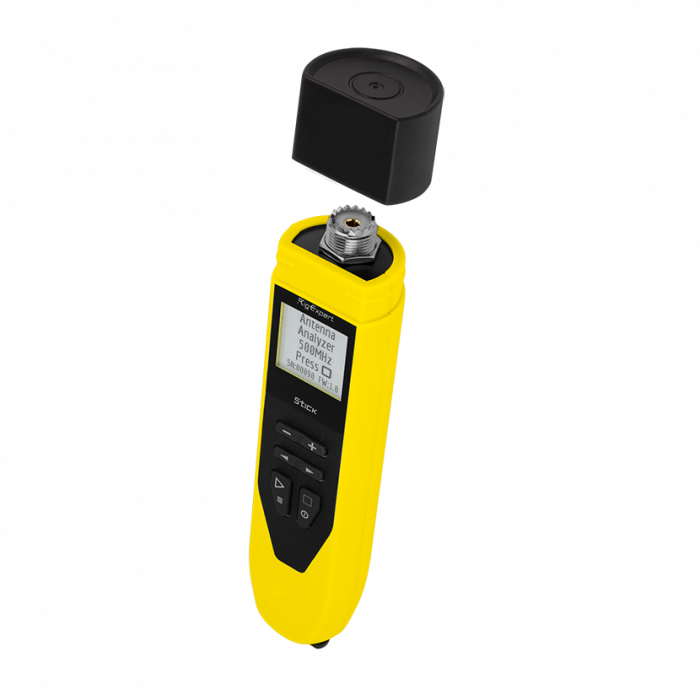

  • Connector type: UHF (SO-239)
  • Output power: -10 dBm (at a load of 50 ohms)
  • Output signal shape: square
Power

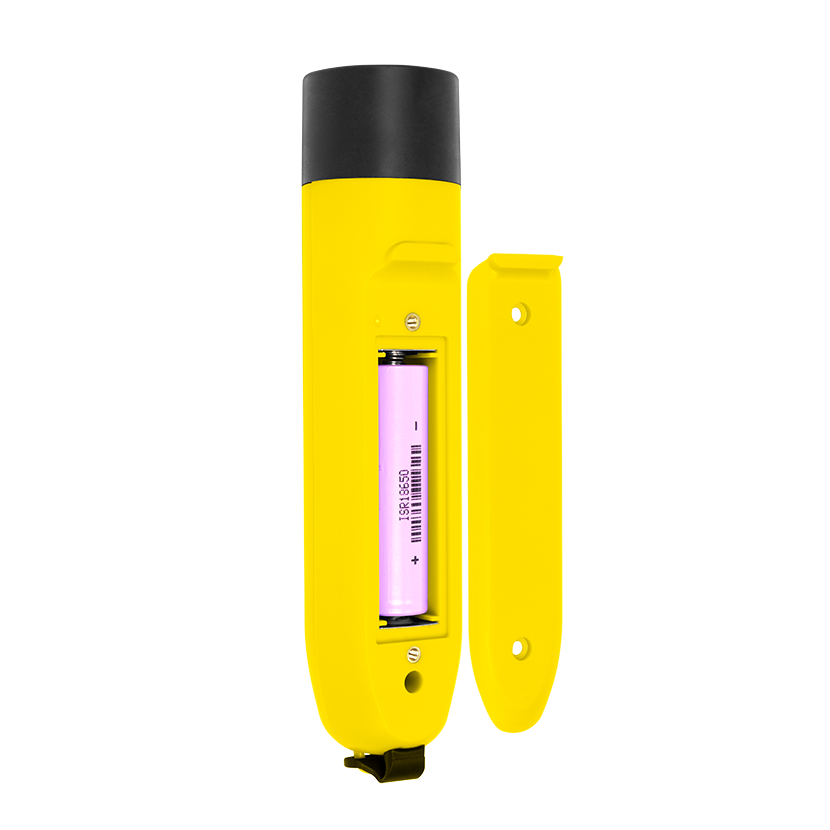

  • One lithium-ion battery 3.7 V type 18650
  • When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
  • Сharge time: 3 hours when using a charger
Interface
  • 2 × 3 keys on the waterproof keyboard
  • High contrast E Ink display, 200 × 200
  • Menus and help screens in English (by default), Japanese
  • v.4.2 BLE Single Mode, Class B
Operating temperature
  • -15° … 40 ° C (5 … 104 ° F)
Dimensions
  • 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
Weight
  • 185 grams (6.5 Oz) with battery

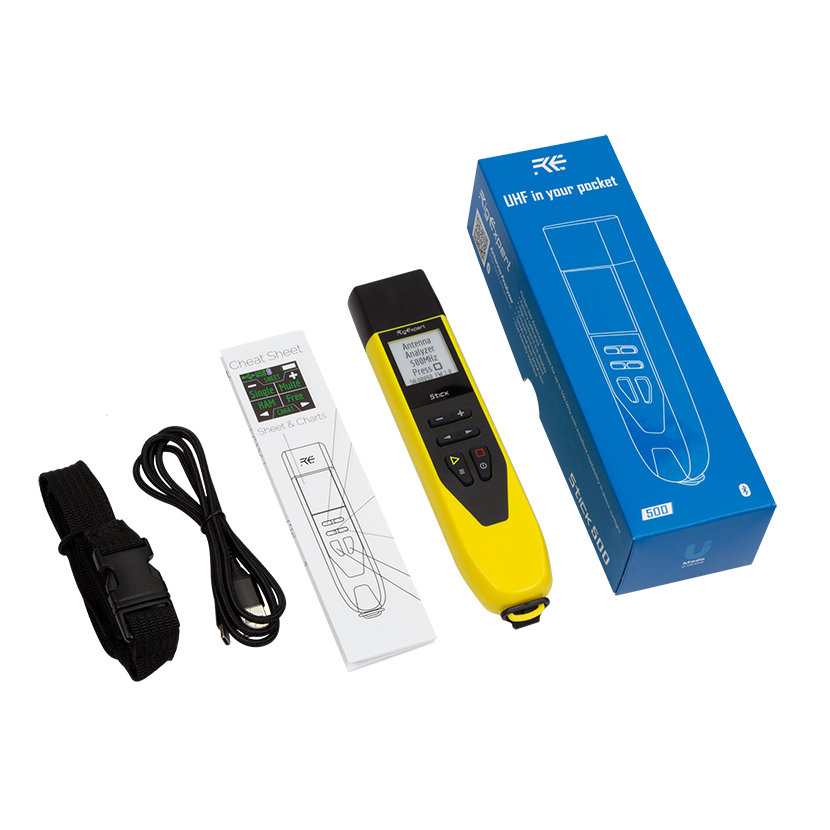

Accessories inside the box
  • Lanyard
  • Quick start guide
  • USB cable
GTIN-13
  • 4820185420358
Note
  • Specifications are subject to change without notice
  • Мade in Ukraine
Characteristics
  • Производство :
    Украина
  • Виробник:
    RigExpert
  • Тип:
    Антенний аналізатор
  • Гарантійний термін:
    12 міс
  • Мінімальний діапазон частоти:
    0.1 МГц
  • Максимальний діапазон частоти:
    500 МГц
  • Стан:
    Новий
  • Живлення:
    Акумулятор 18650
