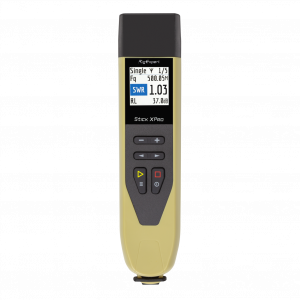

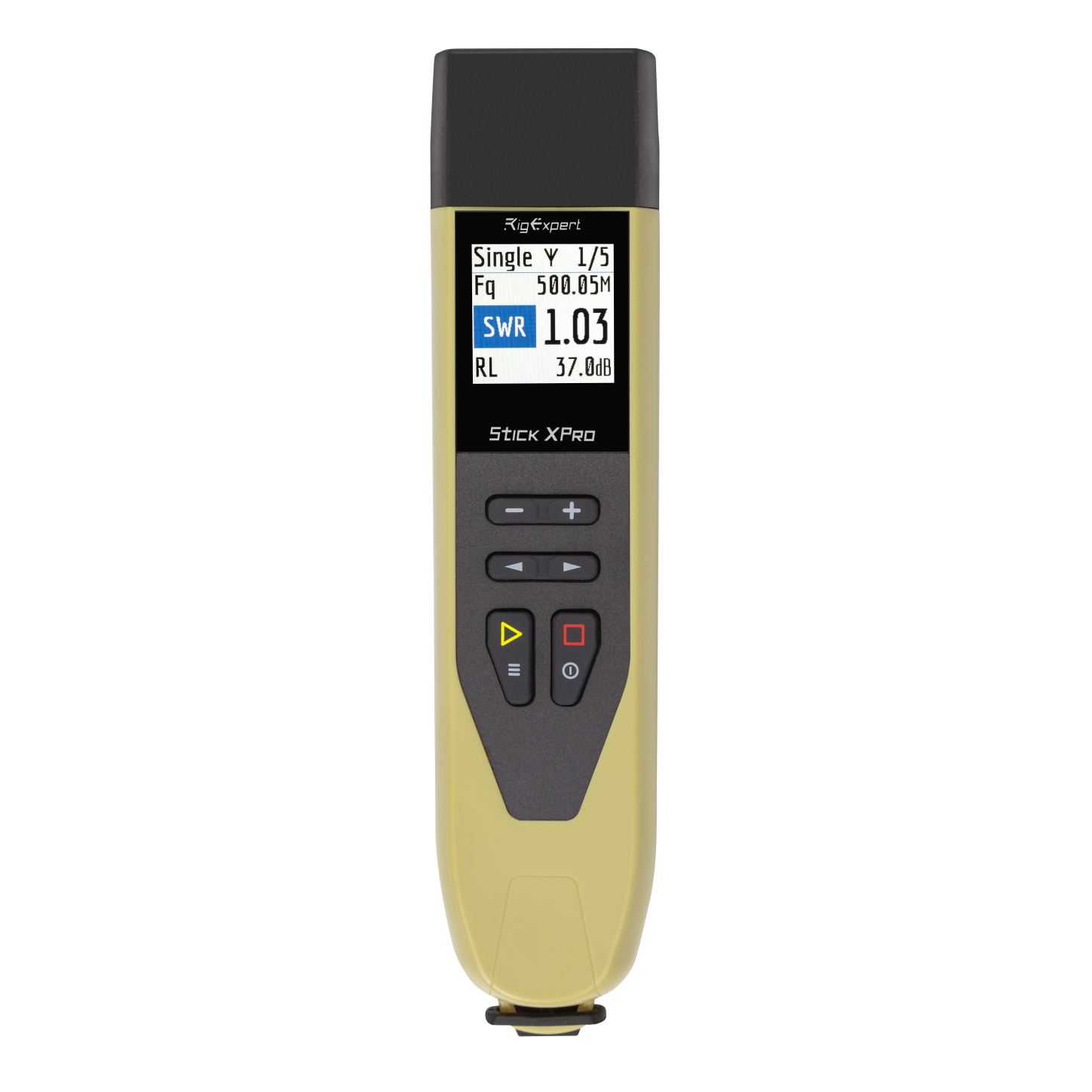

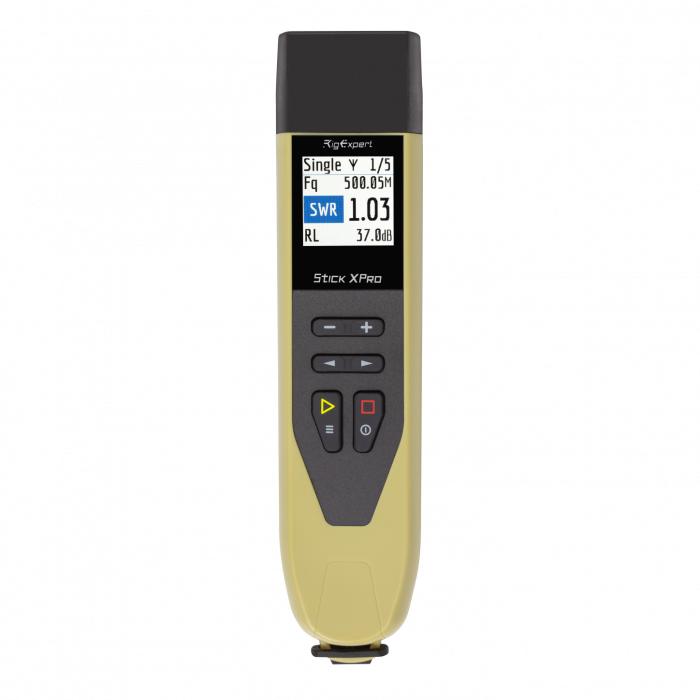

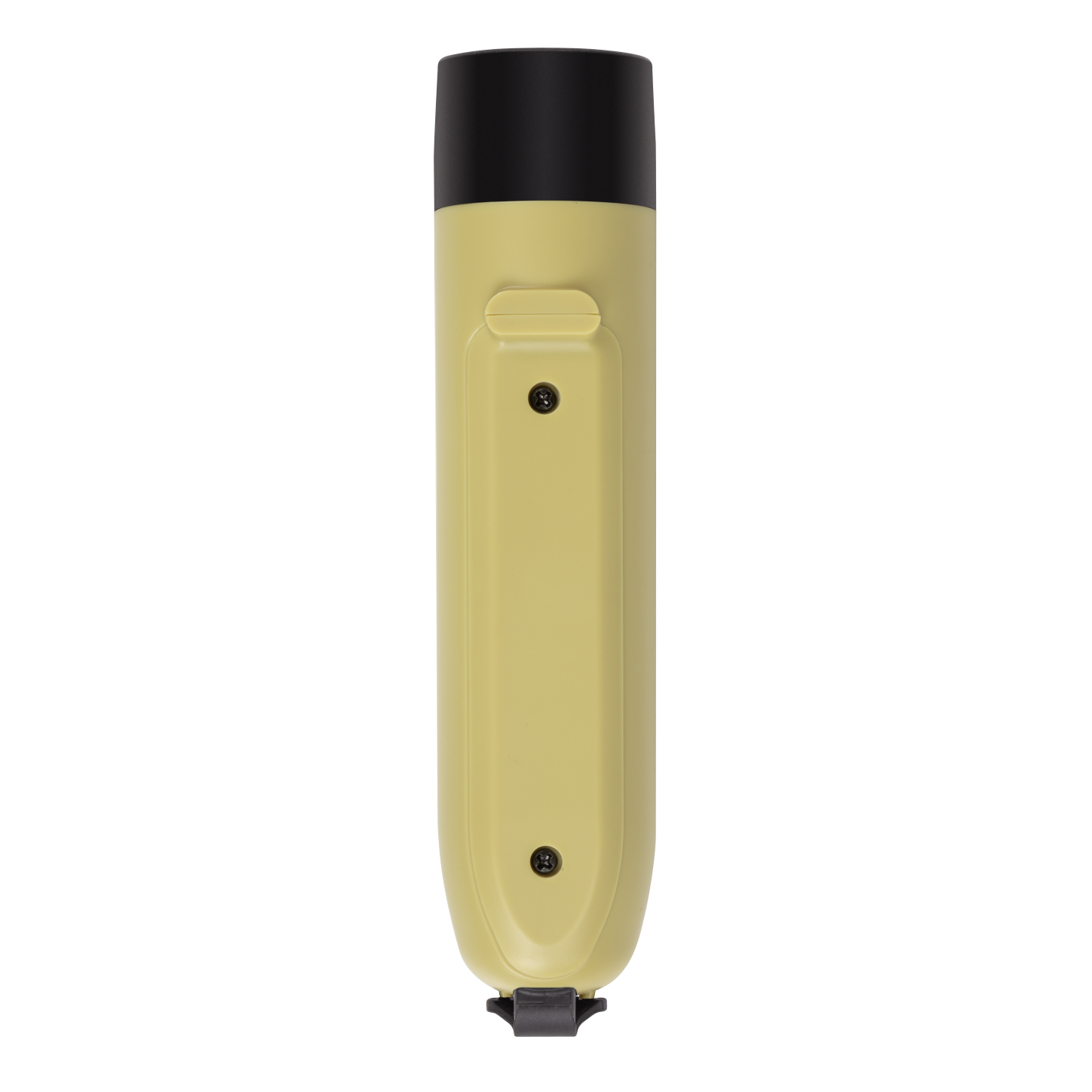

RigExpert Stick XPro
Specifications
Frequency range
- 0.1 to 1000 MHz
Frequency entry
- 1 kHz
Measurement for systems
- 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
SWR measurement range
- 1 to 10 in chart modes
- 1 to 100 in numerical modes
R and X range
- 0… 10000, -10000… 10000
Display modes
- HAM (a quick check of single band antenna)
- Multé (a quick check of multiband antennas)
- OSL calibration mode

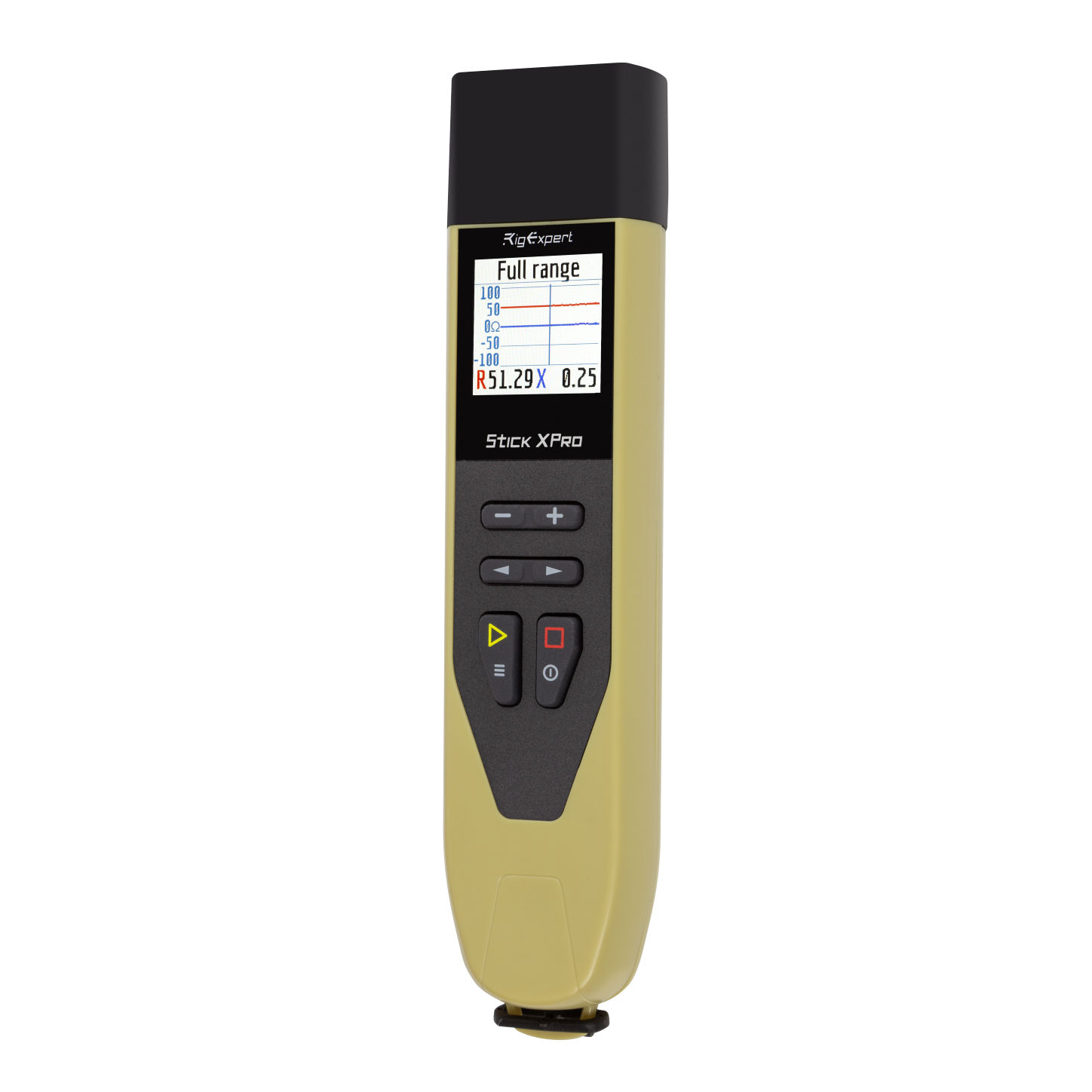

- R, X chart
- Return loss chart
- Single (measure SWR, |Z|, R, X, C, L, RL, Mag&Phase)
- SWR chart
- TDR (distance to fault)
- Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
RF output
- Connector type: N
- Output power: -10 dBm (at a load of 50 ohms)
- Output signal shape: square
Power

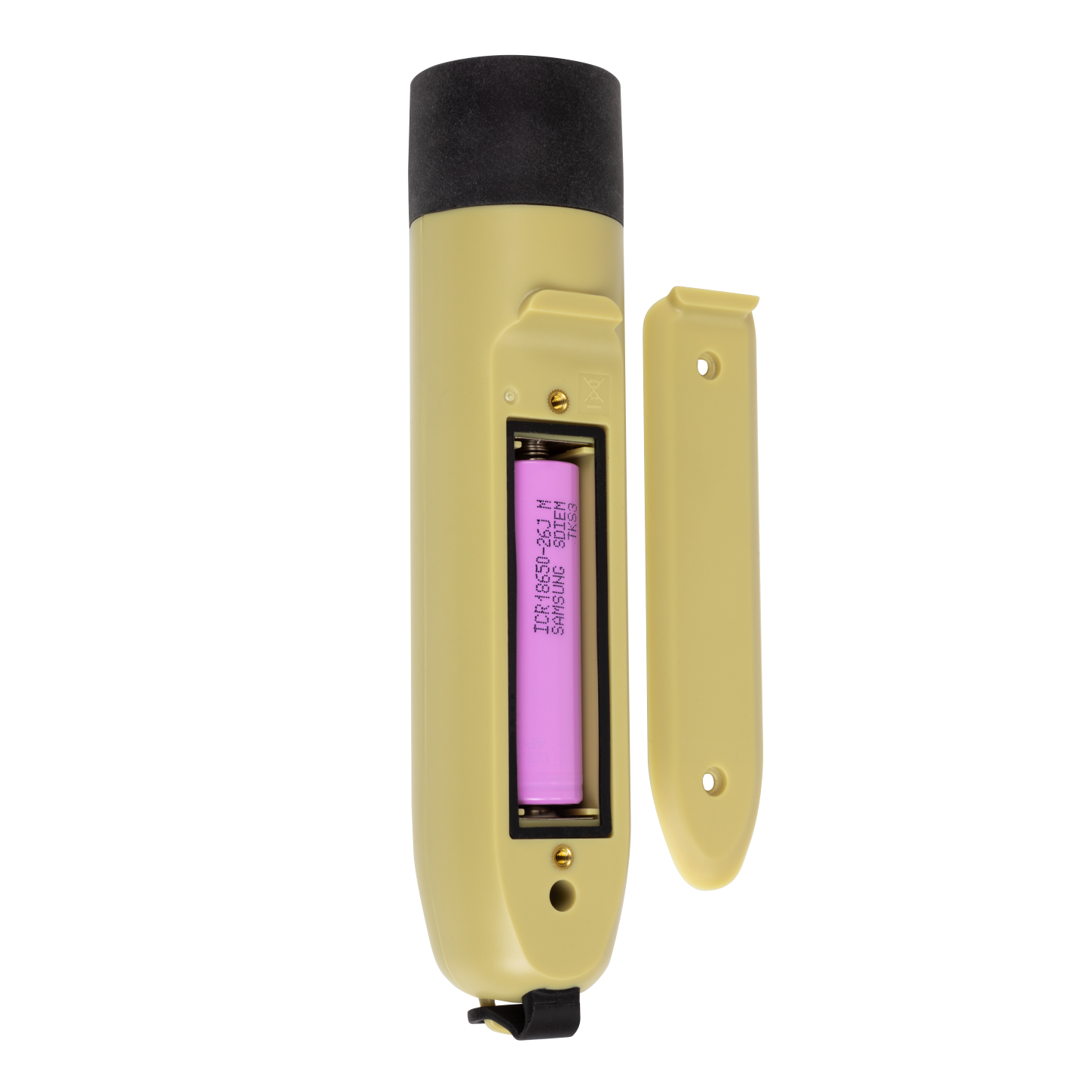

- One lithium-ion battery 3.7 V type 18650
- When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
- Сharge time: 3 hours when using a charger
Interface
- 2 × 3 keys on the waterproof keyboard
- 290×220 color TFT display
- Menus and help screens in English (by default), Japanese
- USB connection to a personal computer
Operating temperature
- -20°- 55°C (-4°-131°F)
Weight
- 185 grams (6.5 Oz) with battery
Dimensions
- 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)

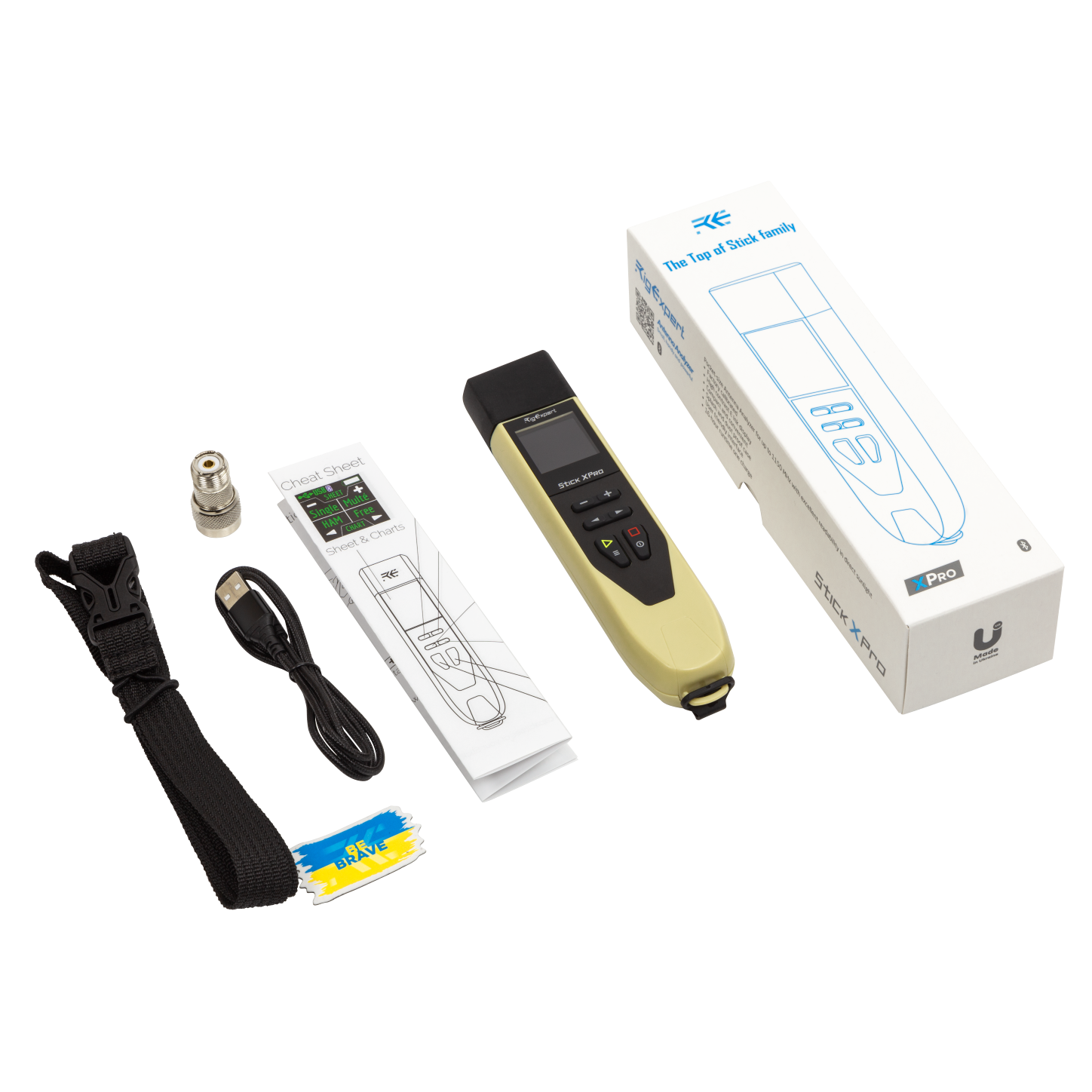

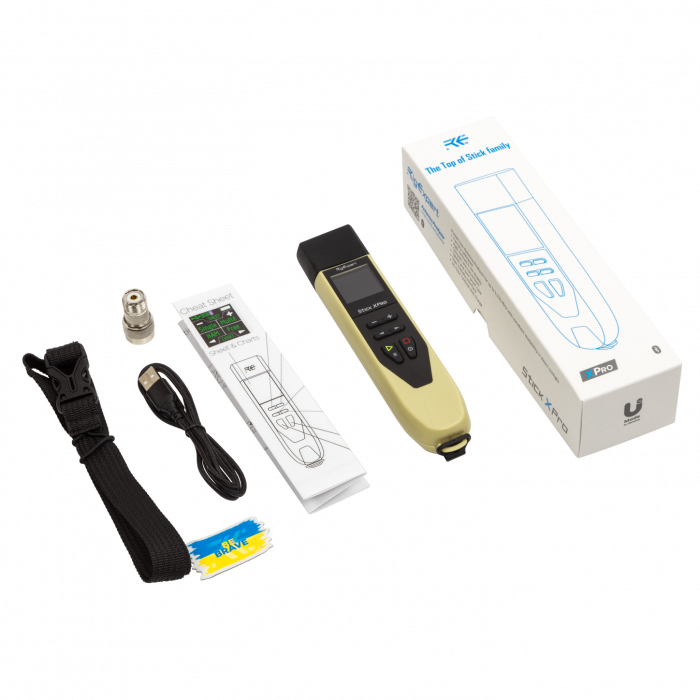

Accessories inside the box
- Quick-start guide, Neck strap, USB cable, N-type to UHF adapter
GTIN-13
- 4820185420365
Note
- Specifications are subject to change without notice
- Мade in Ukraine
-
Производство :Украина
-
Інтерфейс:Дротовий/Бездротовий
-
Виробник:RigExpert
-
Тип:Антенний аналізатор
-
Мінімальний діапазон частоти:0.1 МГц
-
Максимальний діапазон частоти:1000 МГц
-
Стан:Новий
-
Живлення:Акумулятор
-
Напруга:3.6 В
-
Імпеданс:50 Ом
