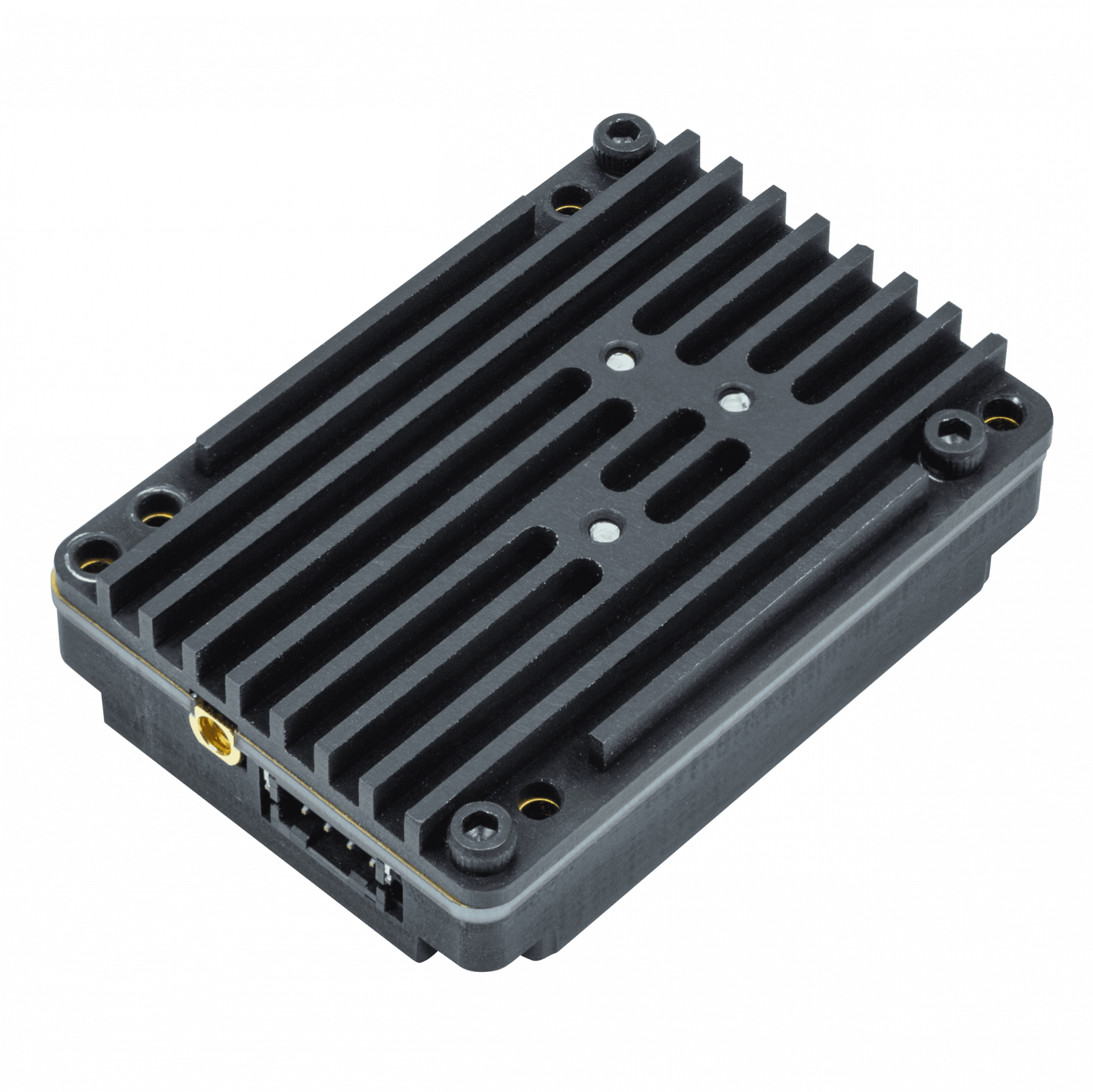

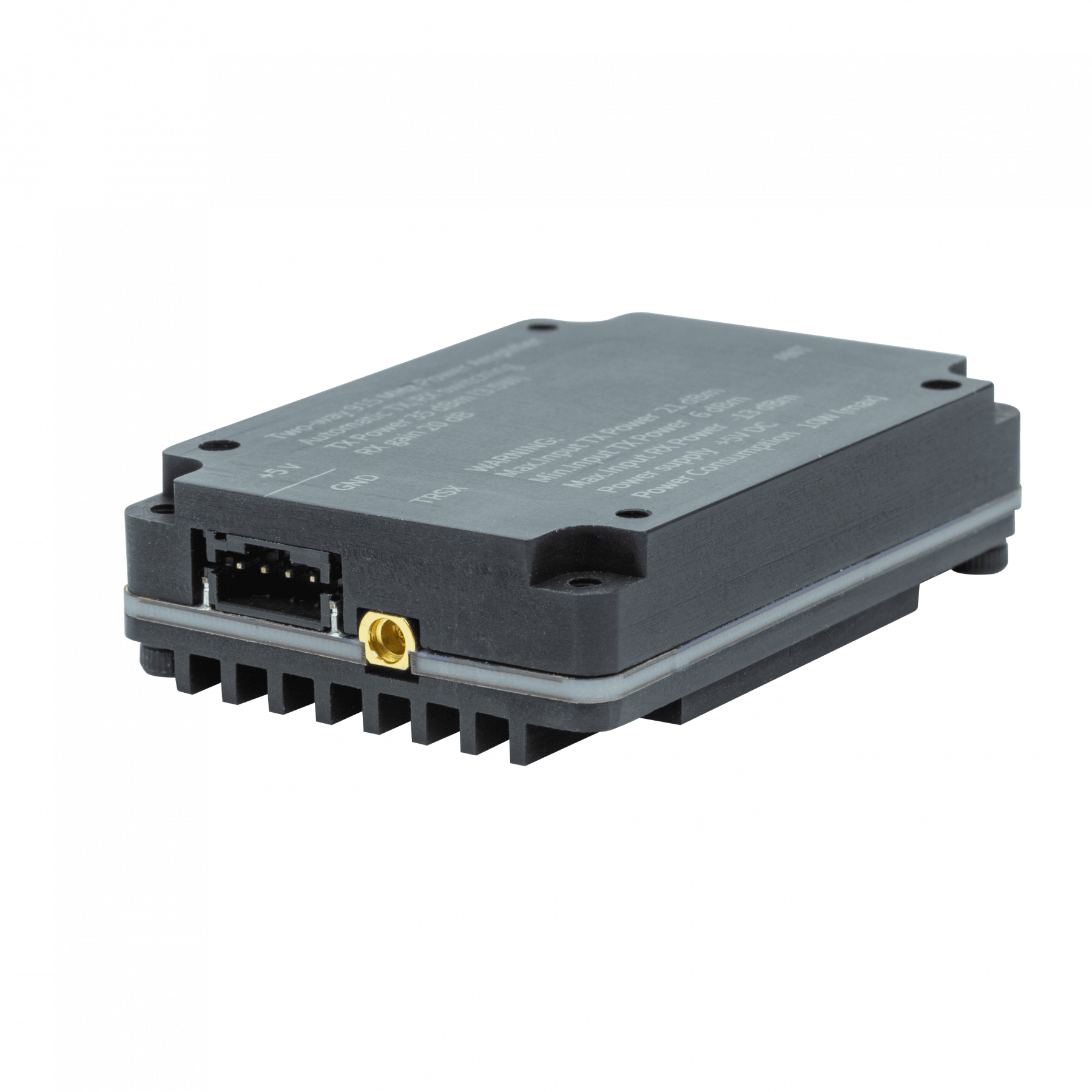

24GPA Bi-directional Power Amplifier

2.4GPA
Bi-directional Power Amplifier
Two-way 2.4G band amplifier, designed for low voltage application.
Provides around 10dB RX gain for small signals in passband and 22 dB for TX.
The output power +36 dBm in Pulse mode can be reached and +34 dBm in CW mode.
50 Ohm matched. VOX-based TX/RX switching. VOX level can be adjusted by replacing resistors.
Use it for UAV Systems, SDR, HAM Radio, IoT, Test & Measurement.
We guarantee that each declared value of this tiny amplifier's parameter corresponds to the actual one.
Specifications
Max RF Input TX Power  14.5 dBm
Min RF Input TX Power  9 dBm
Max RF Input RX Power  -2 dBm
Device Voltage  5.5 V
RF Input TX Power  9  13  14.5  dBm
Device Voltage  +4.75  +5  +5.25  V
Operational Frequency Range   2000   2600  MHz
TX Gain    22   dB
RX Gain    10   dB
Output Power CW  Input RF Power 13dBm @ 2.4 GHz  33.5  34.5  35  dBm
Output Power Pulse  Input RF Power 13dBm @ 2.4 GHz  34  35  36  dBm
2nd Harmonic CW  Output Power 34.4dBm @ 2.4 GHz   0   dBm
2nd Harmonic Pulse  Output Power 35dBm @ 2.4 GHz   2   dBm
Power Consumption in CW  Input RF Power 13dBm @ 2.4 GHz   9.1   W
Power Consumption in RX    0.3   W
Dimensions, mm  40x56x15
Weight, g  46
