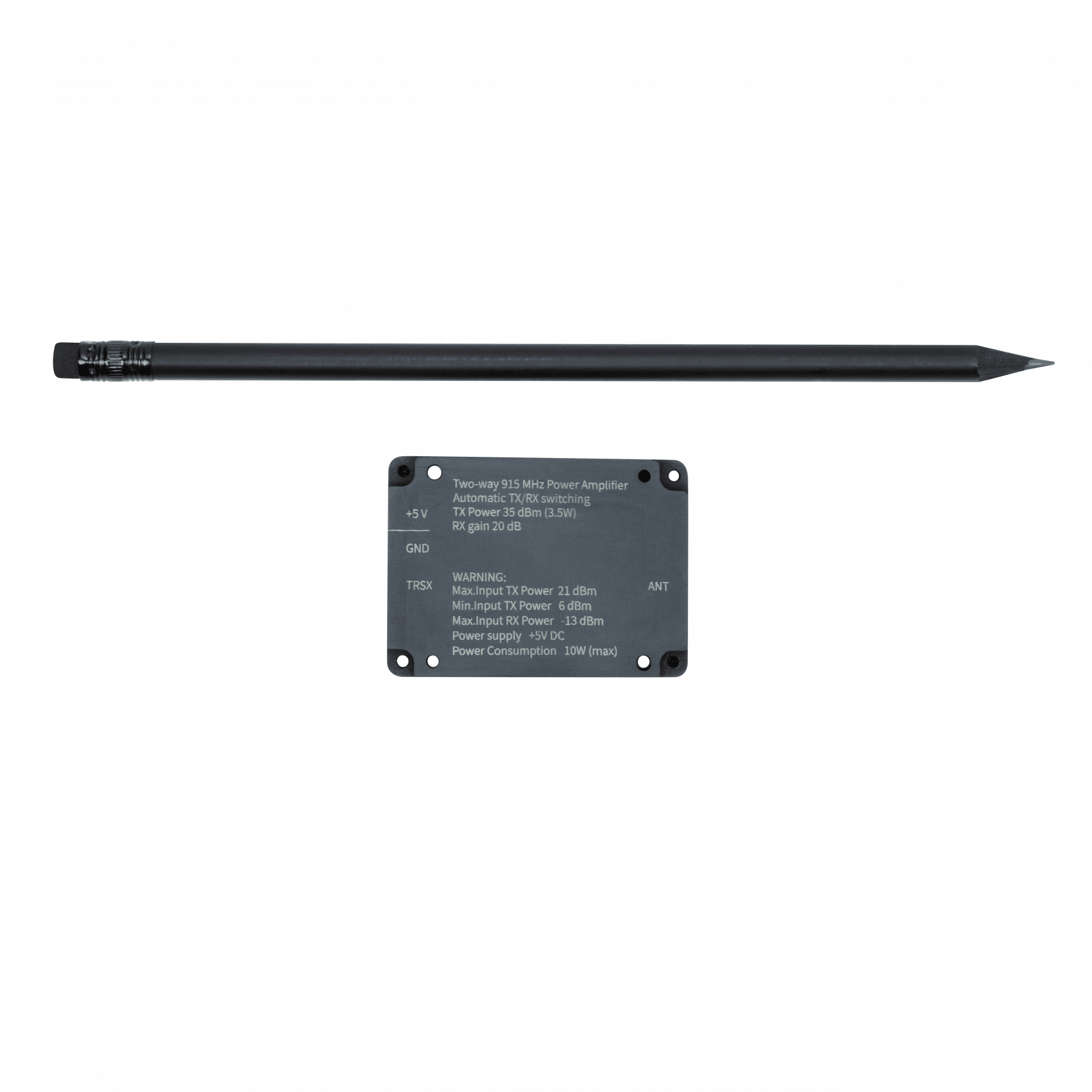

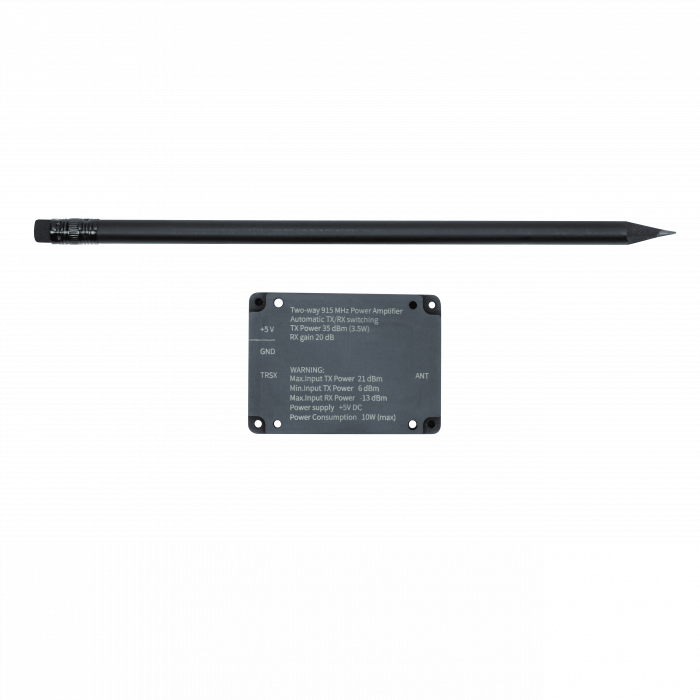

915MPA Bi-directional Power Amplifier

915MPA Bi-directional Power Amplifier
The bi-directional power amplifier for the ISM band (915MHz)
has been specifically developed for use in devices with a
5V power supply. It provides 20dB gain on reception and 15dB on transmission.
Its wide range of applications includes signal amplification for UAV control,
SDR radio, amateur radio, IoT, laboratory equipment, and more.
We believe that true strength lies in delivering what is promised.
Therefore, we guarantee an output power of +35dBm (3.5W) for this tiny amplifier.
Specifications
Max RF Input TX Power  21 dBm
Min RF Input TX Power  6 dBm
Max RF Input RX Power  -13 dBm
Device Voltage  5.5 V
**Important note: Input TX Power can be adjusted by changing input ATT.
RF Input TX Power  6  20  21  dBm
Device Voltage  +4.75  +5  +5.25  V
Operational Frequency Range   902   928  MHz
TX Gain    15   dB
RX Gain    20  22  dB
Output Power CW  Input RF Power 20dBm @ 916 MHz  34  35  36  dBm
Output Power Pulse  Input RF Power 20dBm @ 916 MHz  35  35.5  36  dBm
2nd Harmonic CW  Output Power 35.1dBm @ 915 MHz   1.3   dBm
2nd Harmonic Pulse  Output Power 36.6dBm @ 915 MHz   1.9   dBm
Power Consumption in CW TX  Output RF Power 35dBm @ 916 MHz   9.8   W
Power Consumption in RX    0.44   W
Dimensions, mm  40 x 56 x 15
Weight, g  46
