ВЧ Аналізатор AA-55 ZOOM

Rapid check-out of an antenna

Tuning an antenna to resonance

Comparing characteristics of an antenna before and after specific events (rain, hurricane, etc.)

Making coaxial stubs or measuring their parameters

Cable testing and fault location, measuring cable loss and characteristic impedance

Measuring capacitance or inductance of reactive loads

Frequency range 0.06 to 55 MHz
Frequency entry 1 kHz
Measurement for systems 25, 50, 75, 100 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0…1000, -1000…1000 in chart modes, 0…10000, -10000…10000 in numerical modes
Display modes

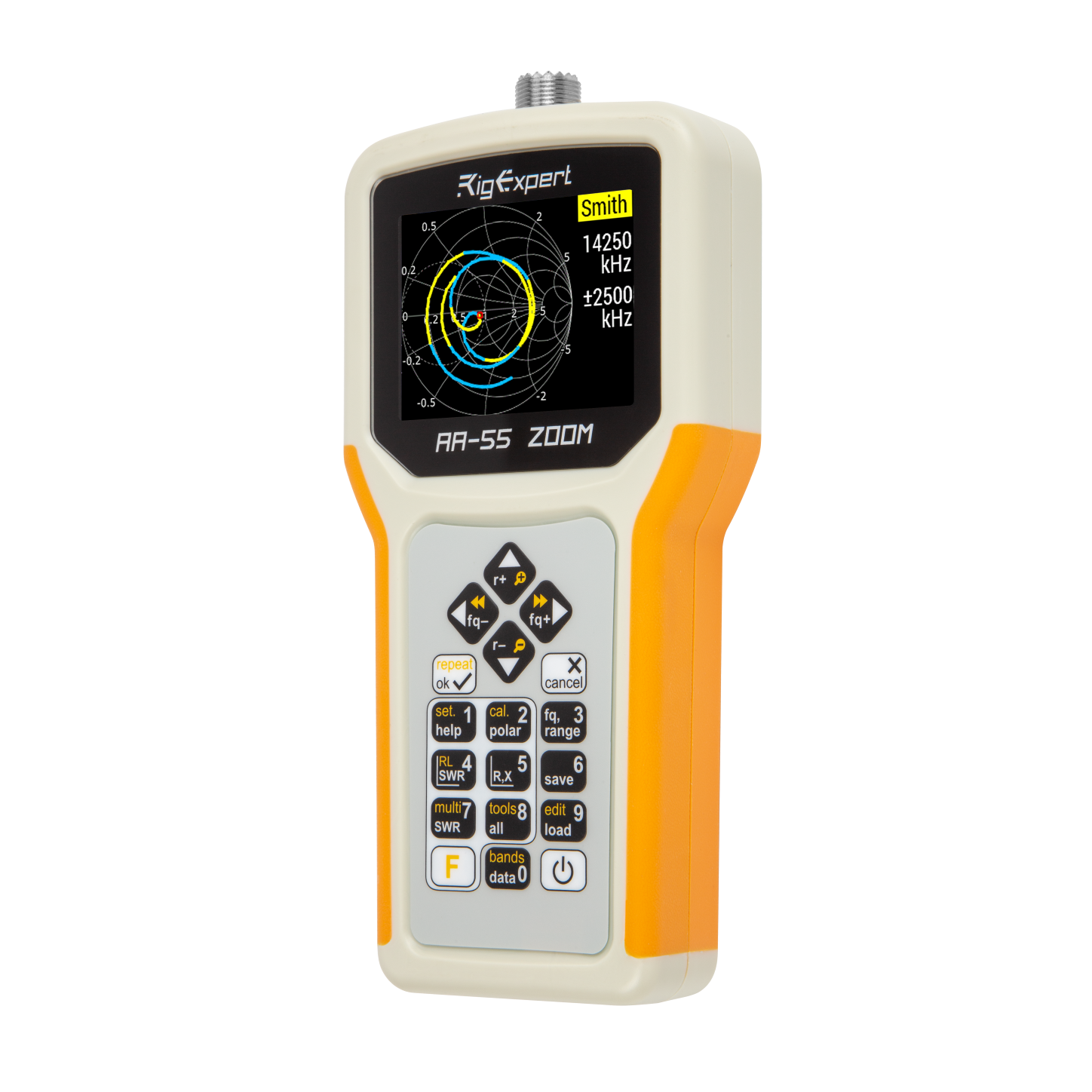

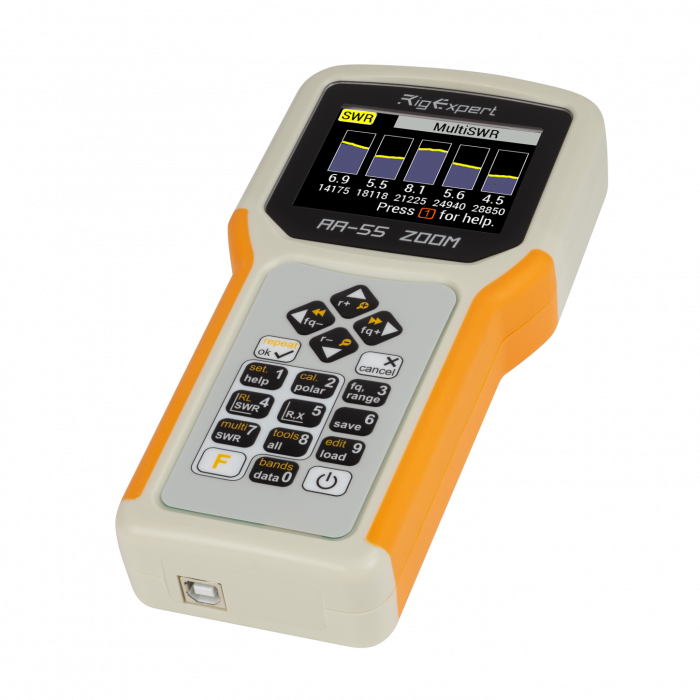

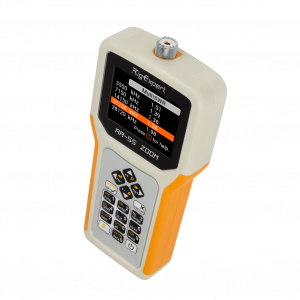

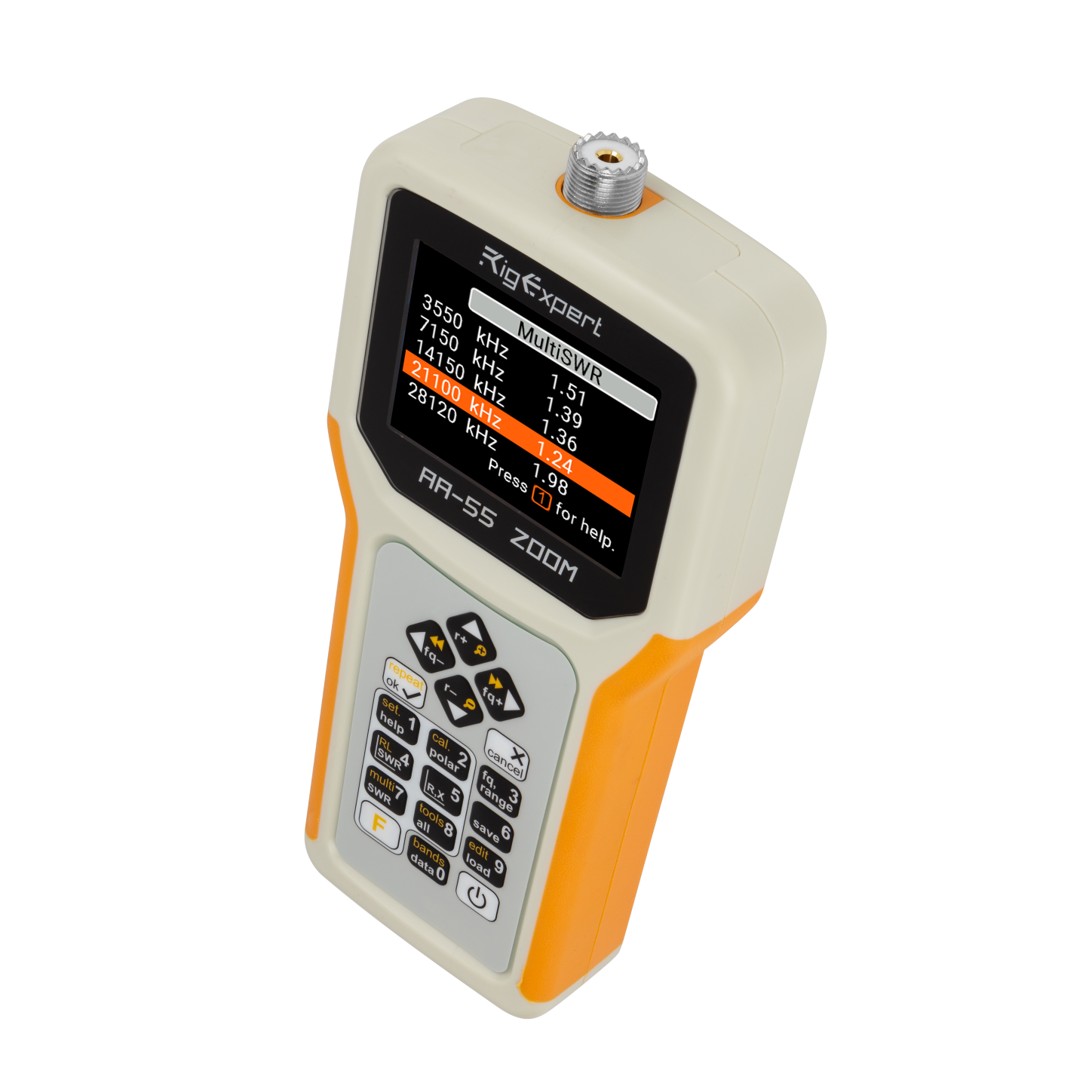

R, X chart, 100 points, Return loss chart, 100 points, Smith chart, 100 points, SWR at single or multiple frequencies, SWR chart, 100 points, SWR, return loss, R, X, Z, L, C at single frequency
RF output
Connector type: UHF (SO-239), Output power: +13 dBm (at 50 Ohm load), Output signal shape: square
Power

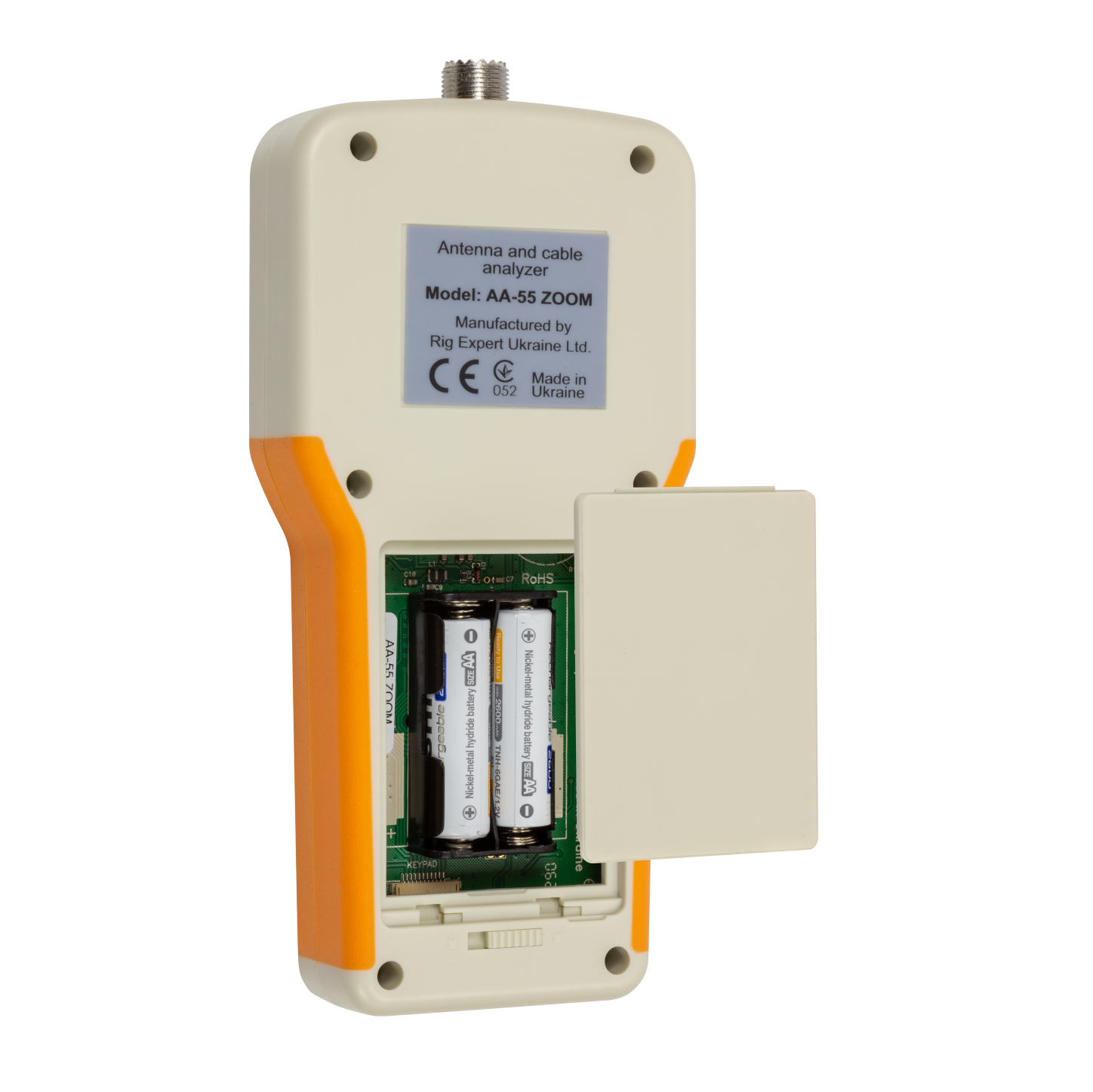

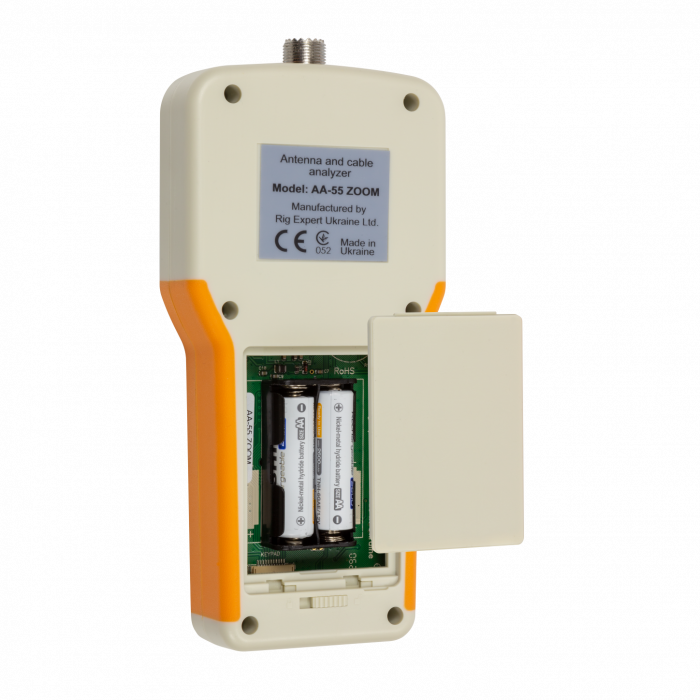

Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used, Two 1.2V Ni-MH batteries, type AA, Two 1.5V alkaline batteries, type AA, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
320×240 color TFT display, 6x3 keys on the water-proof keypad, Menus and help screens in English (by default), Japanese, French, USB connection to a personal computer
Dimensions
103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)
Operating temperature
0…40 °C (32…104 °F)
Weight
310 g (10.9 Oz) w/o batteries
Specifications are subject to change without notice, Мade in Ukraine
