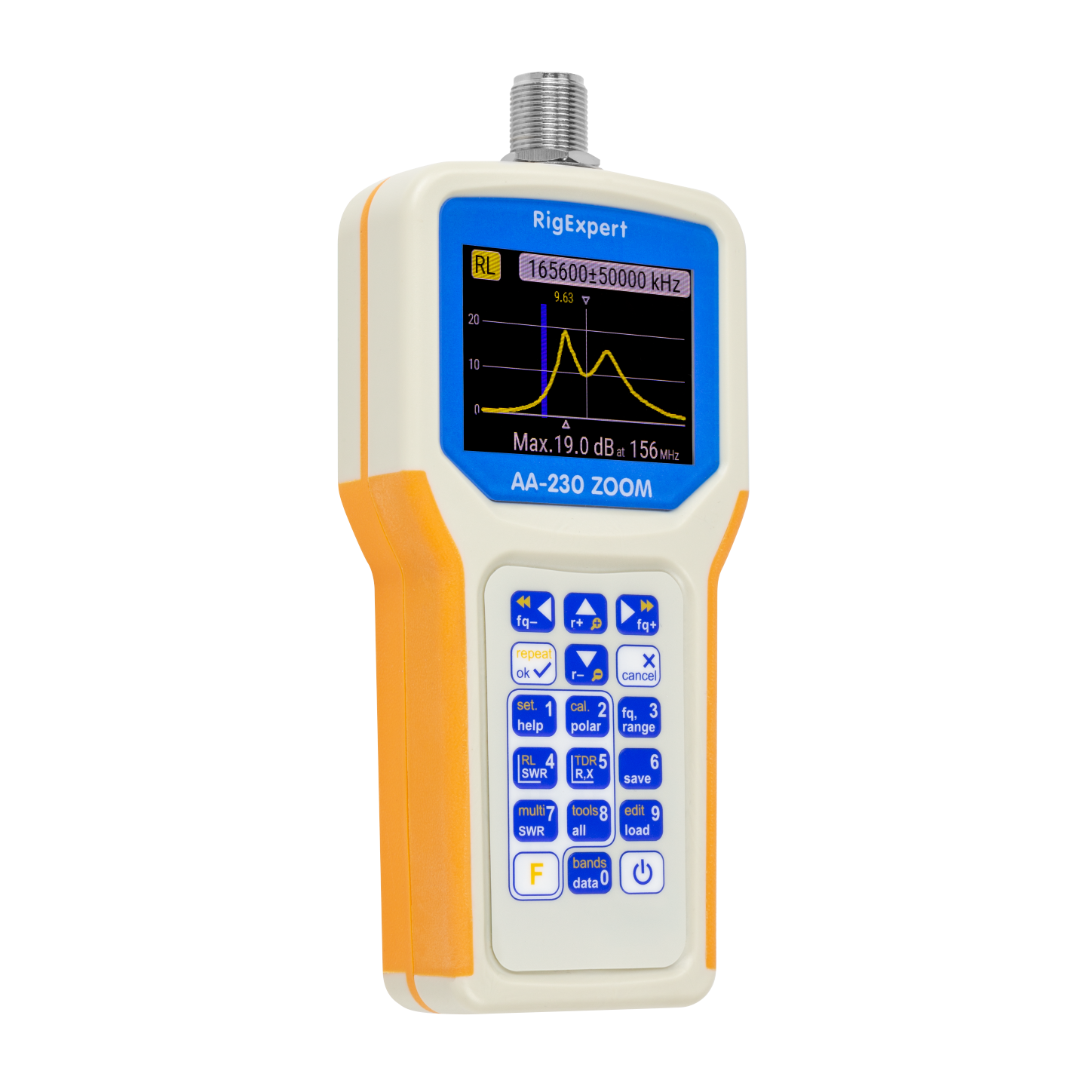

НВЧ Аналізатор AA-230 ZOOM

Rapid check-out of an antenna

Tuning an antenna to resonance

Comparing characteristics of an antenna before and after specific events (rain, hurricane, etc.)

Making coaxial stubs or measuring their parameters

Cable testing and fault location, measuring cable loss and characteristic impedance

Measuring capacitance or inductance of reactive loads

Frequency range 0.1 to 230 MHz
Frequency entry 1 kHz
Measurement for systems
25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0…1000, -1000…1000 in chart modes, 0…10000, -10000…10000 in numerical modes
Display modes
Optional open-short-load calibration, R, X chart, 20 to 500 points,

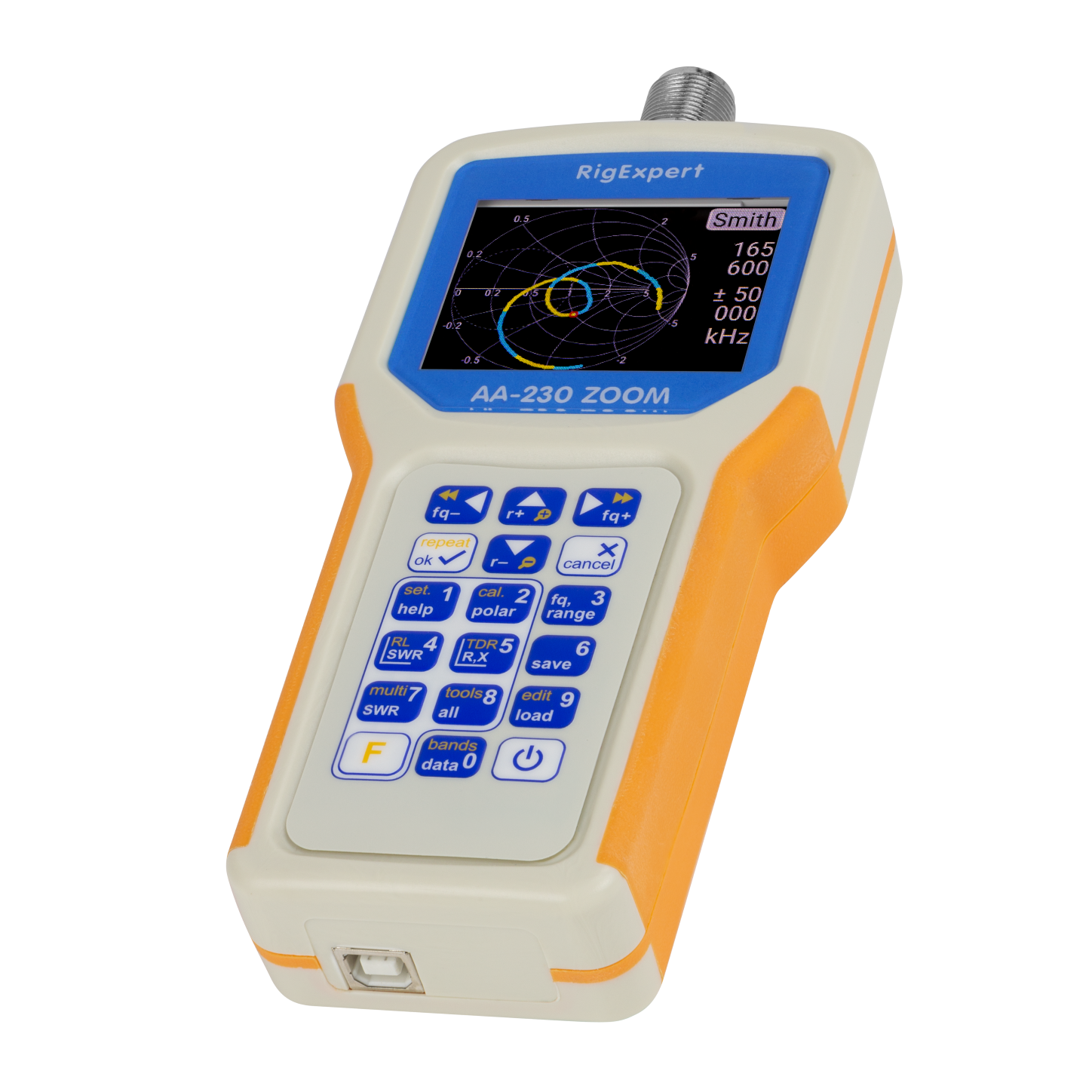

Return loss chart, 20 to 500 points, Smith chart, 20 to 500 points,

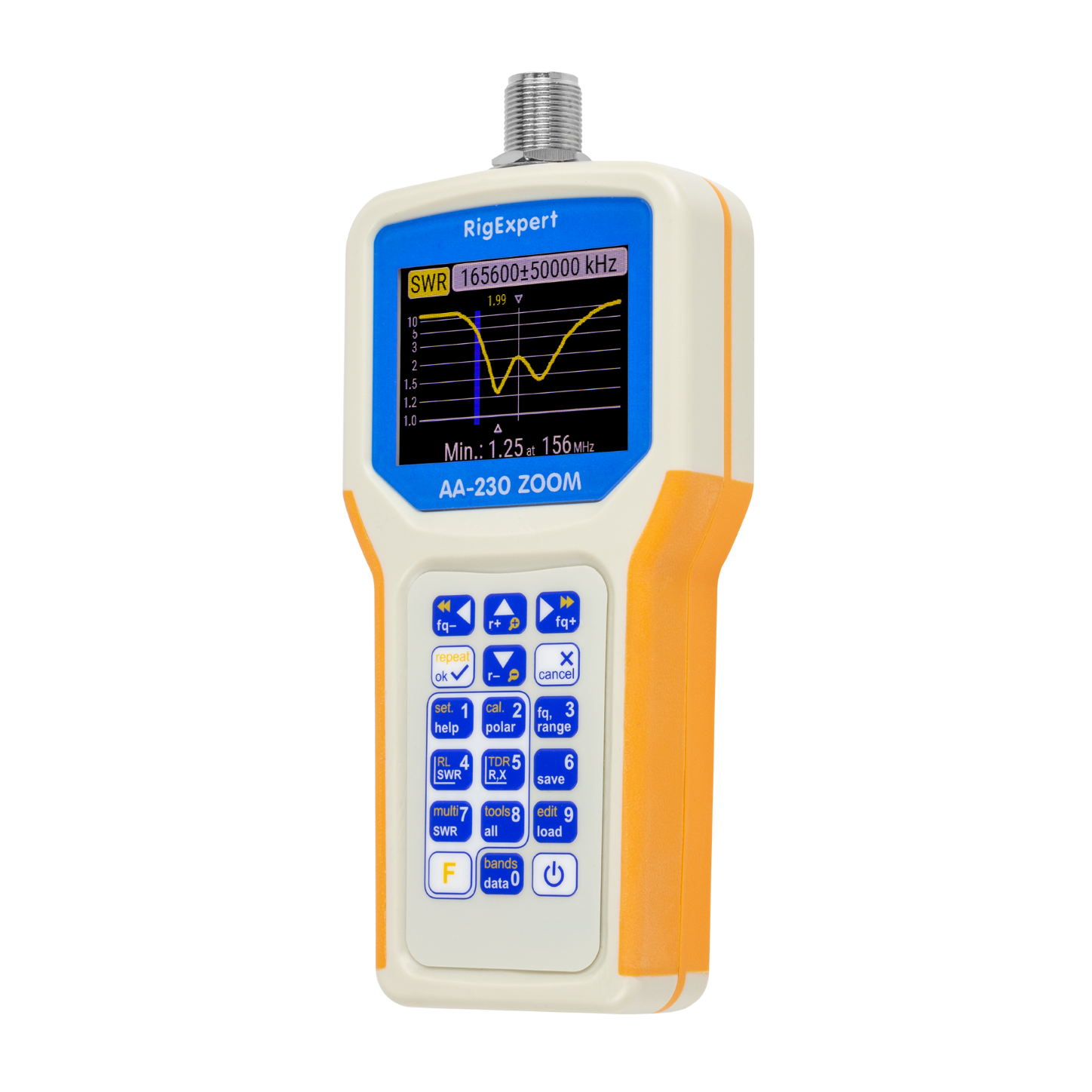

SWR at single or multiple frequencies, SWR chart, 20 to 500 points,

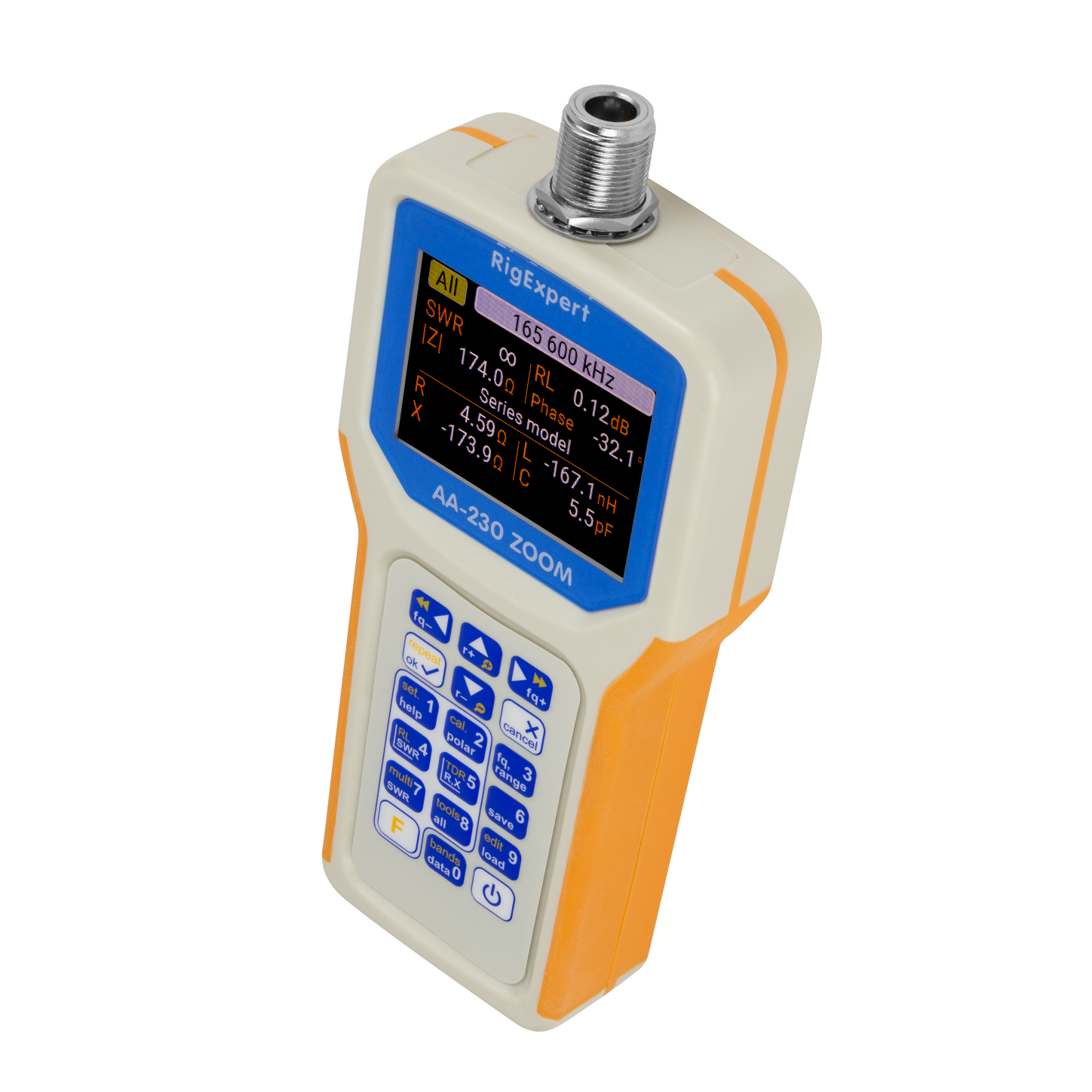

SWR, return loss, R, X, Z, L, C at single frequency,
TDR chart (Time Domain Reflectometer), Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power
Four 1.2V Ni-MH batteries, type AAA, Four 1.5V alkaline batteries,
type AAA, Max. 4 hours of continuous measurement, max.
2 days in standby mode when fully charged batteries are used,
When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
290×220 color TFT display, 6x3 keys on the water-proof keypad,
Bluetooth Specification v.4.2, LE, Menus and help screens in English (by default), Japanese, USB connection to a personal computer
Dimensions 82 x 182 x 32 mm (3.2 x 7.2 x 1.3 in)
Operating temperature 0…40 °C (32…104 °F)
Weight 236 g (8.32 oz)

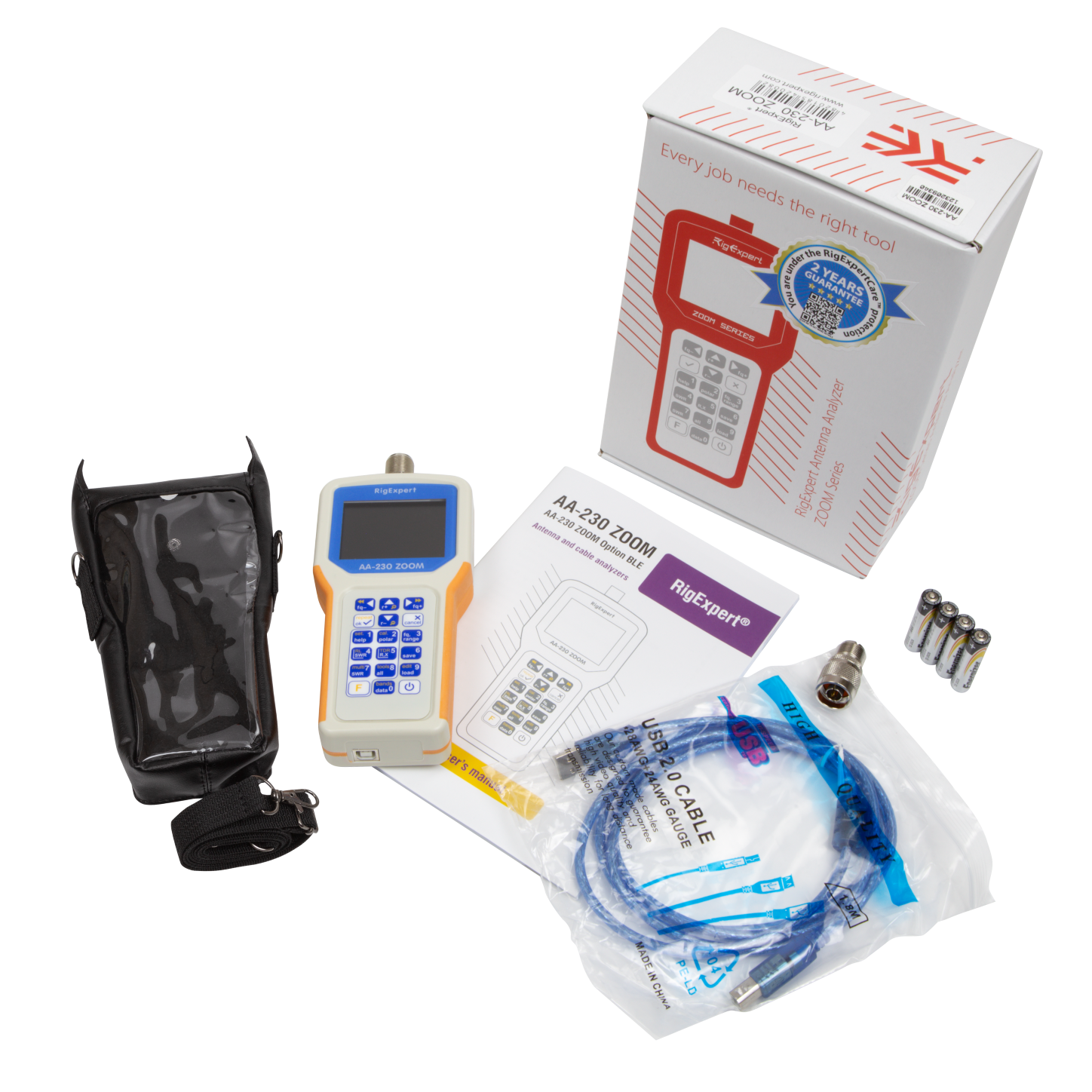

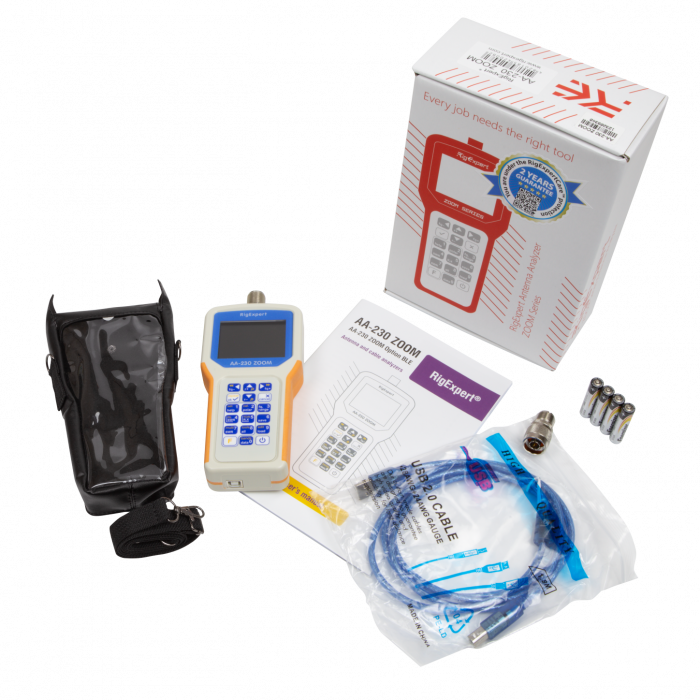

Accessories inside the box
Alkaline batteries, N Male SO-239 Female adaptor, Soft case, USB cable, User’s manual
GTIN-13
4820185420082
Note
Specifications are subject to change without notice, Мade in Ukraine
