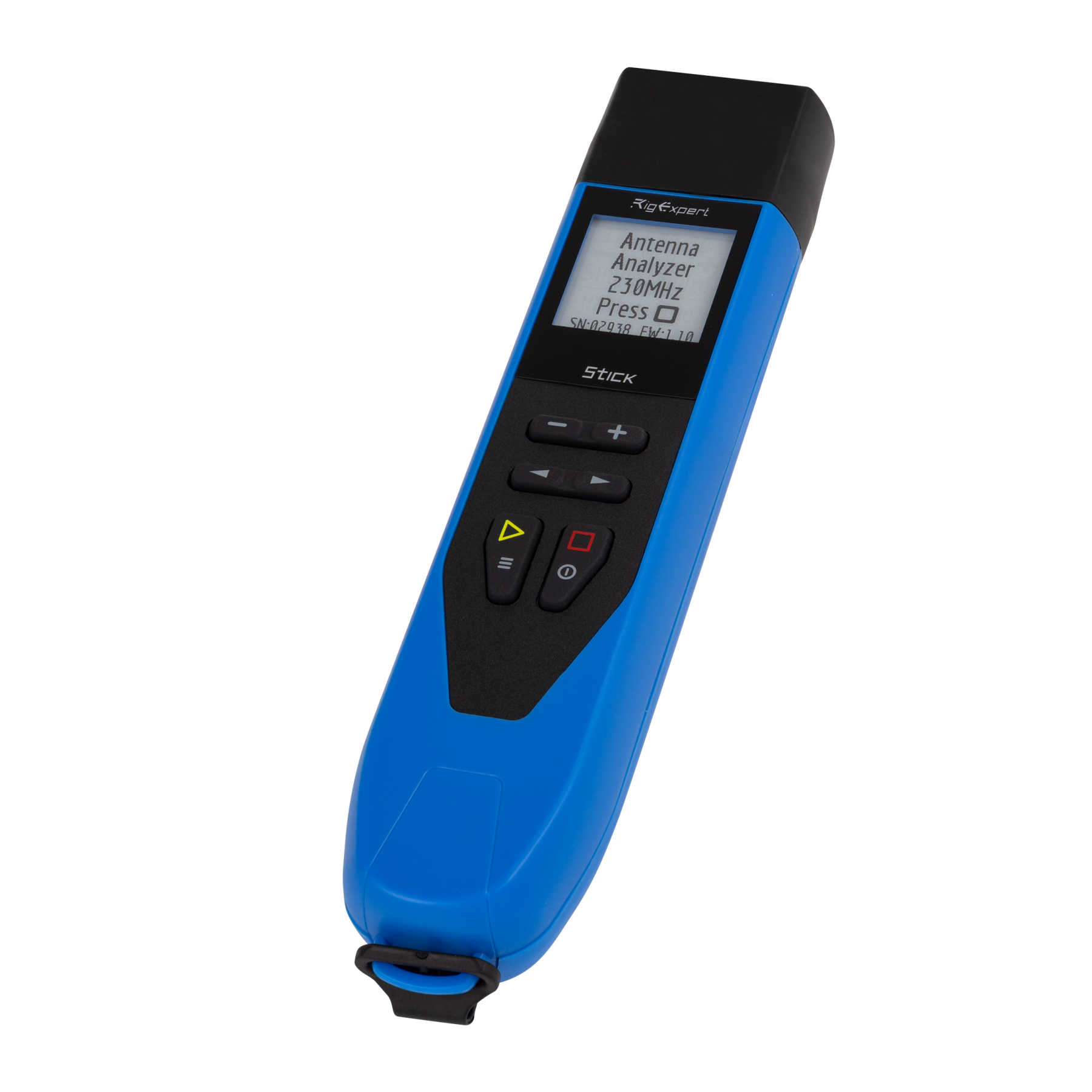

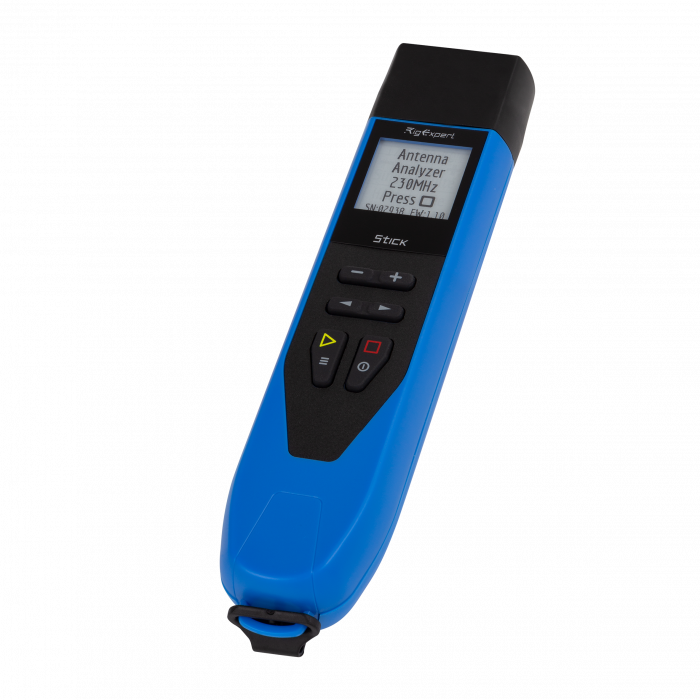

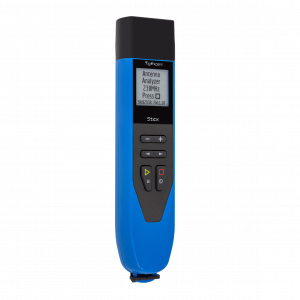

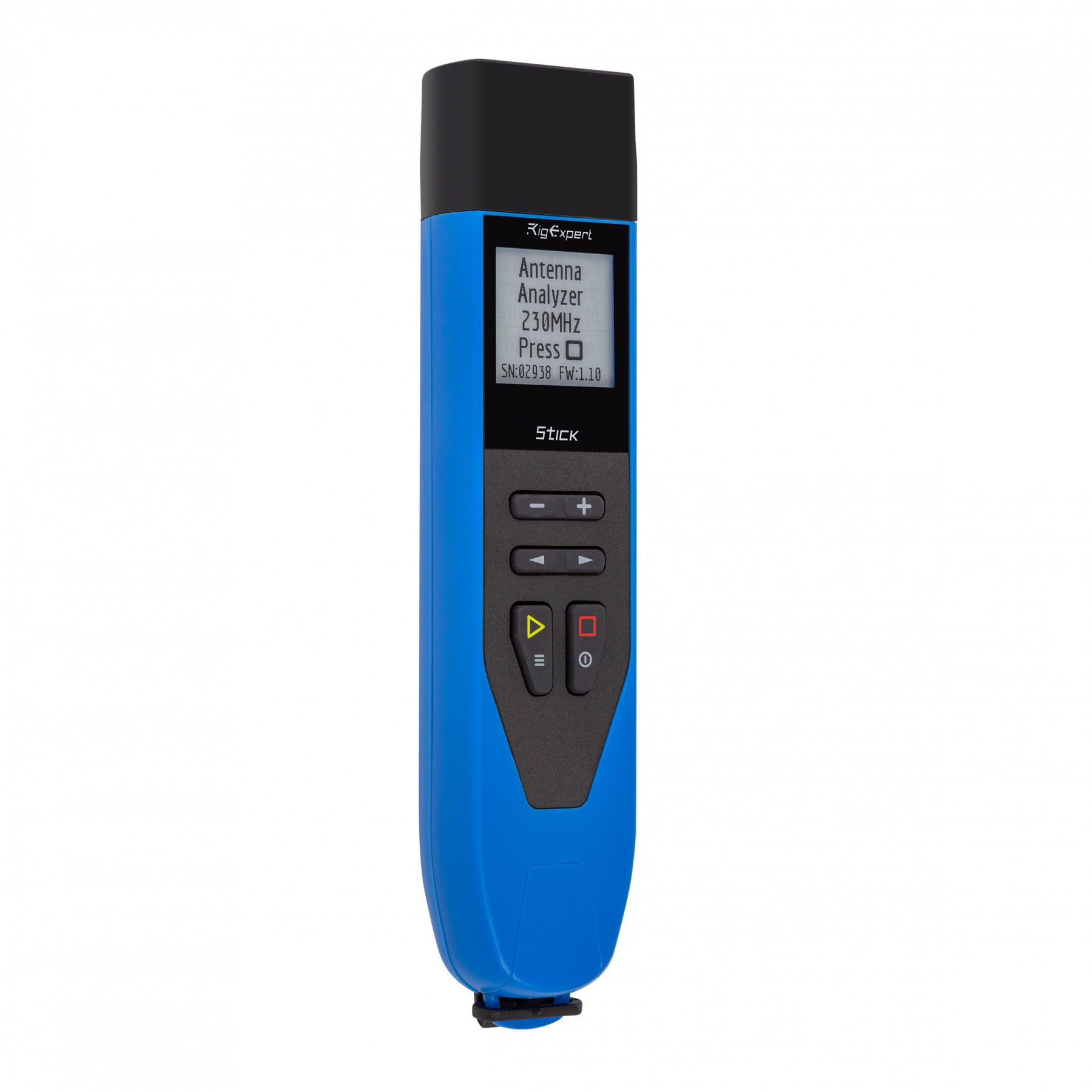

НВЧ Аналізатор Stick 230

Checking and adjusting antennas
Measurement of all main parameters of cables, feedlines, filters, and other
16 hours of work from one charge
Bluetooth
Compact and lightweight
Splash and dustproof case
Using both in the home and in the field
Frequency range
0.1 to 230 MHz
Frequency entry
1 kHz
Measurement for systems
12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0… 10000, -10000… 10000
Display modes
Multé (a quick check of multiband antennas), SWR chart, 100 points, SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power

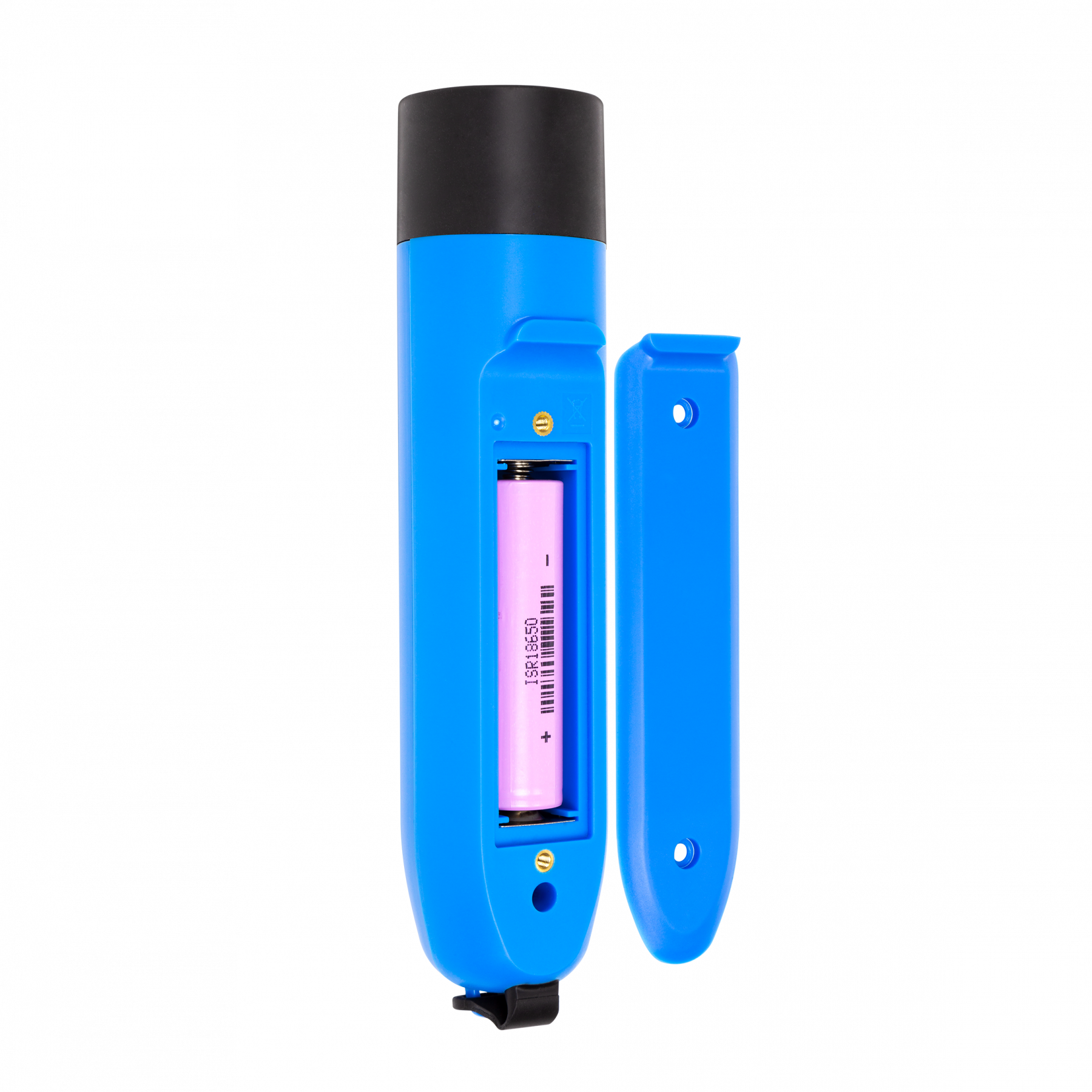

One lithium-ion battery 3.7 V type 18650, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources, Сharge time: 3 hours when using a charger
Interface
2 × 3 keys on the waterproof keyboard, Menus and help screens in English (by default), Japanese, Monochrome electronic paper display, 200 × 200, USB connection to a personal computer, v.4.2 BLE Single Mode, Class B
Dimensions
185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
Operating temperature
-15° … 40 ° C (5 … 104 ° F)
Weight
185 grams (6.5 Oz) with battery

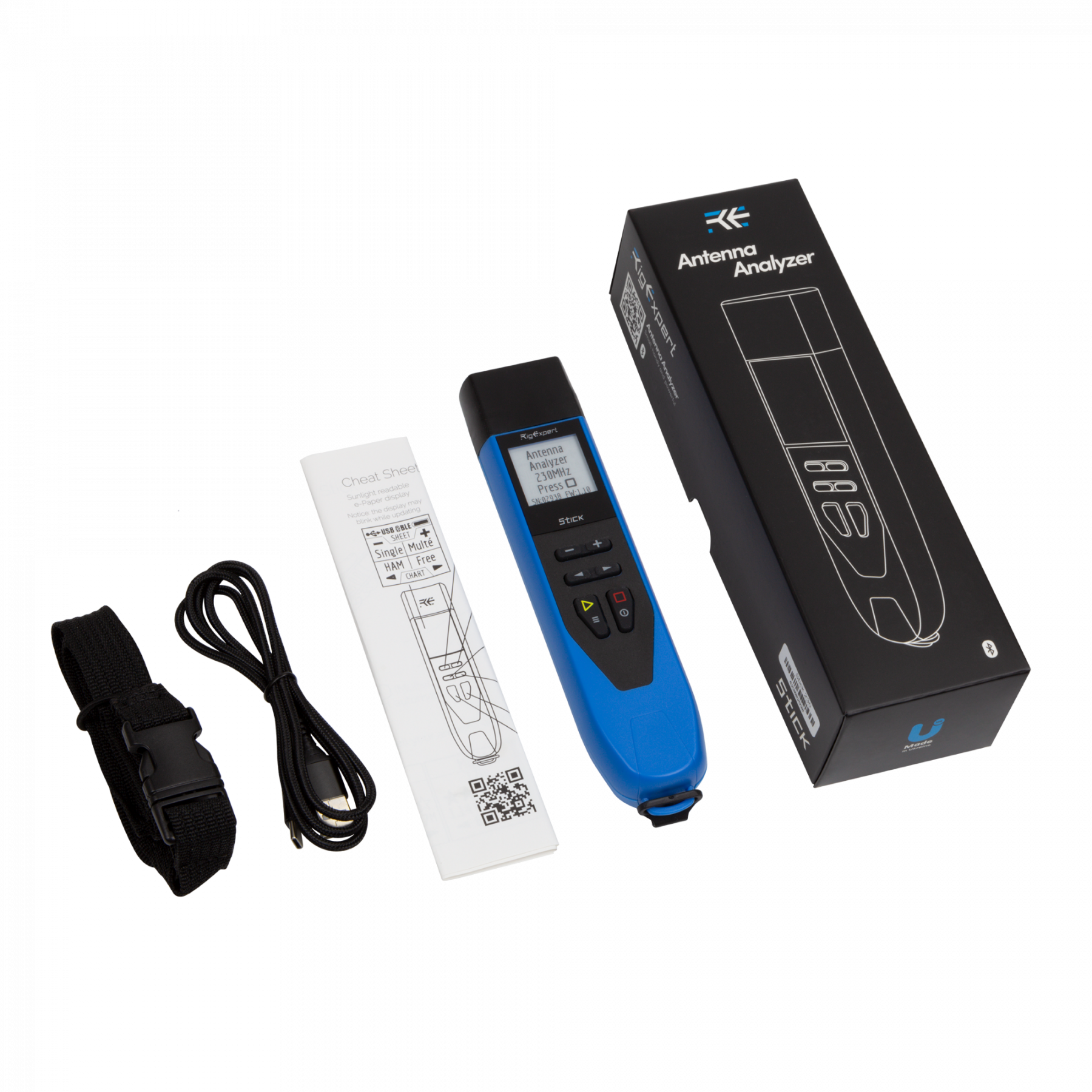

Accessories inside the box
Lanyard, Quick start guide, USB cable
GTIN-13
4820185420259
Note
Specifications are subject to change without notice, Мade in Ukraine
