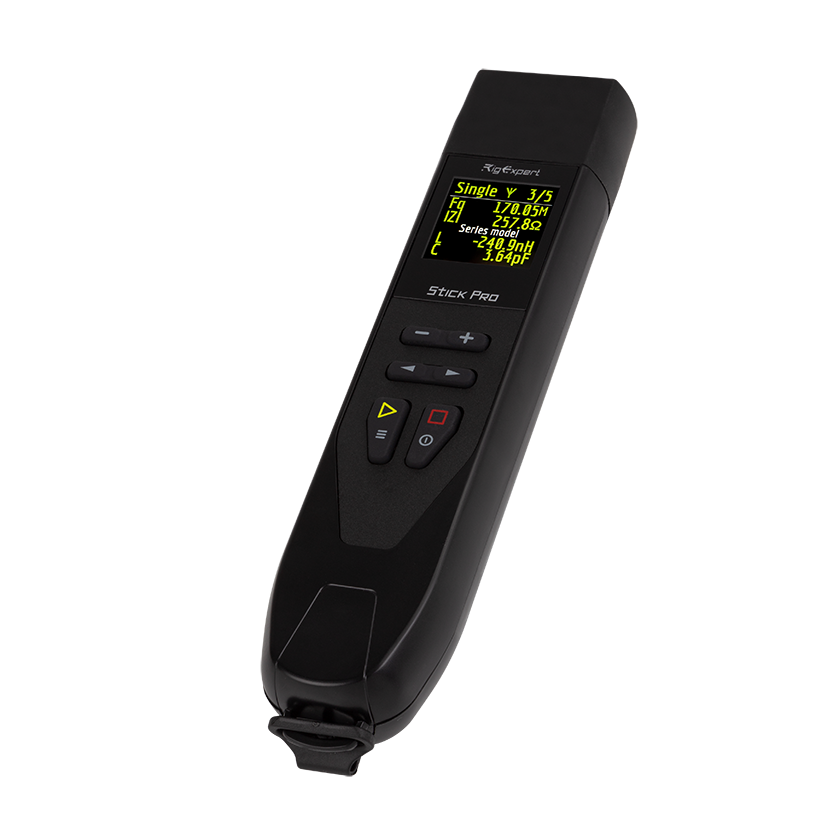

УВЧ Аналізатор Stick Pro

Checking and adjusting antennas
Measurement of various parameters of cables, feedlines, filters, and other
color TFT, 220 * 220 pixels
intuitive interface and built-in helper
Bluetooth
16-hour runtime, one charge
Compact and lightweight
Splash and dustproof case
Using both in the home and in the field
Frequency range 0.1 to 600 MHz
Frequency entry 1 kHz
Measurement for systems
12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0… 10000, -10000… 10000

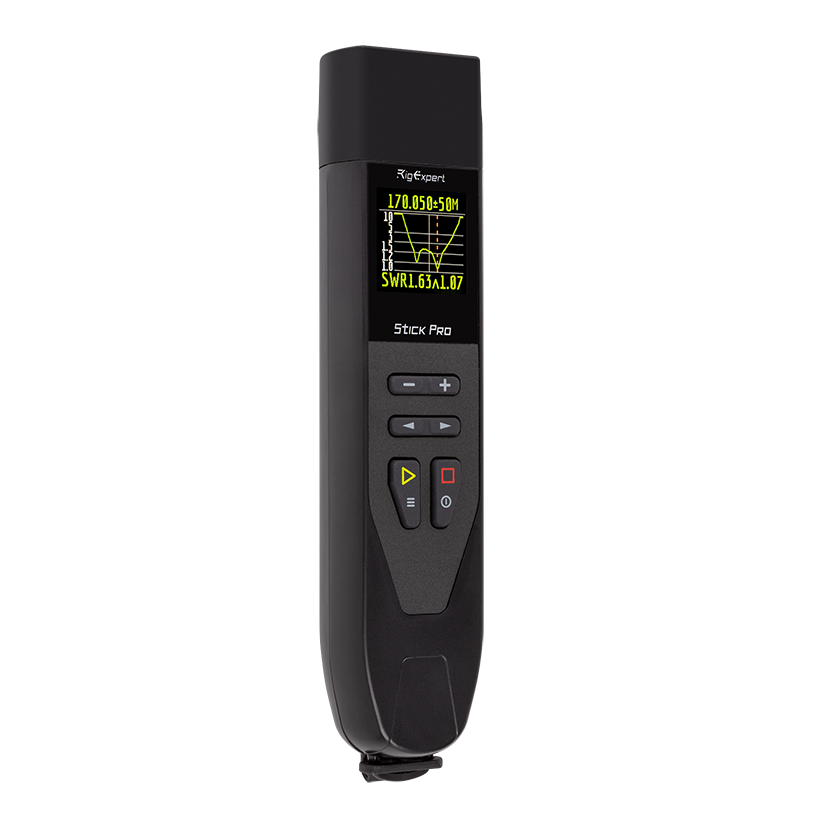

Display modes
Multé (a quick check of multiband antennas), SWR chart, 100 points, SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power

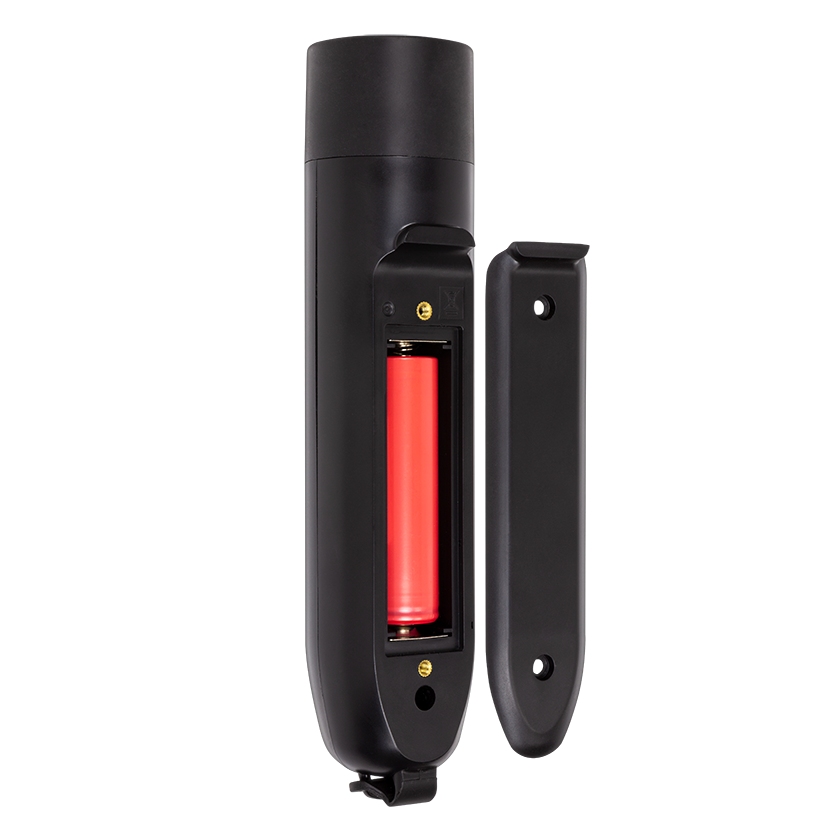

One lithium-ion battery 3.7 V type 18650, When the analyzer is connected to a PC or a DC adapter with USB socket,
it takes power from these sources, Сharge time: 3 hours when using a charger
Interface
2 × 3 keys on the waterproof keyboard, 290×220 color TFT display, Menus and help screens in English (by default),
Japanese, USB connection to a personal computer, v.4.2 BLE Single Mode, Class B
Operating temperature 0…40 °C (32…104 °F)
Weight 185 grams (6.5 Oz) with battery

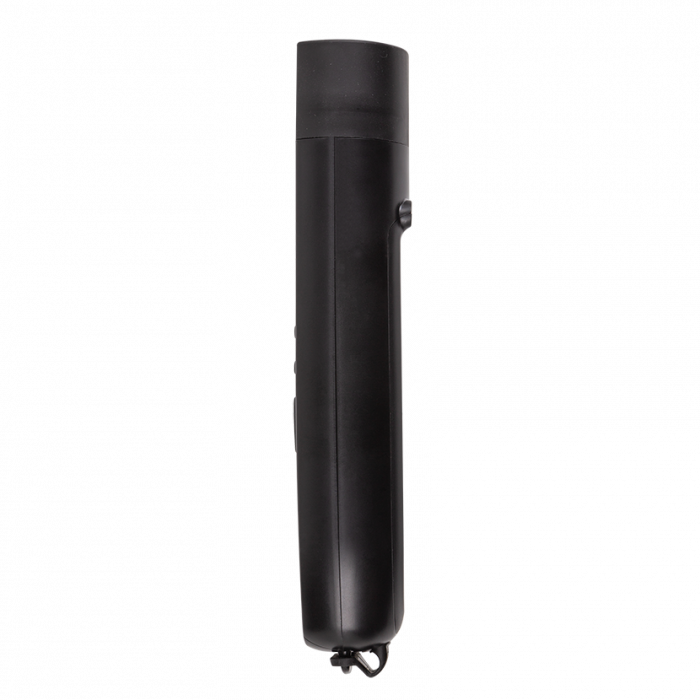

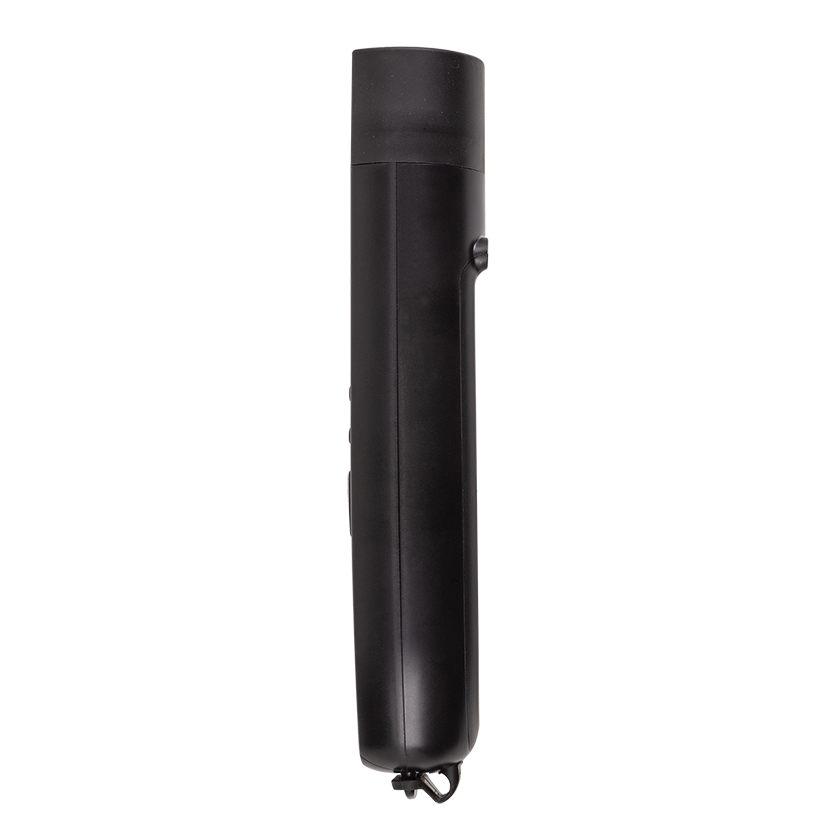

Dimensions 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
GTIN-13
4820185420280

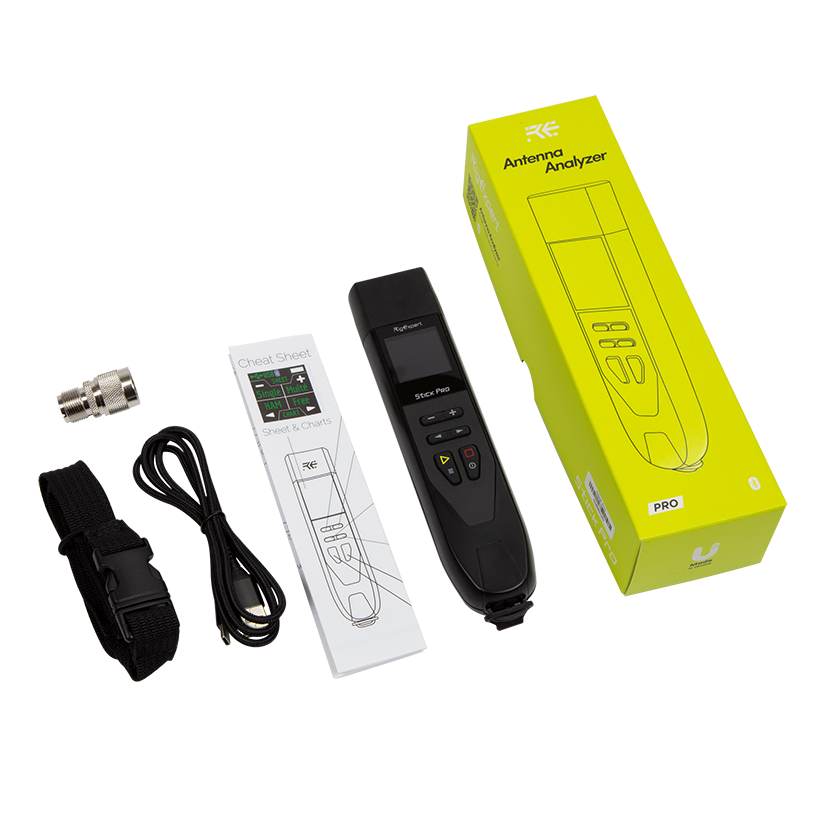

Accessories inside the box
Quick-start guide, Neck strap, USB cable, N-type to UHF adapter
Note
Specifications are subject to change without notice, Мade in Ukraine
