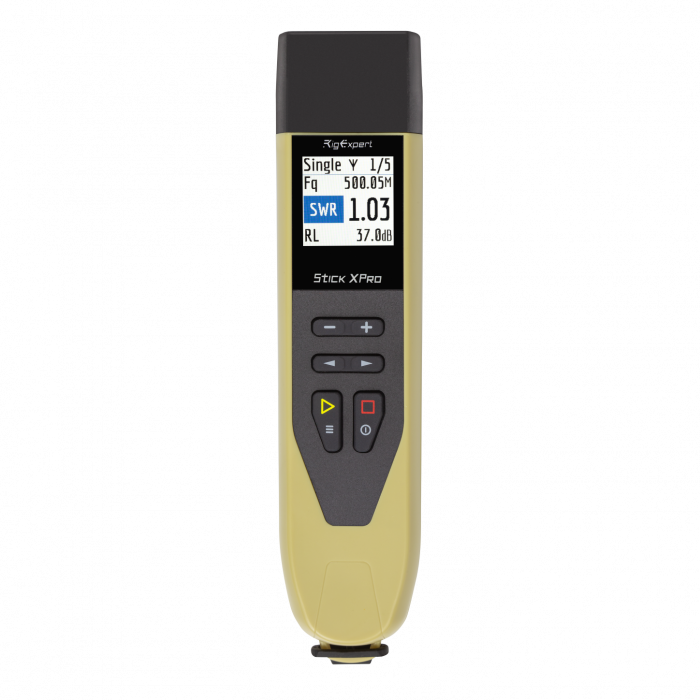

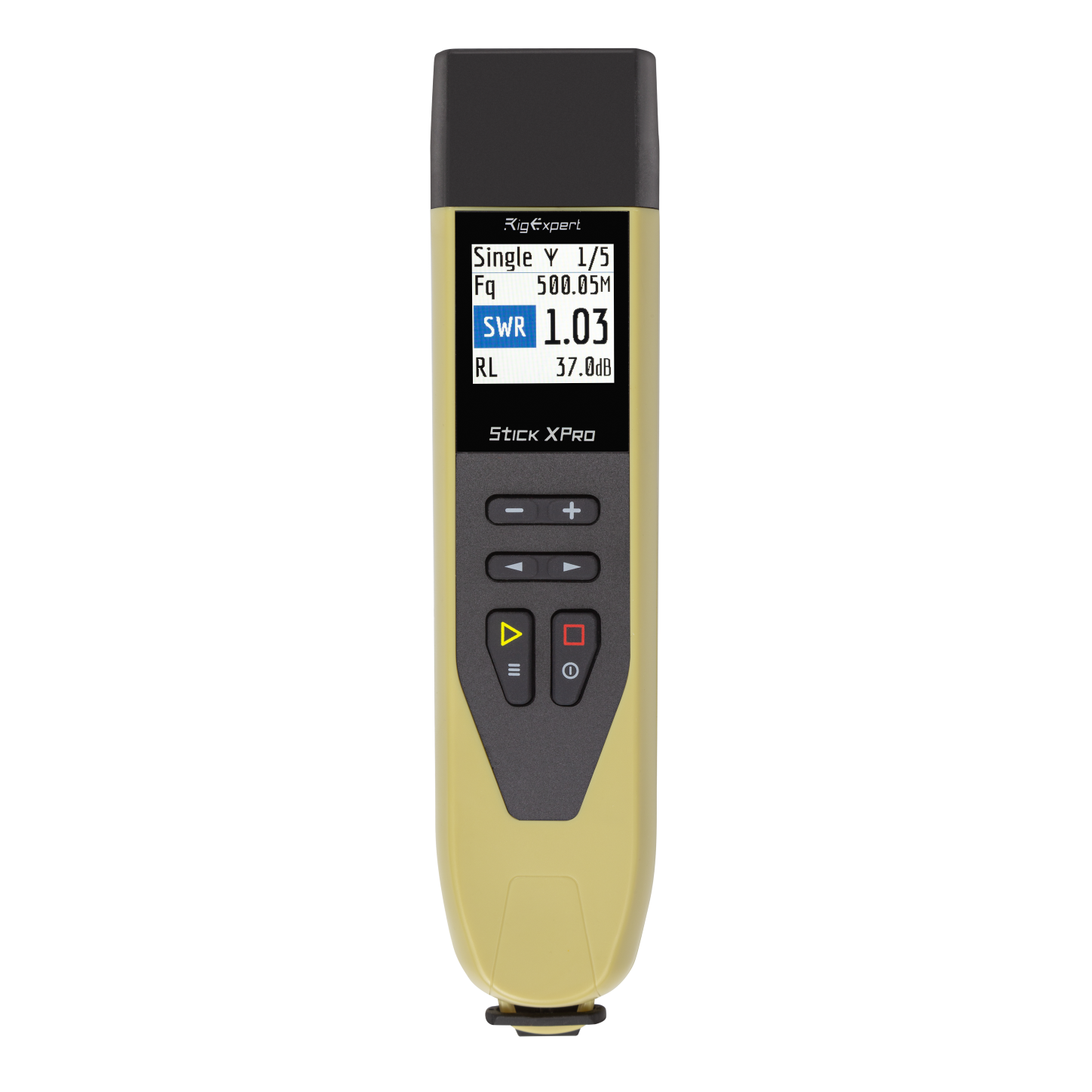

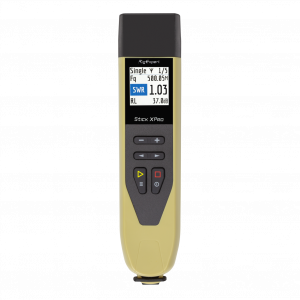

УВЧ Аналізатор Stick XPro

Checking and adjusting antennas
Measurement of various parameters of cables feedlines, filters, and other
1/4-λ, 1/2-λ coaxial stubs setup
Finding cable fault
Factory calibration
Сolor TFT display
User-friendly interface
USB Type-C for PC
Bluetooth
16-hour runtime, one charge
Pocket-size
Splash and dustproof case
Operation temperature from -20° to 55°C
Frequency range 0.1 to 1000 MHz
Frequency entry 1 kHz
Measurement for systems
12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0… 10000, -10000… 10000
Display modes

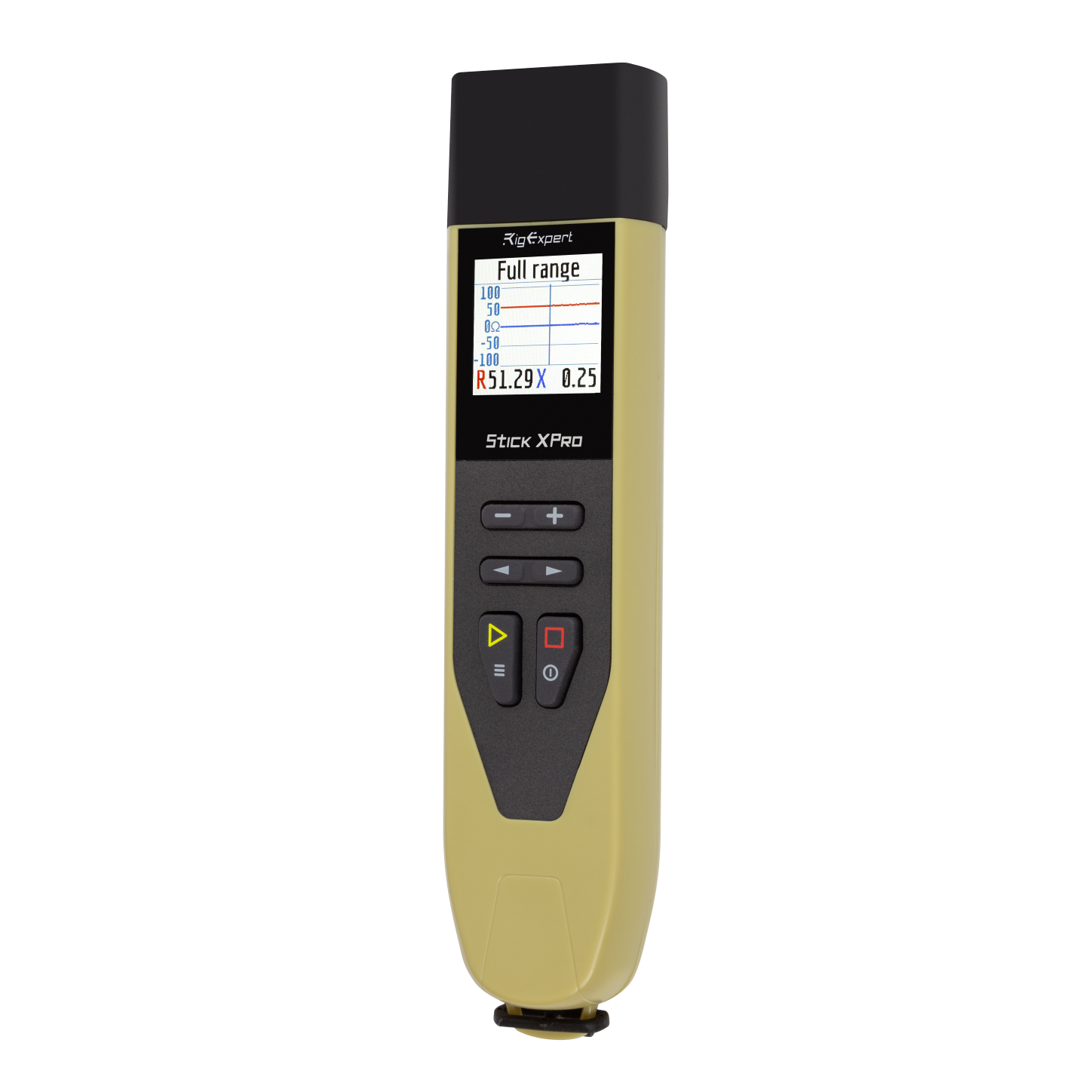

HAM (a quick check of single band antenna), Multé (a quick check of multiband antennas), OSL calibration mode, R, X chart, Return loss chart, Single (measure SWR, |Z|, R, X, C, L, RL, Mag&Phase), SWR chart, TDR (distance to fault), Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power

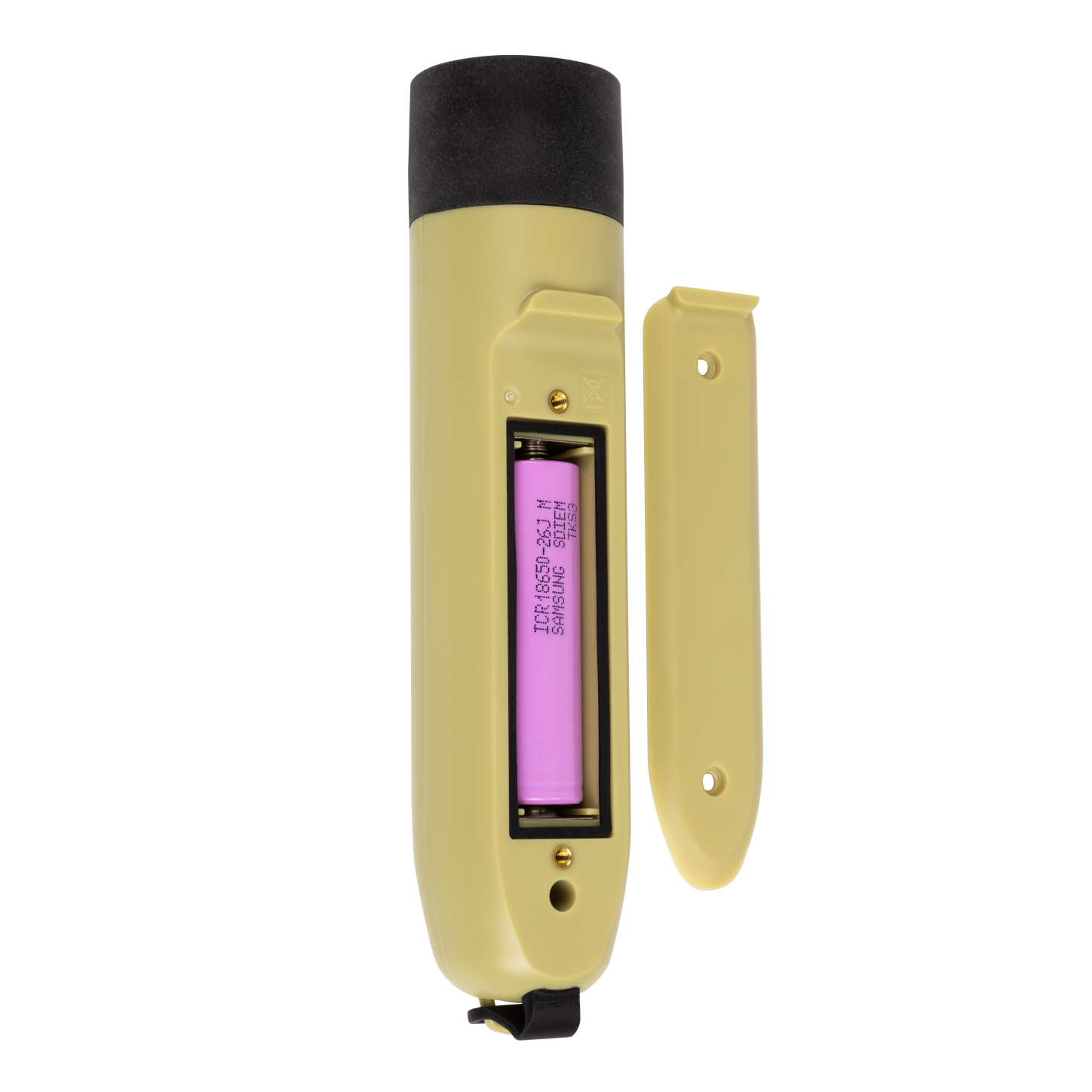

One lithium-ion battery 3.7 V type 18650, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources, Сharge time: 3 hours when using a charger
Interface
2 × 3 keys on the waterproof keyboard, 290×220 color TFT display, Menus and help screens in English (by default), Japanese, USB connection to a personal computer
Operating temperature -20°- 55°C (-4°-131°F)
Weight 185 grams (6.5 Oz) with battery
Dimensions 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)

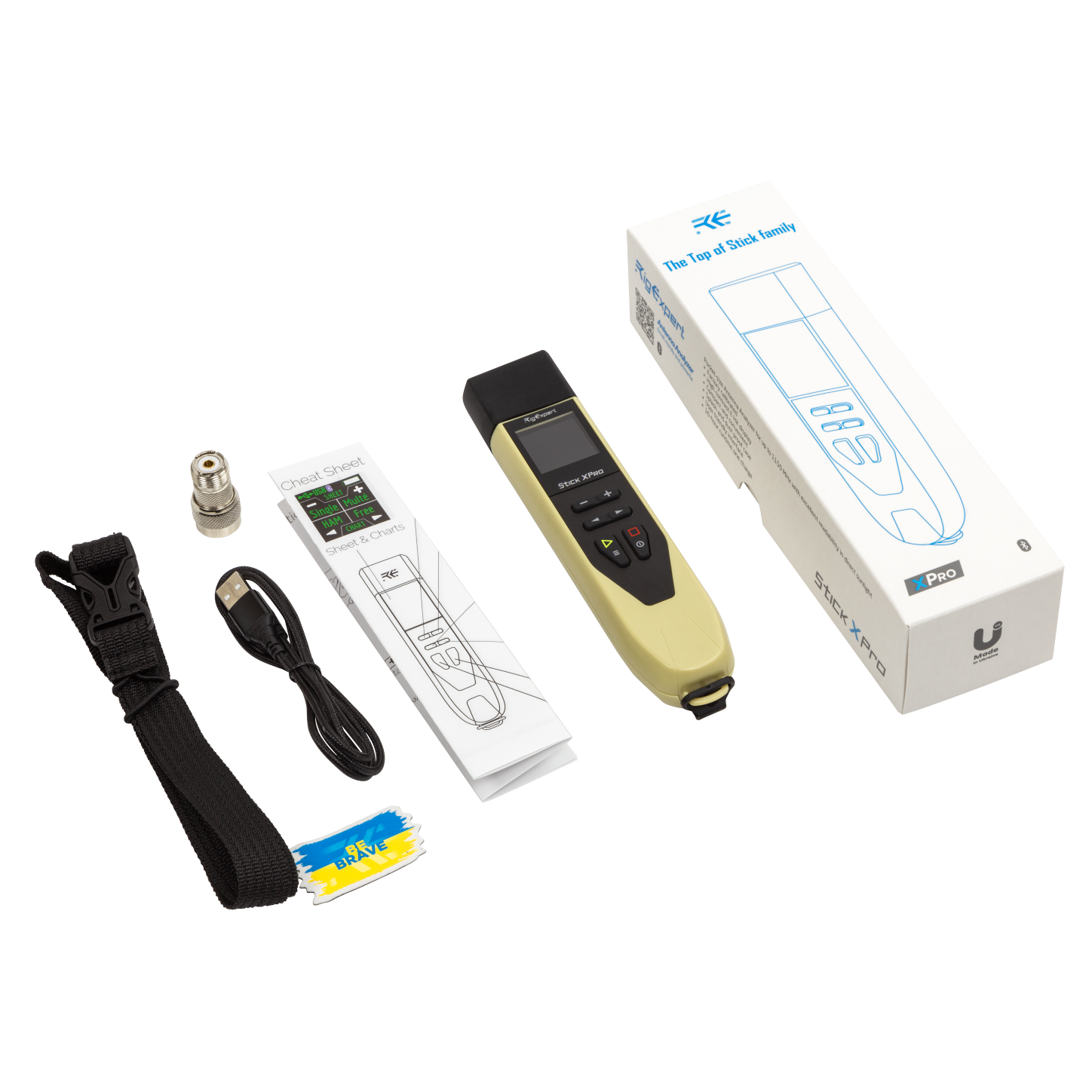

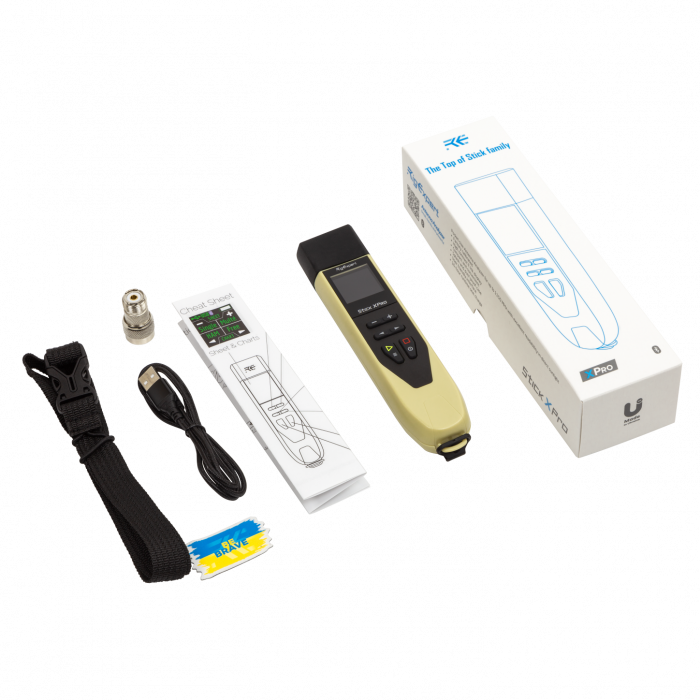

Accessories inside the box
Quick-start guide, Neck strap, USB cable, N-type to UHF adapter
GTIN-13
4820185420365
Note
Specifications are subject to change without notice, Мade in Ukraine
