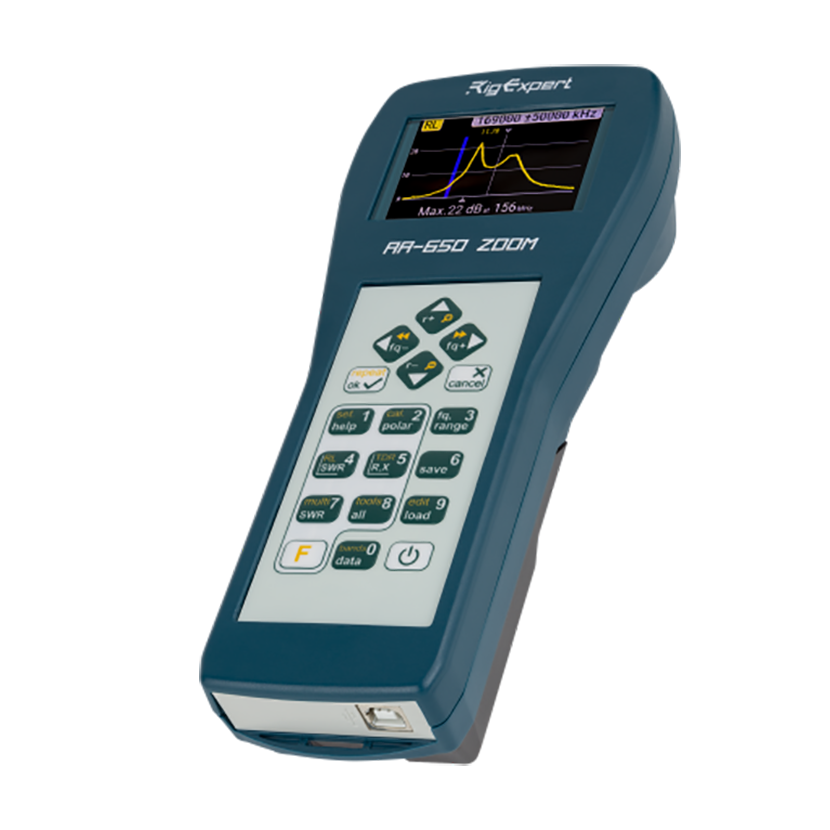

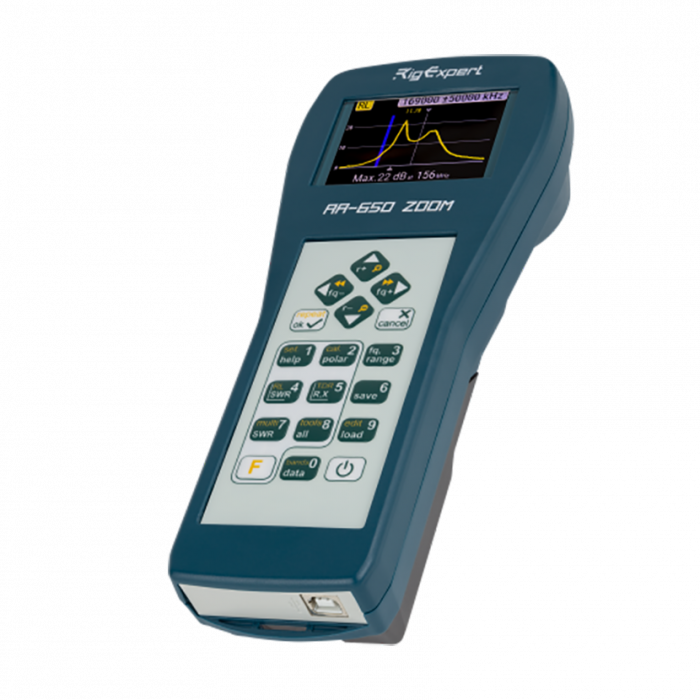

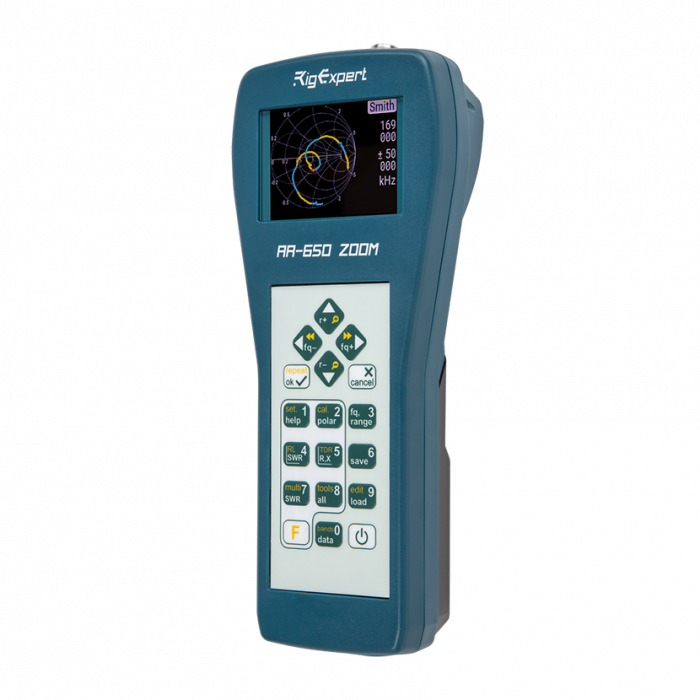

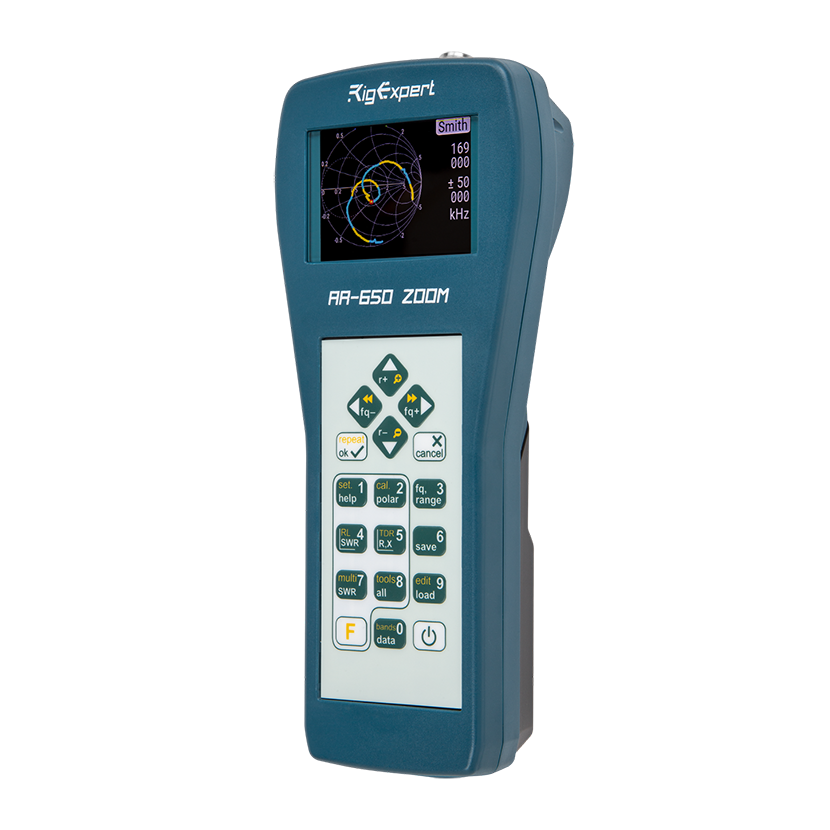

УВЧ Аналізатор AA-650 ZOOM

Rapid check-out of an antenna
Tuning an antenna to resonance
Comparing the characteristics of an antenna before and after specific events (rain, hurricane, etc.)
Making coaxial stubs or measuring their parameters
Cable testing and fault location, measuring cable loss and characteristic impedance
Measuring capacitance or inductance of reactive loads
Built-in Helper at the push of a button
A built-in ZOOM for any detail of charts
Bluetooth LE for communication with mobile app
Frequency range 0.1 to 650 MHz
Frequency entry 1 kHz
Measurement for systems
25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0…2000, -2000…2000
Display modes
Optional open-short-load calibration, R, X chart, 20 to 500 points, Return loss chart, 20 to 500 points, Smith chart, 20 to 500 points, SWR at single or multiple frequencies, SWR chart, 20 to 500 points, SWR, return loss, R, X, Z, L, C at single frequency, TDR chart (Time Domain Reflectometer), Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power

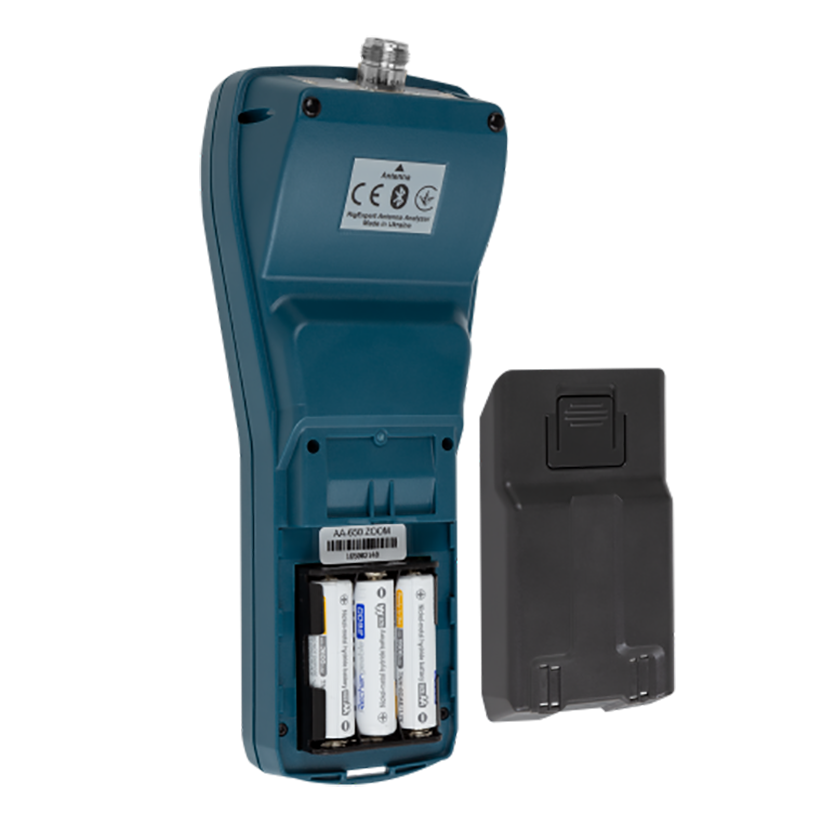

Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used, Three 1.2V Ni-MH batteries, type AA, Three 1.5V alkaline batteries, type AA, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
320×240 color TFT display, 6x3 keys on the water-proof keypad, Bluetooth Specification v.4.2, LE, Menus and help screens in English (by default), Japanese, Ukrainian, Polish, Spanish and German, USB connection to a personal computer
Operating temperature 0…40 °C (32…104 °F)
Weight 450 g (15.9 oz)
Dimensions 100 × 230 × 55 mm, (4 × 9 × 2 in)

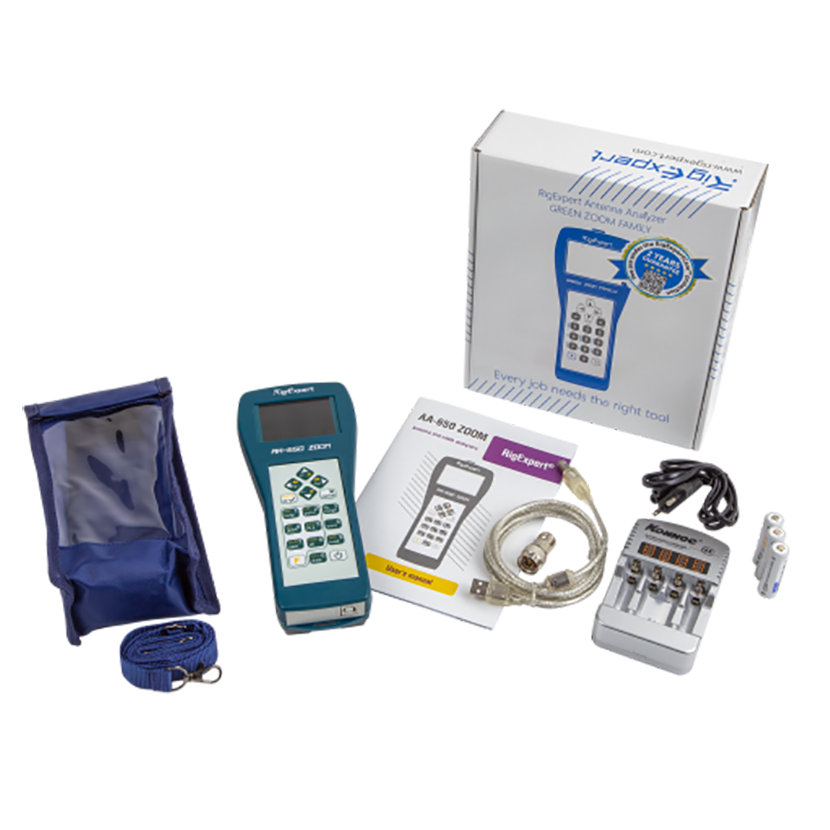

Accessories inside the box
Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter
GTIN-13
4820185420297
Note
Specifications are subject to change without notice, Мade in Ukraine
NCAGE Code
A37ZJ
