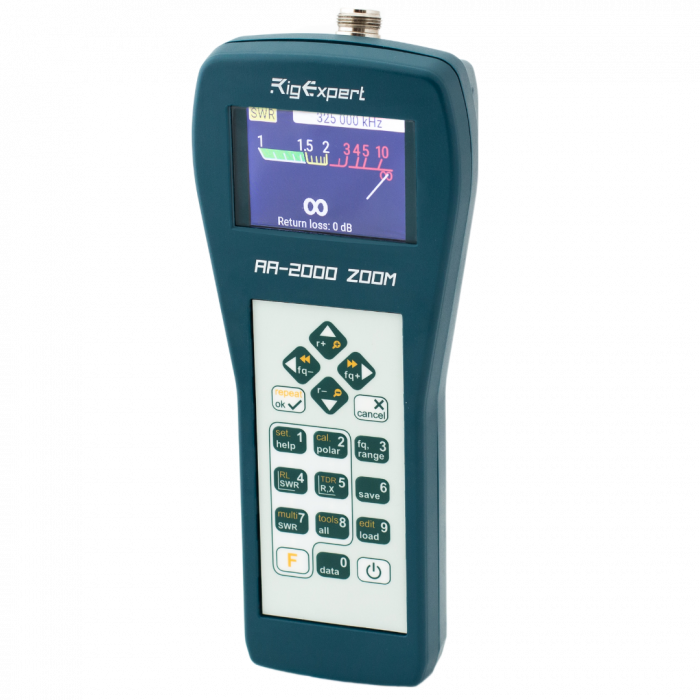

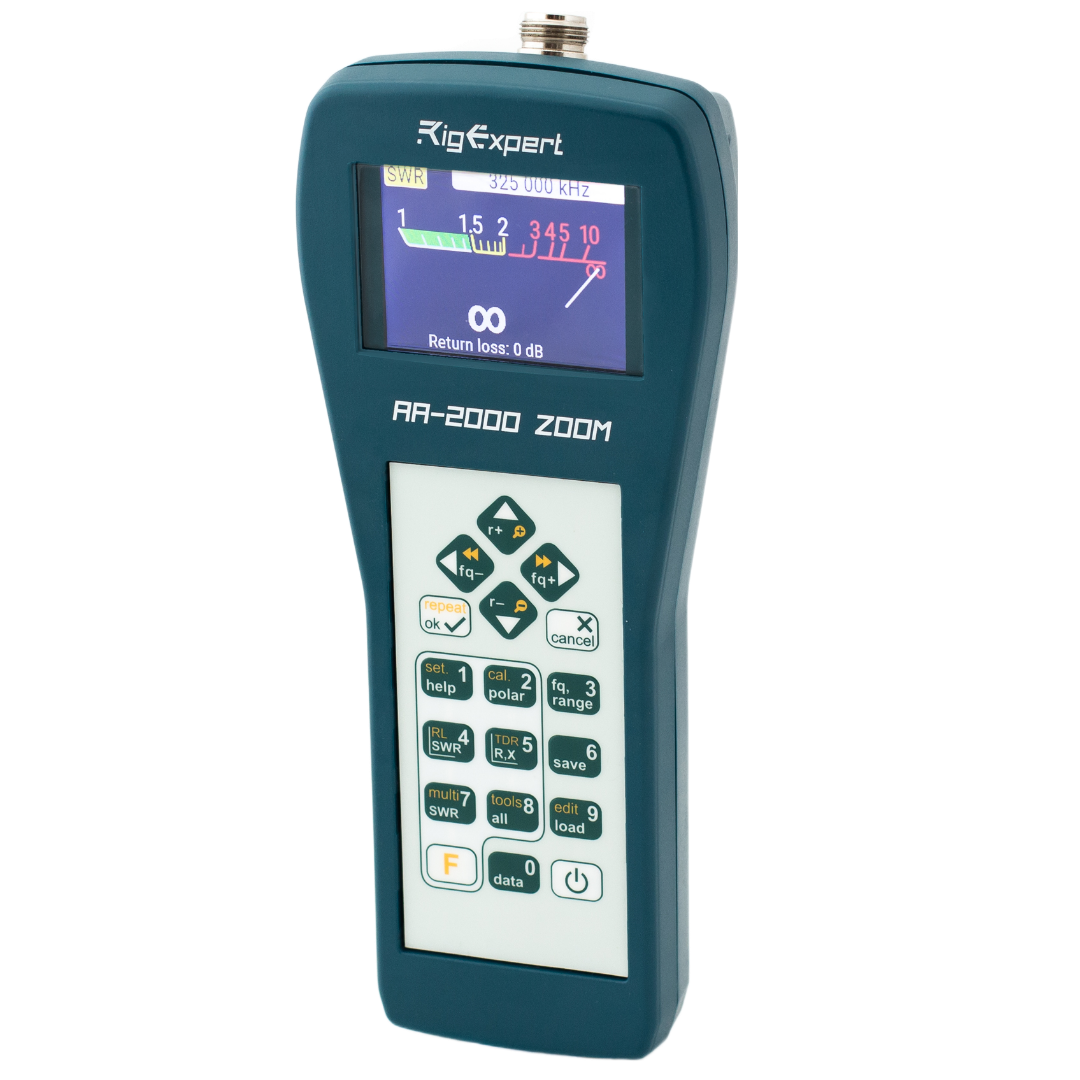

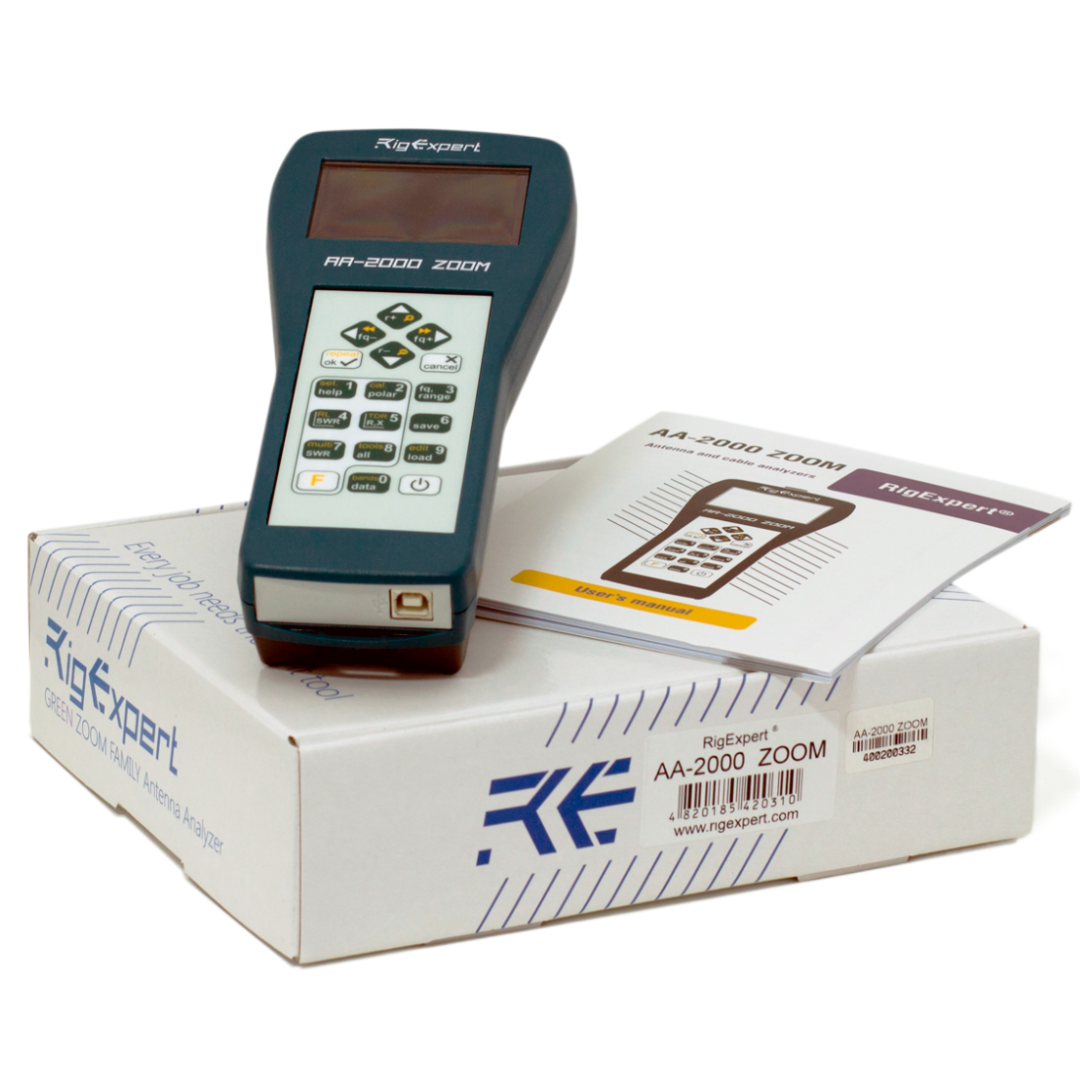

УВЧ Аналізатор AA-2000 ZOOM

Checking and adjusting antennas
Сable Length and Velocity Factor measurements,
1/4-λ, 1/2-λ coaxial stubs setup
Finding cable fault
Measurement of parameters of other RF elements
- Capacitors and inductors
- Transformers
- Traps
Built-in Helper at the push of a button
A built-in ZOOM for any detail of charts
Up to three alkaline or rechargeable batteries with voltage from 1.2V to 3.7V
Bluetooth LE for communication with mobile app
Frequency range 0.1 to 2000 MHz
Frequency entry 1 kHz
Measurement for systems
25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0…2000, -2000…2000
Display modes
Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé), Optional open-short-load calibration, R, X chart, Smith chart, SWR at single or multiple frequencies, SWR chart, SWR, return loss, R, X, Z, L, C at single frequency, TDR chart (Time Domain Reflectometer), User OSL: 10 profiles available
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power
Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used, Three 1.2V Ni-MH batteries, type AA, Three 1.5V alkaline batteries, type AA, Three 3.7V LiPo batteries, 14200, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
6x3 keys on the water-proof keypad, 800×480 color Blanview® display, Bluetooth Specification v.4.2, LE, Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German, USB connection to a personal computer
Operating temperature 0…40 °C (32…104 °F)
Weight 442 g (15.6 oz)
Dimensions 100 × 230 × 55 mm, (4 × 9 × 2 in)

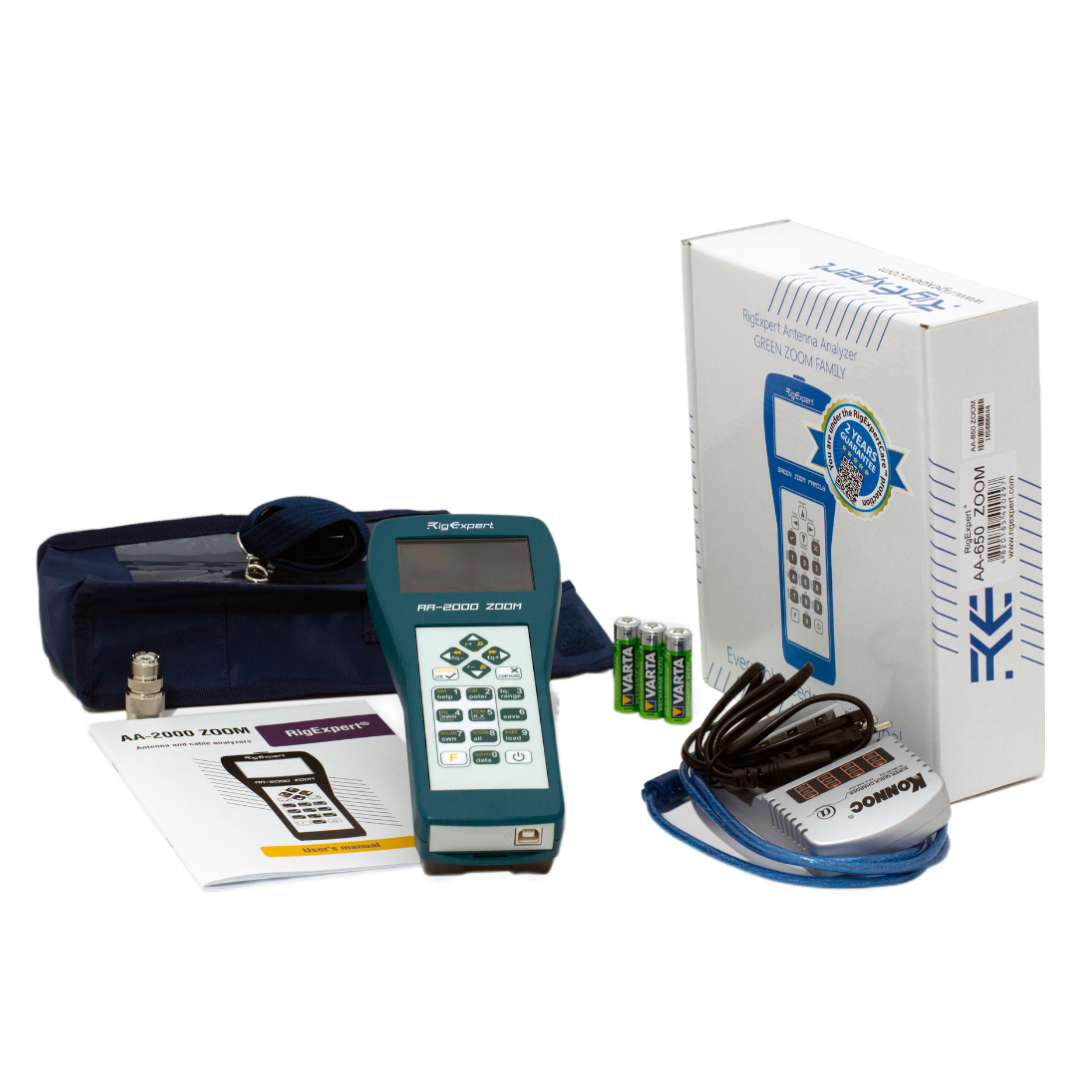

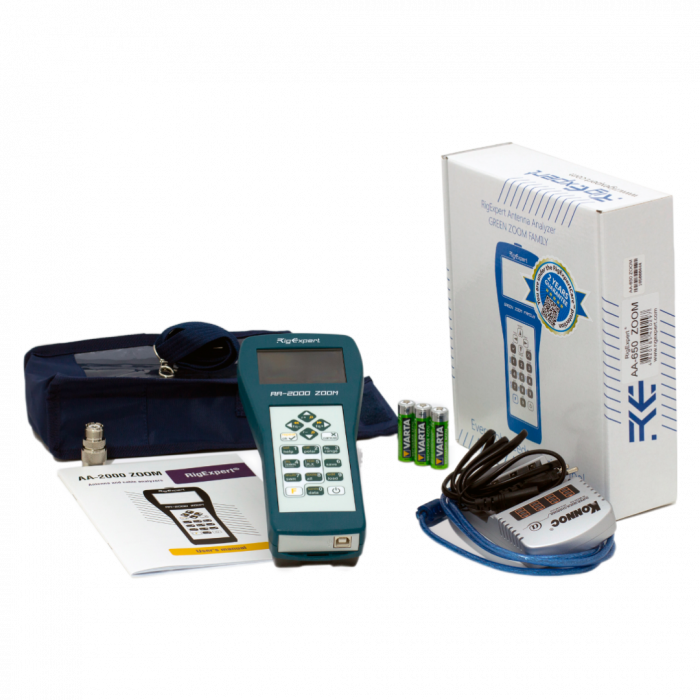

Accessories inside the box
Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter
GTIN-13
4820185420310
Note
Specifications are subject to change without notice, Мade in Ukraine
