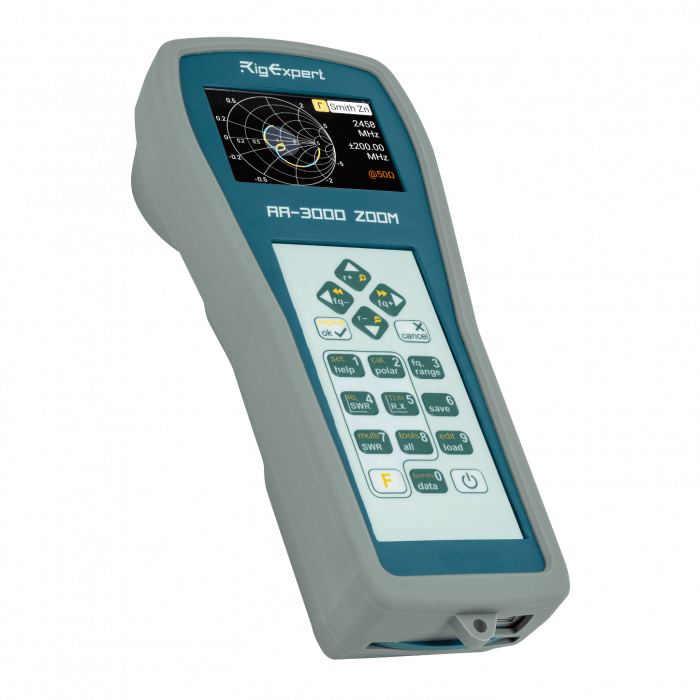

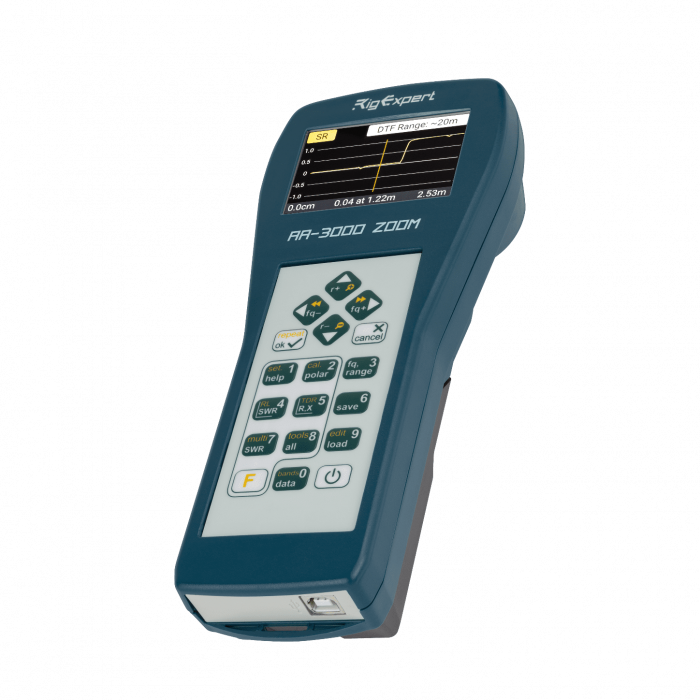

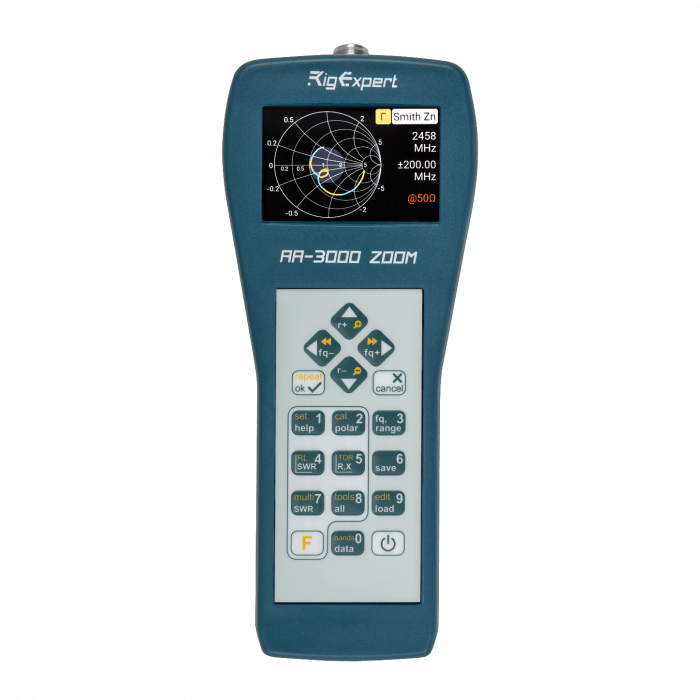

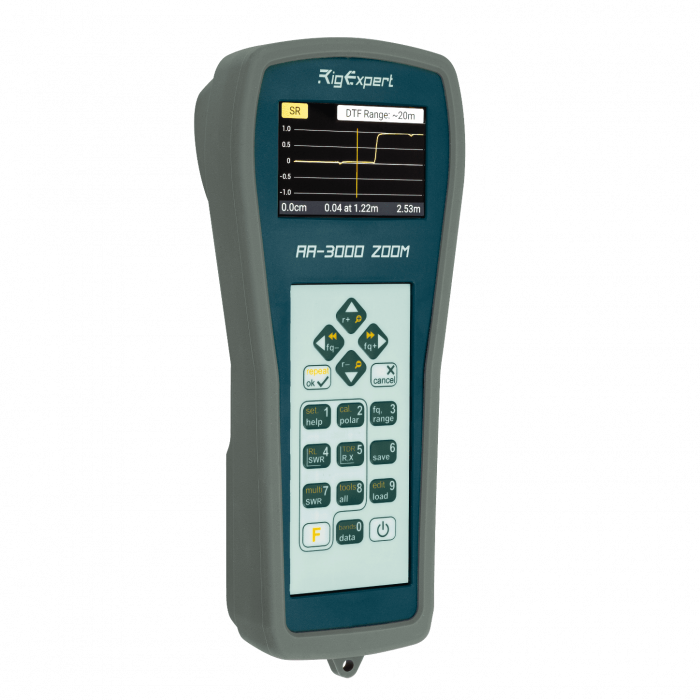

УВЧ Аналізатор AA-3000 ZOOM

Perfect for amateur, professional, and commercial radio

Rapid check-out of an antenna

Tuning an antenna to resonance

Comparing characteristics of an antenna before and after a specific event (rain, hurricane, etc.)

Making coaxial stubs or measuring their parameters

Cable testing and fault location, measuring cable loss and characteristic impedance

Measuring capacitance or inductance of reactive loads

Determining the parameters of other devices

Factory calibration

Big sunlight-readable Blanview® display

A built-in ZOOM for any detail of charts

Multilingual intuitive interface

Help at the push of a button with the built-in Helper

Storage of OSL calibration data for future use

Bluetooth LE for communication with mobile app

Frequency range 0.1 to 3000 MHz
Frequency entry 1 kHz
Measurement for systems
25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
1 to 10 in chart modes, 1 to 100 in numerical modes
R and X range
0…2000, -2000…2000
Display modes
Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement,
LC meter, Multé), Optional open-short-load calibration, R, X chart, Return loss chart, Smith chart,
SWR at single or multiple frequencies, SWR chart, SWR, return loss, R, X, Z, L, C at single frequency,
TDR chart (Time Domain Reflectometer), User OSL: 10 profiles available
RF output
Connector type: N, Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square
Power
Max. 5 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used,
Three 1.2V Ni-MH batteries, type AA, Three 3.7V LiPo batteries, 14200,
When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
6x3 keys on the water-proof keypad, 800×480 color Blanview® display, Bluetooth Specification v.4.2, LE, Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German, USB connection to a personal computer
Operating temperature 0…40 °C (32…104 °F)
Weight 442 g (15.6 oz)
Dimensions 100 × 230 × 55 mm, (4 × 9 × 2 in)
Note
Specifications are subject to change without notice, Мade in Ukraine
