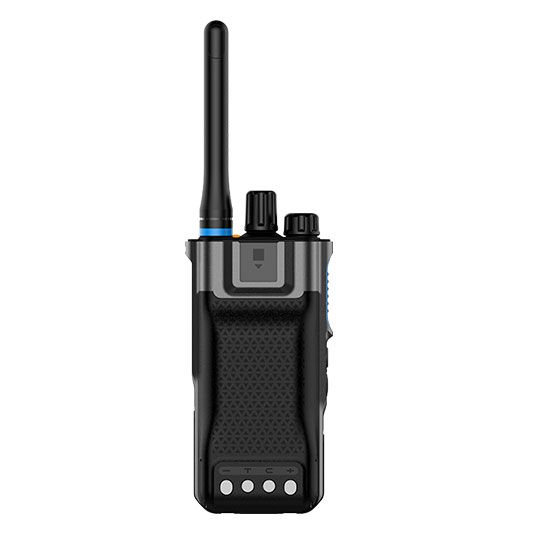

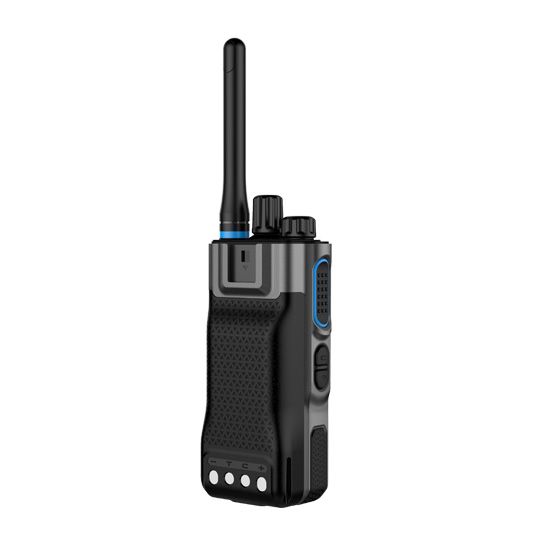

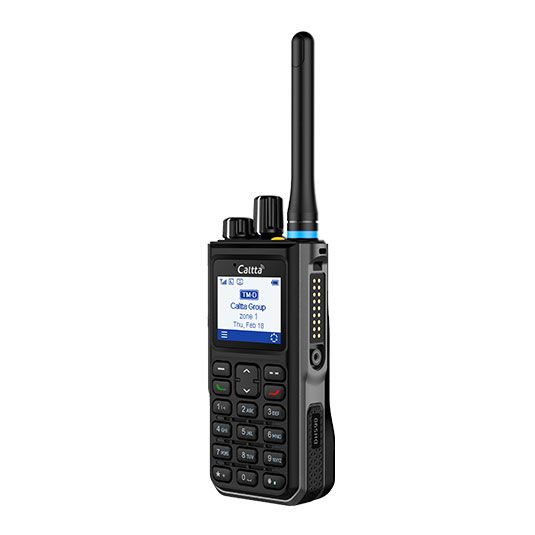

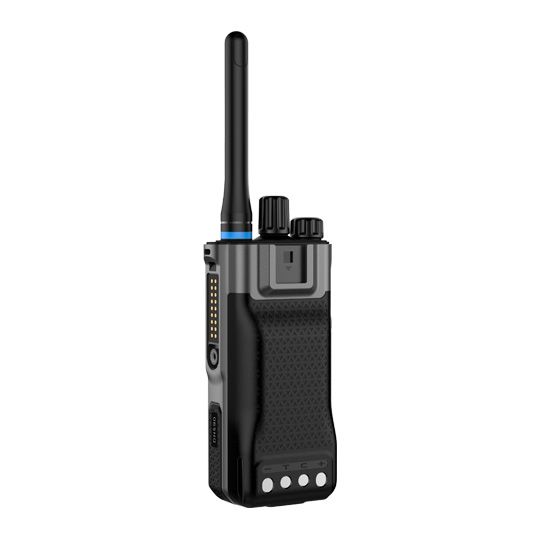

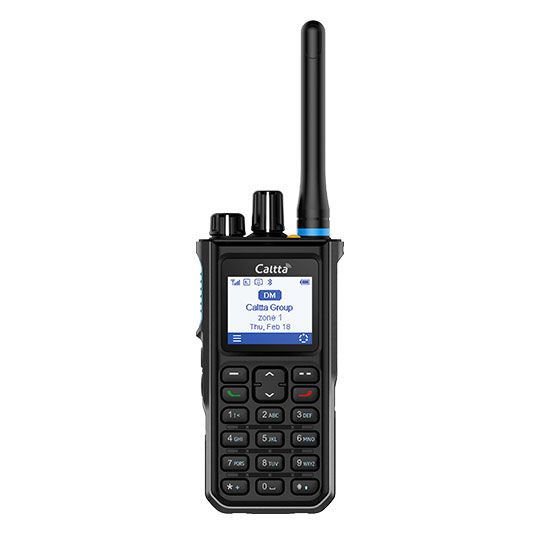

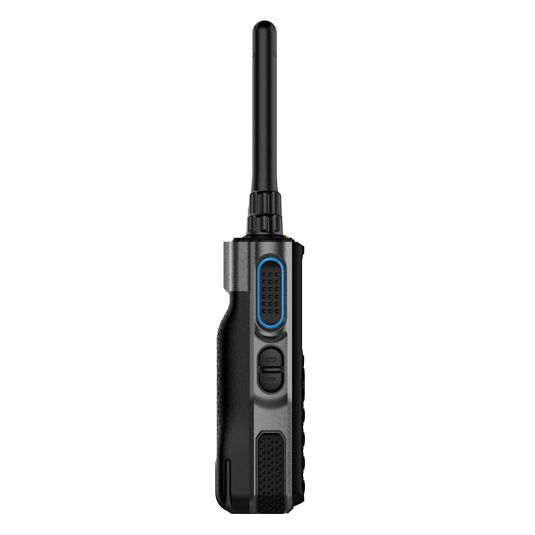

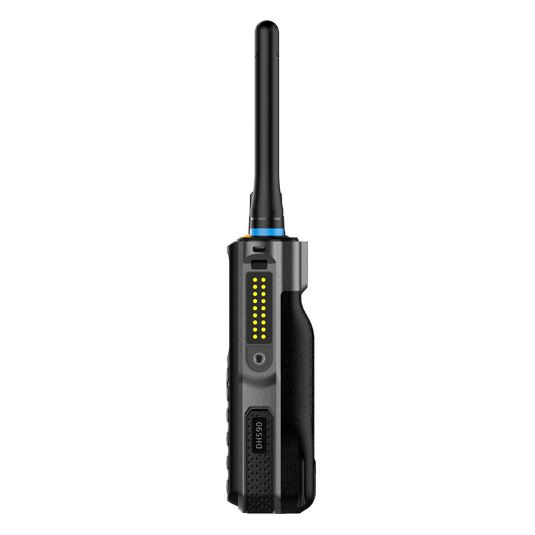

Caltta DH590 UHF DMR аналогово-цифрова радіостанція
- Доставка "Укрпошта"
- СамовивізБезкоштовно
- Доставка "Самовивіз"
- Доставка "Нова Пошта". Безкоштовно при вартості замовлення від 100000 грн.
- Оплата по реквізитам
- На платіжну карту
- Безготівкойвий розрахунок (Юр. особи)
- Електронні платежі
Features of DH590 DMR Portable Radio
-
Richer Operation
The 1.75-inch LCD screen and full keyboard bring users a richer operation experience.
-
Easy to Operate
The big-sized PTT button and the double-knob design at the top bring easy operation.
-
Analog and Digital Compatible
Digital-analog conventional compatibility allows DH590 to quickly switch between digital and analog modes.
-
Loud and Clear Voice
Carefully optimized audio design, combined with an excellent audio encoder, ensures loudness and maximizes the fidelity of the voice. Even in a noisy environment, it can accurately identify the caller and transmit the content clearly.
-
Large Capacity Battery
With a 2500mAh large-capacity battery, DH590 can operate continuously for at least 20 hours in digital mode, meeting the needs of long work shifts.
-
Reliable Quality
IP67 protection level, suitable for outdoor work. Competent in various harsh working environments with shock, vibration, and solar radiation.
-
Full Encryption
Support 40/128/256bit basic private encryption to improve call security and avoid information leakage.
-
Dispatching Service
DH590 DMR base radio supports multiple dispatching services, such as registration, radio check, lone worker, and remote stun/revive to realize remote dispatching and meet daily work management needs.
-
Rich Services
Based on an excellent platform, DH590 provides abundant services, such as real-time time display, VOX, and roaming; and it can be connected to the dispatch console for remote management.
Specifications of DH590 DMR Portable Radio
General | |
Frequency |
UHF1: 400-470MHz |
Channel Capacity | 512 |
Zone Capacity | 32 |
Channel Spacing | 12.5KHz/20KHz/25KHz |
Frequency Stability | ±0.5ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2500mAh(standard) |
Battery Life | Analog: 16 Hours Digital: 20 Hours (5: 5: 90 working cycle, high power transmission) |
Size (H x W x D) | 116.4x54.5x35.5mm (with 2500mAh battery, without antenna) |
Weight | 285g (with 2500mAh battery and antenna) |
Screen | 1.75-inch LCD, 160*128 |
Vocoder | AMBE++ |
Layout | Top: volume/switch knob x1, channel knob x1 Side: PTT key x1, programmable key x2, SOS key x1 A full keypad |
External Interface | 18-pin waterproof interface, support audio/programming |
Recording | Optional |
VOX | Support |
Roaming | Support |
Real-time Clock | Support |
Encryption | Support 40/128/256bit basic private encryption |
Transmitter | |
RF Power Output (Low) | 1W |
RF Power Output (High) | 4W (UHF1) / 5W (VHF) |
FM Modulation | 12.5KHz: 11K0F3E / 20KHz: 14K0F3E / 25KHz: 16K0F3E |
4FSK Digital Modulation | 12.5KHz Data Only: 7K60FlD&7K60FXD 12.5KHz Voice Only: 7K60FlE&7K60FXE 12.5KHz Voice and Data: 7K60F1W |
Conducted/Radiated Emission | -36dBm ≤1GHz, -30dBm > 1GHz |
Modulation Limiting | ±2.5KHz @12.5KHz/±4KHz @20KHz/±5.0KHz @25KHz |
FM Hum and Noise | -40 [email protected] /-43dB@20KHz /-45 dB@25KHz |
Adjacent Channel Power | 60 [email protected] /70 dB @20/25KHz |
Audio Distortion | ≤3% |
Audio Response | + 1 ~-3dB(TIA603D) |
Receiver | |
Sensitivity (Analog) | 0.18uV(12dB SINAD) |
Sensitivity (Digital) | 0.18uV (5% BER) |
Adjacent Channel Selectivity | 60 [email protected]/70 dB@20/25KHz (TIA603A) [email protected] /70 dB@20/25KHz ( ETSI ) |
Intermodulation | 70 dB (TIA603D) 65 dB (ETSI) |
Spurious Rejection | 70 dB (TIA603D) 70 dB (ETSI) |
Blocking | 80dB(TIA603D) 84dB(ETSI) |
Co-channel Rejection | -12~0 dB @12.5KHz/-8~0 dB @20/25KHz |
Hum and Noise | -40 [email protected] /-43 dB@20KHz /-45 dB@2SKHz |
Rated Audio Power | 0.5W |
Max Audio Power | 2.0W |
Rated Audio Distortion | ≤3% |
Audio Response | + 1 ~-3dB (TIA603D) |
Conducted Spurious Emission | -57 dBm (TIA603D) |
Environmental | |
Operating Temperature | -30°C ~ +60°C |
Storage Temperature | -40°C ~ +85°C |
ESD | IEC 61000-4-2 (level 4) ±8kV (Contact) ±15kV (Air) |
Dust and Water Resistance | IP67 |
Reliability | According to MIL-STD-810 G |
-
Країна виробник:Китай
-
Інтерфейс:Бездротовий
-
Тип:Радіостанція портативна
-
Число каналів:512
-
Потужність:4
-
Дисплей:Так
-
Мінімальний діапазон використовуваних частот:400 МГц
-
Максимальний діапазон частот, що використовуються:470 Мгц
-
Стандарт:FM, DMR
-
Регулювання гучності:Регулювання+вимкнення
-
Гарантійний термін:12 міс
